Key Features
Interactive home menu with image preview for easy source selection
1-year free trial of BrightLink GoBoard collaborative whiteboard software
Up to 20,000-hour laser lifespan
Supports popular applications, such as Microsoft Office 365 and Google Workspace
Up to six points of finger touch
Wired PC connection
Automatic or manual calibration
Built-in 16W mono speaker
Epson 770Fi Overview

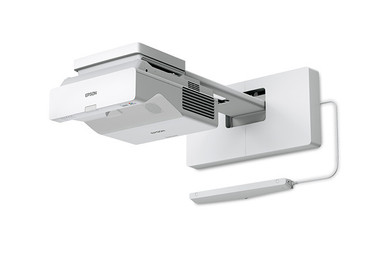

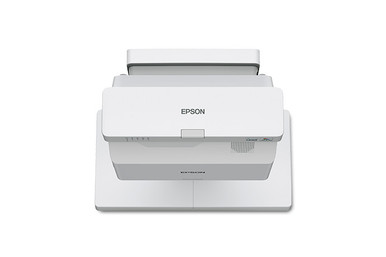

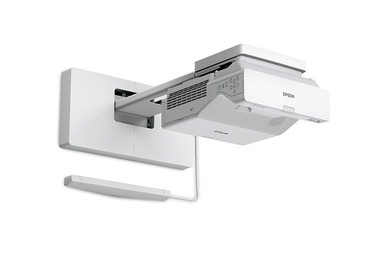

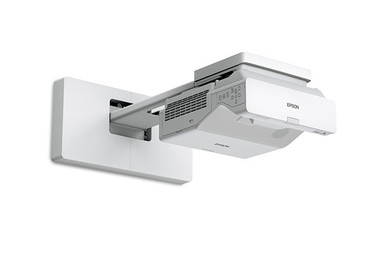

Turn any classroom wall or whiteboard into an interactive display when using the Epson BrightLink 770Fi 4100-Lumen Full HD Ultra-Short Throw Interactive Laser 3LCD Smart Projector in conjunction with an optional touch module. When mounted above your whiteboard or wall, the 3-chip 3LCD technology uses laser light to project a bright 4100-lumen 16:9 image up to 100" in size or an ultra-wide 16:6 or 21:9 image at 110". Either is large enough for up to eight users to collaborate at once with dual pen-enabled interactivity. With automatic pen calibration, you can be up and running in a new classroom quickly.
PC-Free Digital Whiteboard Without a PC, you can view shared whiteboard content with other select BrightLink displays, and you can draw, save, print, and email your own BrightLink 735Wi-created content. Compatible displays include 725Wi, 735Fi, 760Wi, 770Fi, 1480Fi and 1485Fi. Split Screen When projecting at an ultra-wide 16:6 or 21:9, you can take advantage of split screen support to simultaneously display the whiteboard and digital content. Share Content Wirelessly With support for Wi-Fi 5 (802.11ac) connectivity and Miracast technology, you can use the Epson iProjection software to wirelessly share content to and from up to 50 compatible connected devices. Additional Features
- Interactive home menu with image preview for easy source selection
- 1-year free trial of BrightLink GoBoard collaborative whiteboard software
- Up to 20,000-hour laser lifespan
- Supports popular applications, such as Microsoft Office 365 and Google Workspace
- Up to six points of finger touch
- Wired PC connection
- Automatic or manual calibration
- Built-in 16W mono speaker
- Up to 1.35x digital zoom
Epson 770FiSpecs
| Display System |
3-Chip 0.62" LCD |
| Native Resolution |
1920 x 1080 |
| Maximum Brightness |
White: 4100 Lumens
Color: 4100 Lumens |
| Throw Ratio |
0.25 to 0.35:1 |
| Projection Size |
100 to 110" / 2.5 to 2.8 m |
| HDR Support |
No |
| Inputs/Outputs |
3x HDMI Audio, Video Input
1x RCA (Composite) Video Input
3x 1/8" / 3.5 mm Mini Audio Input
1x 1/8" / 3.5 mm Mini Audio Output
1x 1/8" / 3.5 mm Mini Microphone Input
1x USB-A Power Output
2x USB-B Data Input/Output
1x DE-15/DB-15 (VGA) Video Input
1x DE-15/DB-15 (VGA) Video Output
1x RJ45 LAN
1x 1/8" / 3.5 mm Mini Control Input
1x 1/8" / 3.5 mm Mini Control Output
1x DE-9/DB-9 (RS-232) Control Input/Output
1x Proprietary Service |
| Light Source |
Laser/LED Hybrid |
Image Display
| Display System |
3-Chip 0.62" LCD |
| Native Resolution |
1920 x 1080 |
| Maximum Brightness |
White: 4100 Lumens
Color: 4100 Lumens |
| Aspect Ratio |
Native: 16:9
Supported: 4:3
Supported: 16:10
Supported: 21:9 |
| Dynamic Contrast Ratio |
2,500,000:1 |
| Color Depth |
10-Bit (1.07 Billion Colors) |
Lens
| Includes Lens |
Yes |
| Focus |
Manual |
| Aperture |
f/1.6 |
| Focal Length |
3.7mm |
| Throw Distance |
13.9 to 27.7" / 35.3 to 70.4 cm |
| Throw Ratio |
0.25 to 0.35:1 |
| Projection Size |
100 to 110" / 2.5 to 2.8 m |
Features
| Keystone Correction |
Manual to Vertical: ± 3°
Manual to Horizontal: ± 3° |
| HDR Support |
No |
| Digital Zoom |
1.35x |
| Multi-Input Support (PIP/PBP) |
Not Specified by Manufacturer |
| Built-In Speaker |
Yes (Mono) |
| Speaker Power |
16 W |
Input/Output Connectors
| Inputs/Outputs |
3x HDMI Audio, Video Input
1x RCA (Composite) Video Input
3x 1/8" / 3.5 mm Mini Audio Input
1x 1/8" / 3.5 mm Mini Audio Output
1x 1/8" / 3.5 mm Mini Microphone Input
1x USB-A Power Output
2x USB-B Data Input/Output
1x DE-15/DB-15 (VGA) Video Input
1x DE-15/DB-15 (VGA) Video Output
1x RJ45 LAN
1x 1/8" / 3.5 mm Mini Control Input
1x 1/8" / 3.5 mm Mini Control Output
1x DE-9/DB-9 (RS-232) Control Input/Output
1x Proprietary Service |
| HDCP Support |
Not Specified by Manufacturer |
Hardware
| Mobile App Compatible |
No |
| Wireless LAN / Wi-Fi |
Yes, Built-in |
| Bluetooth |
Yes |
General
| Light Source |
Laser/LED Hybrid |
| Expected Lamp Life |
Full Brightness: 20,000 Hours
Low Brightness: 30,000 Hours |
| Fan Noise |
Low Brightness: 27 dB
Medium Brightness: 37 dB |
| Security |
Cable Lock Slot
Password Protection
Security Bar |
| Input Power |
100 to 240 VAC, 50 / 60 Hz |
| Power Consumption |
Low Brightness: 206 W
Medium Brightness: 267 W
Standby Mode (Lamp Off): 0.5 W |
| Certifications |
RoHS |
| Operating Conditions |
41 to 104°F / 5 to 40°C |
| Dimensions (W x H x D) |
14.1 x 5.3 x 15.6" / 35.8 x 13.5 x 39.6 cm (Excluding Feet) |
| Weight |
13.2 lb / 6 kg |
Packaging Info
| Package Weight |
19.4 lb |
| Box Dimensions (LxWxH) |
19 x 17.6 x 12.6" |
