Barco CNWU-81B Overview

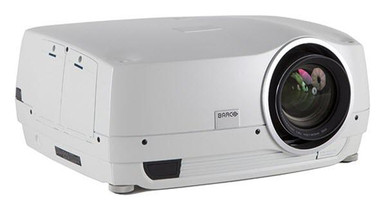

Designed for installation in meeting rooms, boardrooms, conference rooms, and small to medium-sized auditoriums, the Barco CNWU-81B 7650-Lumen WUXGA DLP Projector brings versatility to wherever it’s used. It uses interchangeable lenses to offer a variety of throw distances and zoom ranges. The projector has DVI-D, HDMI, VGA, component video, S-video, 5-BNC, and RCA composite video inputs for a variety of connection options. It can be controlled by Ethernet, RS-232, USB, or the included IR remote control .
Product specifications
| Projector type |
Single-chip DLP projector |
| Technology |
LVDC DMD™ with DarkChip3™ |
| Resolution |
1,920 x 1,200 (WUXGA) |
| Brightness |
7,650 ANSI lumens |
| Contrast ratio |
6,500:1 |
| Brightness uniformity |
> 90% |
| Aspect ratio |
16:9 |
| Lens type |
All pure glass lenses |
| Lenses |
- Ultra wide EN12 (0.74:1)
- Ultra wide zoom lens EN46 (0.75-1.13:1)
- Wide angle Lens EN15 (1.16:1)
- Wide angle zoom lens EN13 (1.24-1.6:1)
- Standard zoom lens EN11 (1.6-2.32:1)
- Long throw zoom Lens EN14 (2.37-3.79.1)
- Extra Long throw zoom EN16 (3.8-6.5:1)
|
| Optical lens shift |
Vertical: -134% to +134%
Horizontal: -68% to +68% (on zoom lenses) |
| Color correction |
RealColor™ |
| Lamps |
2 x 300 W UHP Vidi |
| Lamp lifetime |
Up to 2,000 hours (full power) / Up to 2,500 hours (eco mode) |
| Lamp house, quick replace |
Yes |
| Lamp warranty |
500 hours or 90 days |
| Orientation |
table – ceiling |
| Sealed DLP™ core |
Yes |
| Inputs |
1 x DVI-D; 1 x HDMI 1.3a; 1 x VGA; 1 x 5-BNC; 1 x HMDI 1.3a; 1x YPbPr; 1 x S-video; 1 x composite |
| Input resolutions |
1,920 x 1,200 – 640 x 480 pixel resolution; RGBHV, RGBS, RGsB; custom formats available; HDTV (1080p, 1080i, 720p); NTSC, PAL, SECAM |
| Software tools |
Projector Toolset, ProNet |
| Control |
Minijack + IR, RS232, Network, 12v trigger |
| Network connection |
10/100 base-T, RJ-45 connection |
| Power requirements |
100–240 V / 50–60 Hz |
| Power consumption |
850 W |
| Noise level |
34 dB |
| Operational ambient temperature |
10–40°C / 50–104°F |
| Operational humidity |
20-80% RH |
| Dissipation BTU |
max 2,900 BTU/h |
Dimensions
(W x L x H) |
20.08 x 14.80 x 9.17 inches / 510 x 376 x 233 mm |
| Weight |
27.8 lbs (12.6 kg) |
| Standard accessories |
Power cord, wireless remote control |
| Certifications |
Compliant with FCC, part 15 Class A and CCC, cCSAus, cUL, UL and CE |
