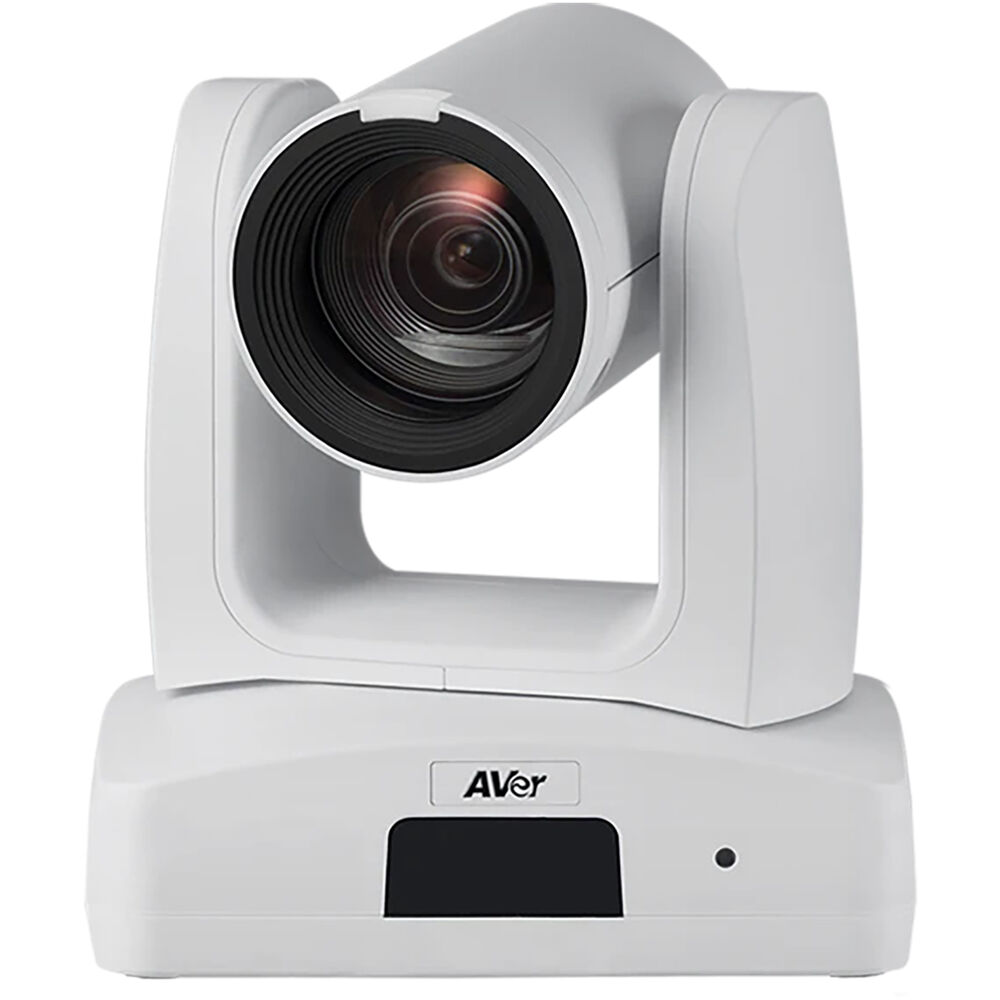

AVer PTZ330UV2 Professional PTZ Camera

The AVer PTZ330UV2 is a professional indoor AI PTZ camera built around an 8-megapixel, 1/2.8-inch 4K Exmor CMOS sensor. It captures resolutions up to 4K at 60 fps and combines a 30X optical zoom lens with flexible pan-and-tilt control. HDMI, 3G-SDI, IP, and USB video outputs support integration with a range of professional video and streaming systems.

Ideal Use Cases

This model is suited to indoor professional video applications that require 4K acquisition, remote camera movement, and multiple output options. Its 30X optical zoom covers framing from a 69.2-degree diagonal wide view to a 2.8-degree diagonal telephoto view. Four-stream capability, IP streaming support, and NDI|HX3 compatibility make it useful in workflows that distribute video through HDMI, RTSP, USB at 4Kp60, and 3G-SDI at 1080p60.

Why Choose This Model

The PTZ330UV2 combines detailed 4K/60 video with a focal range of 4.5 mm to 135 mm and 30X optical magnification. Exposure controls include automatic, manual, shutter-priority, iris-priority, backlight compensation, and wide dynamic range modes. White balance can be set to Auto, Manual, ATW, or One Push. A minimum illumination rating of 0.46 lux at IRE50, F1.6, and 30 fps supports operation in lower-light indoor conditions, while 2D and 3D noise reduction provide additional image processing.

Installation and Integration

Camera control is available through RS-232, RS-422, and IP interfaces. Supported protocols include VISCA over serial or IP, PELCO-D, PELCO-P, and CGI over IP. The camera provides 10 presets through infrared control and up to 256 presets through RS-232, RS-422, or IP. Manual pan and tilt speeds range from 0.1 to 100 degrees per second, while preset movement reaches 200 degrees per second. Pan travel is ±170 degrees, and tilt travel extends from -30 to +90 degrees.

Power options include the supplied DC requirement of 12V/2A from an AC 100-240V source and PoE+. Network connectivity uses 10/100/1000 Base-T Ethernet. The camera measures 180 x 192 x 145 mm, weighs 2.0 ±0.1 kg, and is specified for indoor operation from 0 to 40 degrees Celsius at 20% to 80% humidity.

Performance Highlights

The camera supports 4K frame rates of 60, 59.94, 50, 30, 29.97, and 25 fps, along with multiple 1080p, 1080i, and 720p formats. Network video compression includes H.264, H.265, and MJPEG, with selectable VBR or CBR operation from 512 Kbps to 120 Mbps. Streaming protocols include RTSP, RTMP, SRT, and HLS, alongside RTP/RTCP and standard IPv4 network services.

The USB 3.0 Type-B connection supports MJPEG and YUY2 video with a maximum USB resolution of 2160p. UVC 1.1 and UAC 1.0 compatibility cover USB video and audio operation. Audio features include two-channel stereo, AAC-LC encoding, microphone and line inputs, and audio output through 3G-SDI, HDMI, IP, and USB.

What Makes It Different

Beyond its 4K/60 capture and 30X optical reach, the PTZ330UV2 brings together NDI|HX3 capability, four-stream operation, PoE+, serial control, IP control, and four primary video output paths. Flip and mirror processing expand mounting and image-orientation options, while the integrated tally light provides a visible camera-status indicator. A Kensington slot is included for physical security, and an infrared remote-control interface is supported.

Final Assessment

The AVer PTZ330UV2 delivers a strong combination of 4K/60 imaging, 30X optical zoom, rapid preset movement, extensive control protocols, and HDMI, 3G-SDI, IP, and USB connectivity. Its broad format support and network streaming capabilities make it a versatile indoor professional PTZ camera for integrated video systems.
