ANT, PAIR, WIDE BAND PADDLE 500-700MHz

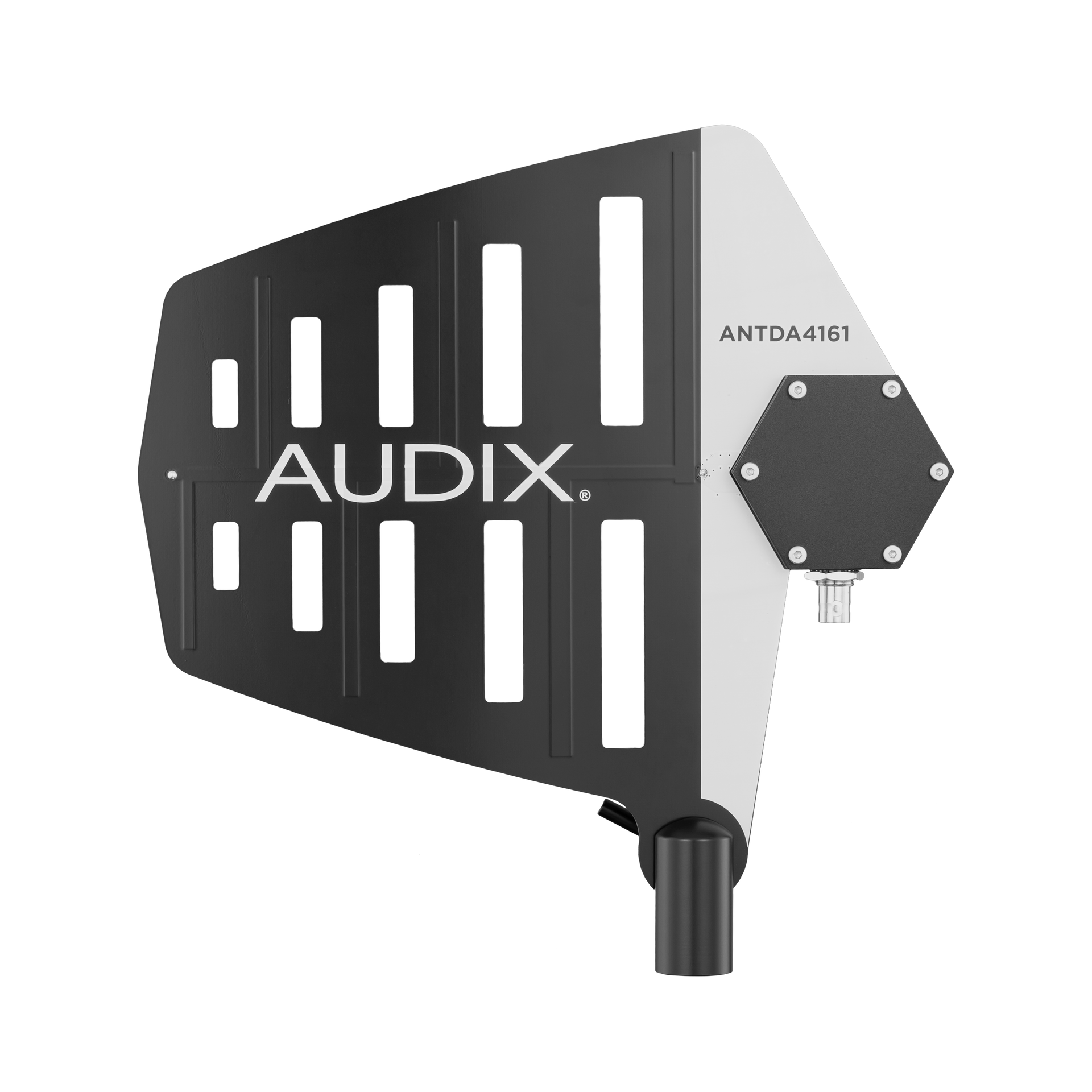

The Audix ANTDA4161 is a pair of wide-band active directional paddle antennas developed to improve reception while providing amplified gain for longer cable runs. The antennas offer 15 dB of gain to help compensate for signal loss over distance and may be connected using standard coaxial cable fitted with BNC connectors. The supplied product title identifies a 500–700 MHz range, while the Audix description specifies reception from 522–865 MHz. Because these ranges differ, confirm compatibility with the intended system before purchase.

Ideal Use Cases

The ANTDA4161 is suited to reception systems that require directional antennas positioned away from connected equipment. Its active design and 15 dB amplified gain are particularly relevant when signal loss over the coaxial cable run must be addressed. Audix specifically identifies the ANTDA4161 as an ideal companion for the ADS48 antenna distribution system. Standard coaxial cable and BNC connectivity also allow it to integrate with systems that use those established connection formats.

Why Choose This Model

This model combines three clearly defined capabilities: wide-band reception, a directional antenna design, and active amplification. Rather than functioning only as a passive connection point, the ANTDA4161 supplies 15 dB of amplified gain intended to make up for signal loss over distance. The pair format provides two matching paddle antennas for a compatible reception system. Its stated support for standard coaxial cable with BNC connectors keeps the required signal connection straightforward and avoids reliance on an unspecified proprietary cable format.

Installation and Integration

The ANTDA4161 may be connected with standard coaxial cable terminated with BNC connectors. This supports installations in which the antennas need to be separated from the antenna distribution equipment by a cable run. When paired with the Audix ADS48, the antennas serve as the directional reception components of the antenna distribution setup. The source data does not specify included cables, mounting hardware, cable-length limits, power requirements, or mounting methods, so those details should be confirmed separately when planning the installation.

Frequency compatibility should also be reviewed carefully. The supplied listing title describes the product as a 500–700 MHz antenna pair, but the Audix product description gives an improved-reception range of 522–865 MHz. The ANTDA4161 model and MPN are consistent across the supplied information, but the operating-range discrepancy remains and should be resolved against the frequencies used by the connected equipment.

Performance Highlights

The principal performance feature is 15 dB of amplified gain. Audix describes this gain as a way to compensate for signal loss over distance, making it the defining technical advantage of the active antenna design. The stated reception range in the Audix description is 522–865 MHz, giving the model wide-band coverage within that specified span. Directional operation distinguishes the ANTDA4161 from an unspecified omnidirectional design and allows the paddle antennas to be oriented as required by the intended installation.

The available information does not provide sensitivity, impedance, beam-width, noise, maximum cable distance, or environmental ratings. Those values have therefore not been inferred. The documented performance details are limited to the active directional design, wide-band reception, 15 dB amplified gain, and compatibility with standard BNC-terminated coaxial cable.

What Makes It Different

The ANTDA4161 brings reception, directionality, and signal-loss compensation together in a matched pair of paddle antennas. Its 15 dB amplified gain directly addresses the loss that can occur as signals travel over distance through a cable connection. Compatibility with the ADS48 antenna distribution system gives it a specifically identified Audix integration path, while standard coaxial cable and BNC connectors provide a familiar physical interface.

The model is therefore defined by practical system integration rather than undocumented secondary features. Audix supplies a clear model designation, ANTDA4161, and positions it specifically for improved wide-band reception and use with the ADS48.

Final Assessment

The Audix ANTDA4161 is a focused antenna solution for systems requiring a pair of active directional paddles, BNC coaxial connectivity, and 15 dB of gain to help counter signal loss over distance. It is especially relevant for an Audix ADS48 antenna distribution system. Before ordering, verify the required frequency range because the supplied title states 500–700 MHz while the detailed Audix description states 522–865 MHz.
