HRN PG RG T72/30W PLSTC GRY

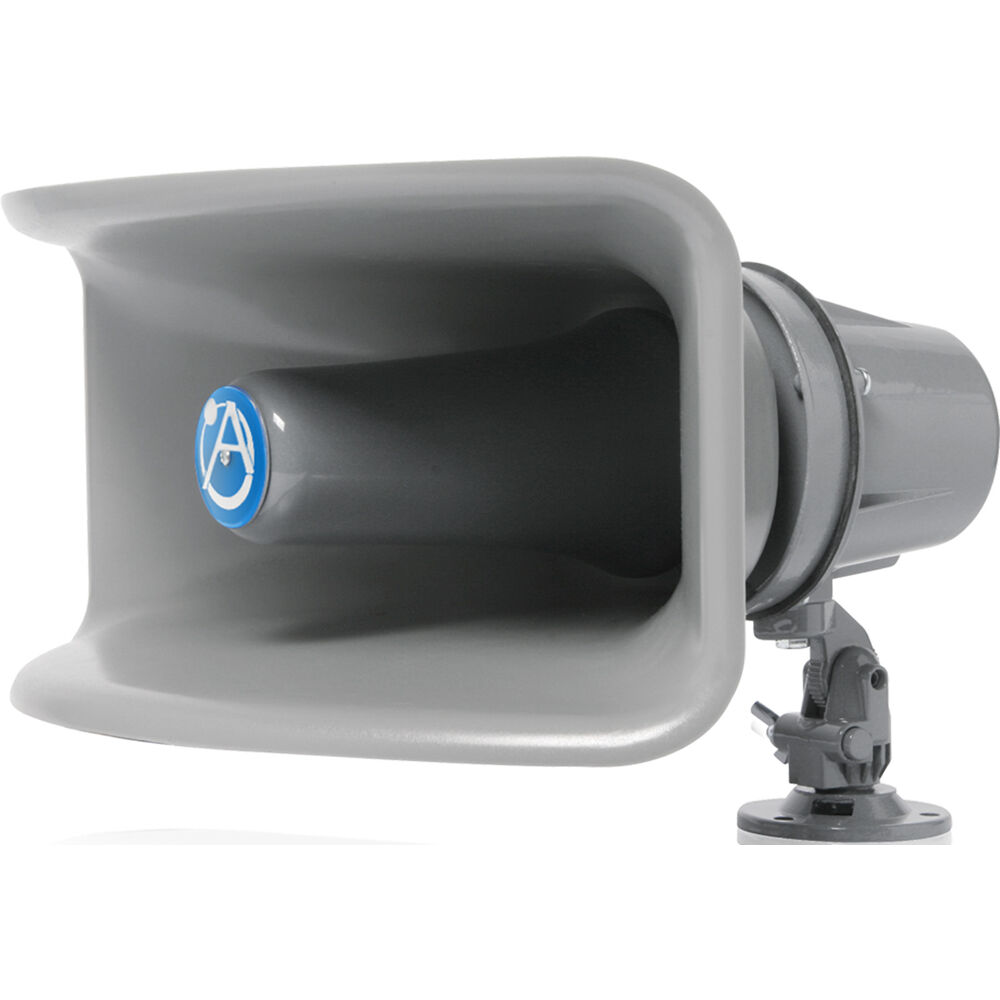

The AtlasIED APC-30T is a high-power, 30-watt horn loudspeaker designed around a wide-angle molded plastic bell. Its specified 300Hz-12kHz frequency response provides extended low-frequency response, while 109dB sensitivity and 70° x 95° dispersion define its output and coverage characteristics. An integrated transformer offers five selectable power taps for use with 70.7V loudspeaker systems.

Ideal Use Cases

This model fits audio system designs that require a wide dispersion pattern, a 30-watt power rating, and transformer-based 70.7V operation. Its 70° x 95° dispersion makes it appropriate for projects where coverage across a broad listening area is a primary design consideration. The selectable taps also make the APC-30T suitable when individual loudspeaker power must be matched to the requirements of a larger system.

The supplied specifications do not identify particular venue types or state whether the enclosure is weather resistant. Application decisions should therefore be based on the documented electrical, acoustic, dimensional, color, and operating-temperature information.

Why Choose This Model

The APC-30T combines a full 30-watt rating with the flexibility of 2, 3.8, 7.5, 15, and 30W taps at 70.7V. This range allows the selected power level to be aligned with the intended system configuration without changing the loudspeaker model. Its molded plastic bell establishes the wide-angle form of the speaker and provides controlled sound directivity.

For system planning, the key performance specifications are clearly defined: 109dB sensitivity, a 300Hz-12kHz frequency range, and 70° x 95° dispersion. Together, these values provide concrete criteria for comparing the APC-30T with other transformer-equipped horn loudspeakers.

Installation and Integration

The speaker measures 8 1/4 inches high, 14 3/8 inches wide, and 12 7/8 inches deep, equivalent to 20.96 x 36.51 x 32.70 cm. Its listed shipping weight is 9.00 lbs, or 4.08 kg. These figures can be used when planning the required installation space and handling arrangements.

Integration centers on its 70.7V transformer taps. Available settings are 2, 3.8, 7.5, 15, and 30W, allowing the APC-30T to be configured at several power levels up to its rated maximum. The selected setting should correspond to the intended 70.7V system design. Mounting hardware, connection details, and included accessories are not specified in the supplied product data.

The listed operating-temperature range is 40C to 70C. Its gray color is identified by both Pantone 430 C and RAL 7000 references, providing defined color information for installations where the loudspeaker finish must be considered.

Performance Highlights

• 30-watt maximum power rating
• Five 70.7V transformer taps: 2, 3.8, 7.5, 15, and 30W
• 300Hz-12kHz frequency response
• 109dB sensitivity
• 70° x 95° dispersion
• Wide-angle molded plastic bell for sound directivity

The combination of wide dispersion, specified sensitivity, and multiple power taps gives system designers measurable acoustic and electrical parameters for selecting and configuring the loudspeaker.

What Makes It Different

The defining feature of the APC-30T is the combination of a wide-angle molded plastic bell and a transformer with several selectable power taps. Rather than limiting operation to its maximum 30-watt rating, it provides four lower settings for configurations that require less power. The 70° x 95° dispersion specification further distinguishes its intended coverage pattern, while its extended low-frequency response is represented by the stated 300Hz lower frequency limit.

Its finish is also documented through established Pantone and RAL color references rather than a general gray description alone. This makes the enclosure color more precisely identifiable from the supplied specifications.

Final Assessment

The AtlasIED APC-30T is a clearly specified 30W wide-angle horn speaker for 70.7V systems. Its strongest selection points are the five transformer taps, 109dB sensitivity, 300Hz-12kHz response, and 70° x 95° dispersion. The molded plastic bell supports the model's sound-directivity design, while the documented dimensions and color references assist with installation planning. AtlasIED provides a warranty period of 60 months from the date of purchase.
