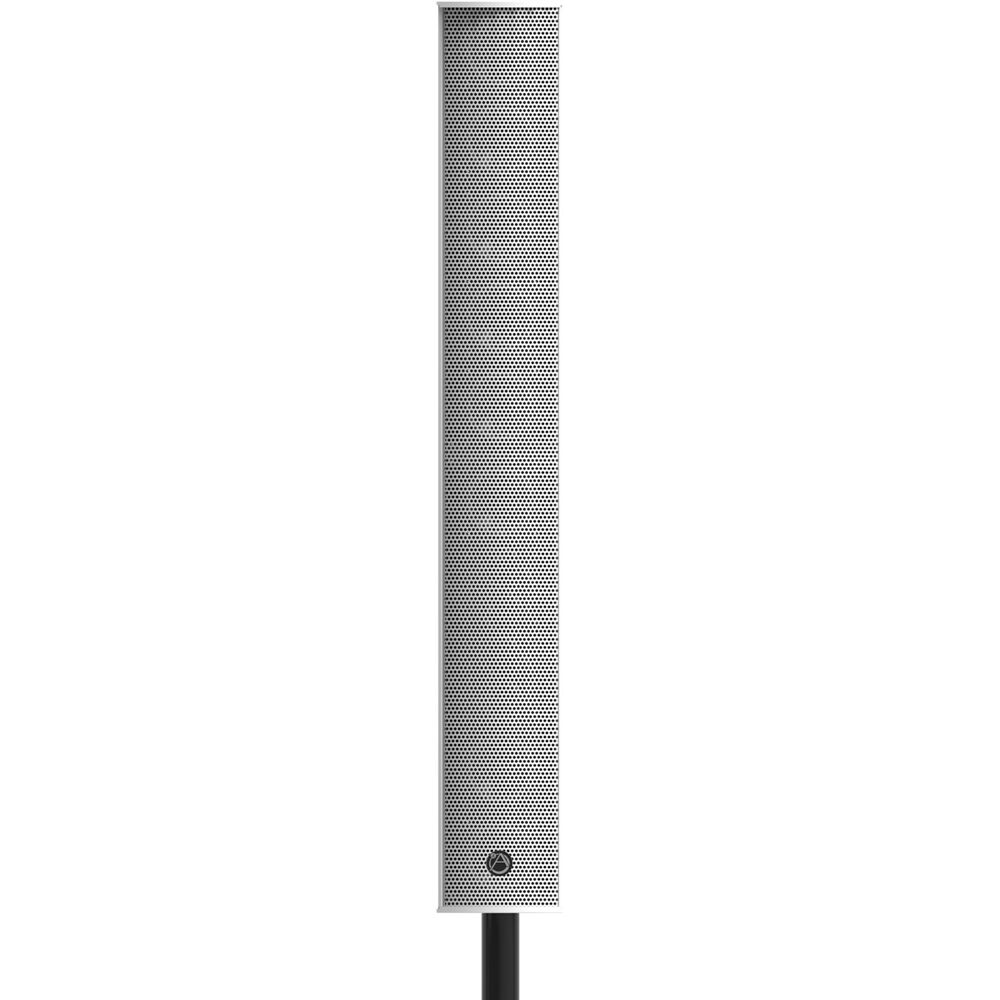

EN54-24 Certified 10 Speaker Full Range Line Array Speaker System

{
"required_output": {
"description": "

Ideal Use Cases

The EN54-24 Certified 10 Speaker Full Range Line Array Speaker System, model ALA10TAW by AtlasIED, is an ideal choice for venues that require reliable and efficient audio coverage with safety certification. Its 135° horizontal and 40° vertical dispersion makes it perfect for settings needing wide horizontal coverage but controlled vertical sound distribution, such as auditoriums, places of worship, and conference facilities.

Why Choose This Model

Choose the ALA10TAW for its impressive combination of ten 3-inch full-range speakers and four 1-inch tweeters, housed in a lightweight yet robust aluminum enclosure. This configuration, along with a frequency response of 160 Hz to 20 kHz (±5 dB), ensures detailed audio reproduction. With a sensitivity of 96 dB at 1W/1m and an EN54-24 sensitivity of 82 dB at 1W/4m, the ALA10TAW offers powerful performance for both low and high-volume needs.

Installation and Integration

Installation is simplified with flexible connection options, including 70.7V and 100V transformer taps, as well as a 6-ohm low-impedance setting. The detailed transformer taps allow precise matching to power requirements, ensuring optimal performance. Dimensions of 32.9 inches in height, 4.61 inches in width, and 5.43 inches in depth provide a compact profile for easy integration into various architectural spaces. Verify space and mounting compatibility based on these specifications.

Performance Highlights

The ALA10TAW stands out with its ability to deliver 600 watts RMS power at 6 ohms, ensuring robust sound output. The 135° horizontal dispersion ensures broad coverage, while the 40° vertical dispersion minimizes unwanted reflections, enhancing clarity. The 160 Hz to 20 kHz frequency range covers essential audio frequencies, making it suitable for speech and music applications alike.

What Makes It Different

This model's EN54-24 certification is a key differentiator, ensuring compliance with stringent safety standards. The unique blend of ten full-range drivers and four tweeters in a single array offers unparalleled sound clarity. Available in black or white finishes, it caters to aesthetic preferences without compromising on performance. The transparent transformer tap options further enhance its adaptability in diverse audio setups.

Final Assessment

The ALA10TAW is a well-rounded choice for projects prioritizing safety, acoustic performance, and installation flexibility. Its 600-watt power capacity, precise dispersion characteristics, and extensive frequency response make it a reliable solution for demanding environments. With a 60-month warranty from the date of purchase, it promises long-term value and support. Verify compatibility with specific project requirements, including impedance and transformer settings, for optimal integration.

",
"short_description": "The AtlasIED ALA10TAW is an EN54-24 certified line-column speaker featuring ten 3-inch full-range speakers and four 1-inch tweeters. With 600 watts RMS at 6 ohms, it offers 135° x 40° dispersion and 96 dB sensitivity. Ideal for venues needing broad audio coverage, it supports 70.7V, 100V, and low-impedance connections, ensuring versatile integration."
}
}
