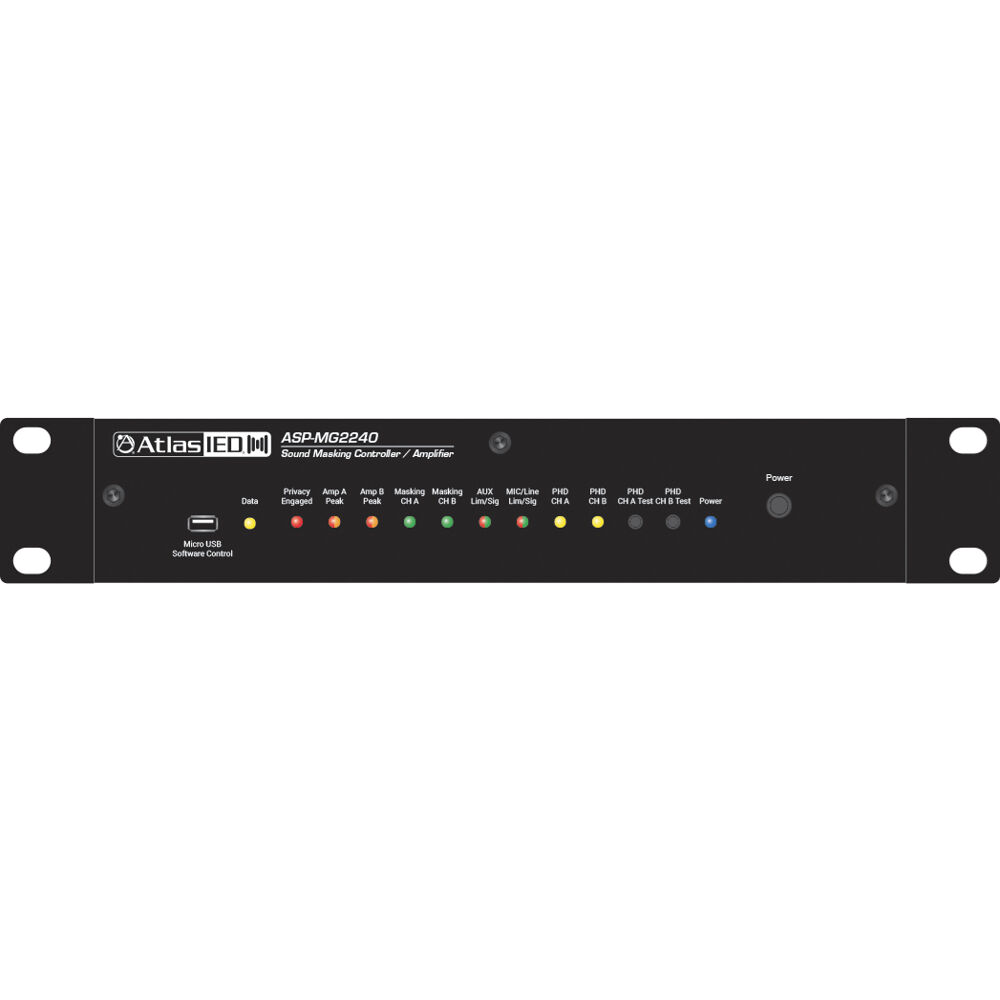

Amplified Sound Masking System W/ Onboard DSP GEN 40W 2 OUT

Ideal Use Cases

The AtlasIED ASP-MG2240 is expertly crafted for environments that demand efficient sound masking across two distinct zones. This model is particularly beneficial in office settings, healthcare facilities, and educational institutions where privacy and noise control are paramount. It excels in environments that require precise sound masking, enhanced by its separate analog masking generators and onboard DSP. With its capability to integrate a balanced microphone or line-level source, and support for auxiliary devices, it provides remarkable versatility for diverse audio needs.

• Office spaces seeking enhanced privacy through sound masking
• Healthcare facilities needing discrete audio management
• Educational institutions aiming for controlled audio environments

Why Choose This Model

The ASP-MG2240 stands out by consolidating critical audio functions into one cohesive unit. Offering 30 watts per channel at 70.7V, it features separate analog masking generators with EQ for precise audio tailoring. The onboard DSP facilitates comprehensive signal processing, while the integrated 24/7 scheduler ensures consistent operation tailored to a weekly schedule.

Connectivity options include a balanced Mic/Line input via a Euro Block connector and a 3.5mm auxiliary input, perfect for background audio. The dedicated line output enhances system flexibility, allowing seamless integration with additional audio equipment. This model significantly reduces the need for multiple components, streamlining sound masking installations.

Installation and Integration

Measuring at 10.5 inches wide, 1.75 inches high, and 11.25 inches deep, the ASP-MG2240 fits neatly into a single rack unit, simplifying installation logistics. It weighs 6 pounds, ensuring manageable installation handling.

Power is efficiently managed with a 24V DC, 2.5A input via a two-position Euro Block connection. Operational flexibility is supported by an external power supply ranging from 110V to 230V AC at 50/60Hz. Connection capabilities include balanced Mic/Line, 3.5mm auxiliary inputs, two amplified 70.7V outputs, and a line output, with the latter featuring a 150-ohm impedance and a 2V maximum output level.

These specifications ensure compatibility with a wide array of audio systems, although additional accessories and cabling should be confirmed separately during system planning.

Performance Highlights

The ASP-MG2240’s dual 30-watt outputs into a 70.7V system deliver robust audio performance, with a signal-to-noise ratio greater than 90dB below rated output (A-weighted). Its energy efficiency is highlighted by an idle power consumption of just 72mA.

The separate analog masking generators empower users to tailor distinct audio environments across zones, supported by EQ and DSP for refined processing. The 24/7 scheduling feature ensures seamless operational continuity, while the balanced Mic/Line input and 3.5mm auxiliary connection provide comprehensive audio input options.

What Makes It Different

What sets the ASP-MG2240 apart is its all-in-one design that integrates two-zone masking functions with amplification and DSP capabilities in a single controller. The inclusion of both balanced and 3.5mm inputs extends its utility beyond basic sound masking, allowing for diverse audio input sources.

The line output further enhances its functionality, offering a 150-ohm impedance and a 2V maximum level, facilitating seamless integration with other audio systems. This model delivers a well-documented and versatile platform for installations requiring comprehensive audio management.

Final Assessment

The AtlasIED ASP-MG2240 is a robust choice for two-zone sound masking in 70.7V systems. Its dual 30-watt outputs, dedicated masking generators with EQ, onboard DSP, and flexible input options make it ideal for environments demanding precise and adaptable audio solutions. Its single-rack-unit design and universal power supply compatibility simplify installation and operation planning, making it a valuable asset for any professional audio setup.
