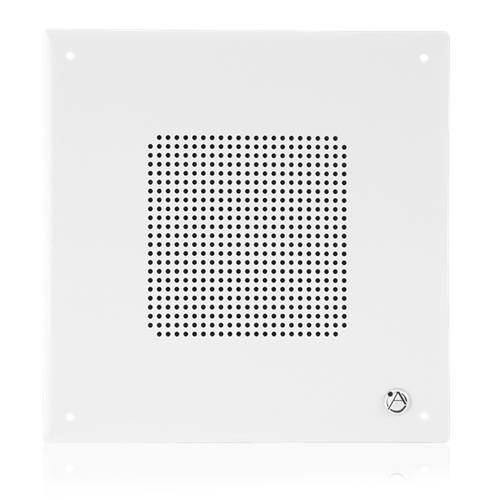

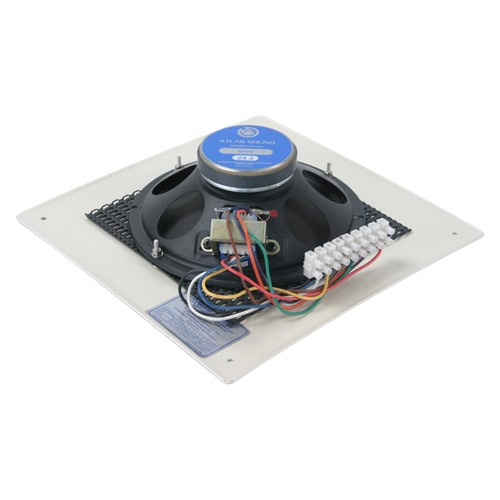

8" Speaker with 4-Watt 25V/70V Transformer and Vandal Resistant Baffle

The AtlasIED VP14MB combines an 8-inch speaker with a 4-watt 25V/70V transformer and a vandal-resistant baffle, designed for demanding speech-reinforcement installations where durability is crucial. Its 50Hz–15kHz frequency response, selectable .25-, .5-, 1-, 2-, and 4-watt power taps, and 105-degree dispersion provide reliable performance metrics for system designers.

Ideal Use Cases

The VP14MB is perfect for environments where clear communication and resistance to vandalism are priorities. Ideal for public-facing areas and locations that may be vulnerable to damage, this model excels in installations requiring intelligible speech delivery. Its compatibility with both 25V and 70V systems adds to its versatility.

Why Choose This Model

This model's main strengths lie in its robust combination of an 8-inch speaker, a 4-watt transformer, and a vandal-resistant baffle. The transformer offers five power-tap options—.25, .5, 1, 2, and 4 watts—allowing installers to balance speaker output and system power effectively. The vandal-resistant design is a key advantage over standard speakers, ensuring durability in challenging environments.

Installation and Integration

Designed for 25V and 70V systems, the VP14MB supports flexible installation options. The face dimensions of 11 7/16 inches by 11 3/4 inches (29.05125 cm by 29.845 cm) facilitate precise planning for installation spaces. While the listed weight of 6.20 lbs (2.81 kg) is for shipping, actual installation weight should be verified. Installation specifics like mounting method and wiring connections should be confirmed during system setup.

Performance Highlights

With a frequency response of 50Hz to 15kHz and a 105-degree dispersion, the VP14MB covers a wide operating bandwidth and coverage angle. These specifications ensure effective speech reinforcement, with multiple transformer taps allowing integration at various wattage levels, from .25 to 4 watts, accommodating different acoustic environments.

What Makes It Different

The VP14MB stands out due to its focus on speech performance coupled with a rugged, vandal-resistant design. This unique combination makes it suitable for installations where system durability is as important as audio clarity. Its dual voltage support and multiple power tap options further enhance its adaptability to various system requirements.

Final Assessment

For projects requiring 25V or 70V speech reinforcement in vandal-prone areas, the AtlasIED VP14MB offers a targeted solution. Its robust specifications, including an 8-inch speaker, vandal-resistant baffle, and 4-watt transformer with selectable taps, provide the necessary functionality. Ensure that installation aligns with project requirements, verifying details not specified in the provided data.
