ADJ 4 CHANNEL PACK

Ideal Use Cases

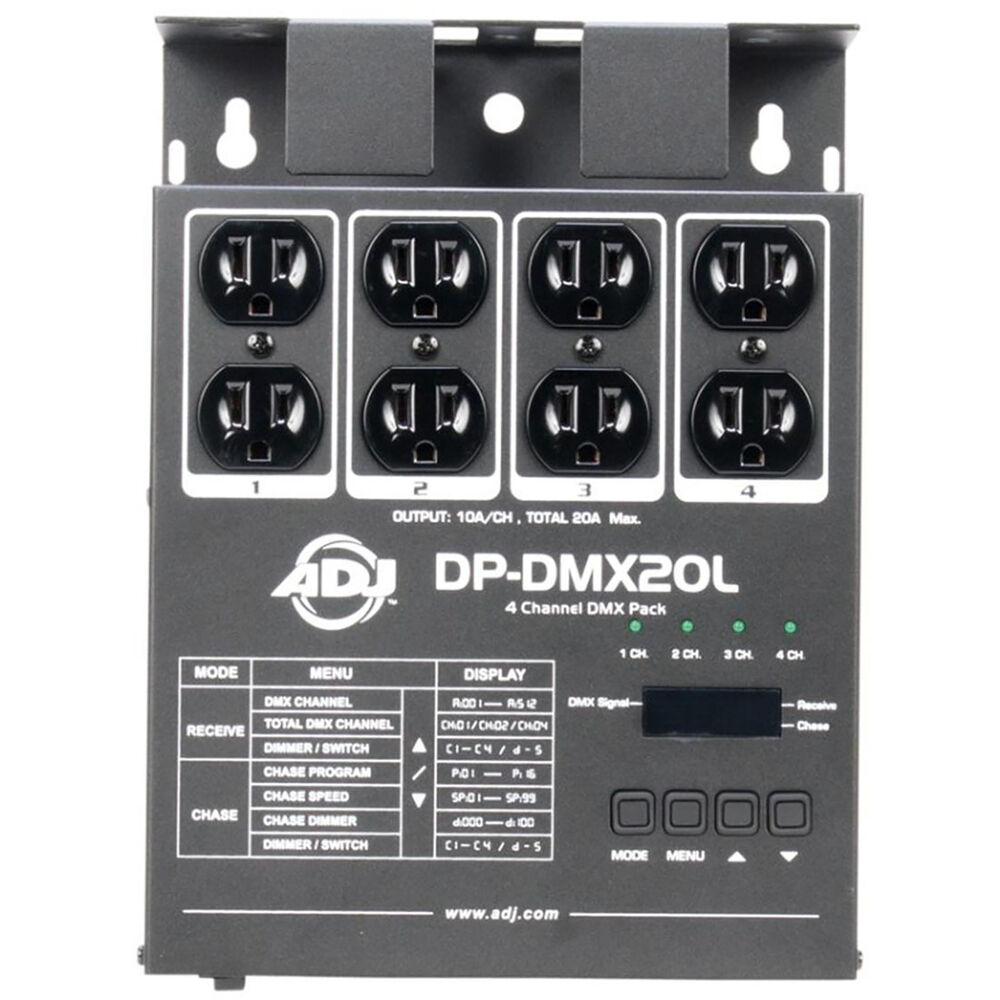

The ADJ DP-DMX20L is a four-channel universal DMX dimmer/switch pack designed for portable DMX control applications. Its selectable one-, two-, or four-channel operation allows the channel configuration to match the requirements of the setup. It is intended for systems using 120V at 60Hz, provided all connected loads remain within the specified per-channel and total limits.

Measuring 10.25 inches long, 8.25 inches wide, and 3 inches high, the pack consolidates four channels in an enclosure weighing 6 pounds. Those dimensions and its stated portable design make it suitable for configurations where the dimmer/switch pack may need to be positioned, transported, or stored between uses. The choice of operating modes also accommodates setups that do not require all four channels.

Why Choose This Model

The DP-DMX20L combines dimmer and switch functionality in a single universal DMX pack. Its defining advantage is the ability to select one-, two-, or four-channel operation instead of being limited to a single channel arrangement. This provides a clear way to align the operating configuration with the number of channels needed.

Its published electrical capacity is 6.3A per channel, with a maximum combined load of 15A. This gives installers and operators concrete limits for planning connected equipment. The product identification is equally clear: the model and manufacturer part number are both DP-DMX20L, while the supplied UPC is 819730012166.

Installation and Integration

The pack requires a 120V, 60Hz power input. Before integration, calculate both the load assigned to each channel and the combined load across the pack. No individual channel should exceed the stated 6.3A maximum, and the complete configuration must remain at or below the 15A total maximum. The total rating means that four connected channels cannot automatically be treated as having 6.3A available simultaneously.

Select one-, two-, or four-channel operation according to the intended DMX arrangement. Physical planning should allow for the 10.25-inch by 8.25-inch footprint and 3-inch enclosure height, as well as the 6-pound weight. Connector types, DMX addressing procedures, mounting hardware, and included accessories are not specified in the supplied product data and should be confirmed separately when planning a complete installation.

Performance Highlights

• Four-channel universal DMX dimmer/switch pack
• Selectable one-, two-, or four-channel operation
• Maximum load of 6.3A per channel
• Maximum total load of 15A
• 120V, 60Hz power input
• Listed refresh rate of 60Hz
• 10.25-inch length, 8.25-inch width, and 3-inch height
• 6-pound product weight

These specifications define the model’s operating scope without relying on unspecified compatibility or performance claims. The selectable channel modes are the central control feature, while the published current ratings establish the boundaries for load planning.

What Makes It Different

The distinguishing feature of the DP-DMX20L is its combination of four-channel capacity with selectable one-, two-, or four-channel operation. That flexibility separates the operating layout from the physical number of channels available, allowing the same pack to serve configurations requiring different channel counts.

ADJ also identifies the unit as both a dimmer and switch pack rather than describing it solely as a dimmer. Its portable format, documented dimensions, and 6-pound weight provide useful information for determining whether it fits the available space and handling requirements. The universal designation is part of the official product name; specific equipment compatibility is not detailed in the provided information.

Final Assessment

The ADJ DP-DMX20L offers a focused set of documented capabilities: four-channel DMX dimmer/switch operation, selectable channel configurations, portable construction, and defined electrical limits. It is best evaluated for 120V, 60Hz applications that require one, two, or four operating channels and can remain within 6.3A per channel and 15A overall.

For buyers comparing DMX control packs, the key decision points are straightforward: required channel count, available installation space, and total connected load. When those requirements align with its published ratings, the DP-DMX20L provides the specified functionality in a 10.25-by-8.25-by-3-inch, 6-pound package.
