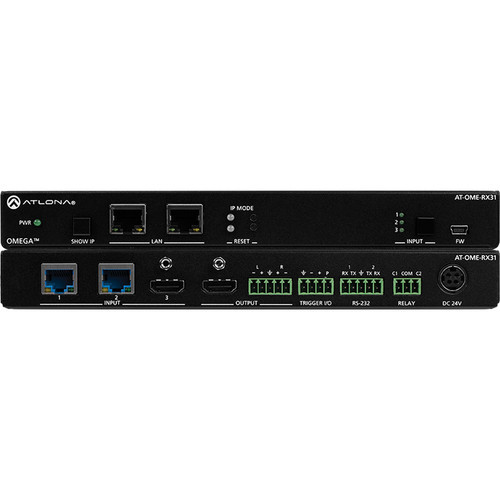

Atlona AT-OME-RX31 3×1 AV Switcher and Receiver with Scaler and Dual HDBaseT Plus HDMI Inputs

Atlona RX31 Overview

The Atlona AT-OME-RX31 3×1 AV Switcher and Receiver with Scaler and Dual HDBaseT Plus HDMI Inputs is an HDBaseT receiver and 4K scaler with two HDBaseT inputs plus an HDMI input. The OME-RX31 is part of the Omega Series of integration products for modern AV communications and collaboration.

Specifications for AT-OME-MH21

Features

Certification

CE, FCC, UL

LED indicators

Yes

Product colour

Black

Network

Cabling technology

10/100/1000BaseE-T(X)

Ethernet interface type

Gigabit Ethernet

Ethernet LAN data rates

10/100/1000 Mbit/s

Operational conditions

Operating relative humidity (H-H)

20 - 90 %

Operating temperature (T-T)

0 - 50 °C

Storage temperature (T-T)

-20 - 60 °C

Package dimensions

Height (package,cm)

7 cm

Package dimensions (verified)

Depth Verified

20.7 cm

Gross Weight Verified

1.544 kg

Width Verified

34.9 cm

Performance

Maximum video resolution

4096 x 2160 Pixels

Supported graphics resolutions

1280 x 720 (HD 720)/1920 x 1080 (HD 1080)/3840 x 2160/4096 x 2160

Supported video modes

1080i/1080p/720p

Ports & interfaces

Ethernet LAN (RJ-45) ports

1

Number of HDMI outputs

2

RS-232 ports

1

USB 3.2 Gen 1 (3.1 Gen 1) ports quantity

2

Power

AC adapter frequency

50 - 60 Hz

AC adapter input voltage

100 - 240 V

AC adapter output current

4 A

Power consumption (max)

14.5 Watt

Product dimensions

Net Weight (Product, kg)

1.3 kg

Product Depth

34.8 cm

Product Height

7 cm

Product Width

20.6 cm

Vendor information

Brand Name

Atlona

Homepage

https://atlona.com/product/at-ome-mh21/

Warranty

10 Year(s)

Categories

Main category

ProAV Solutions

Subcategory

Signal Management

Subcategory

Streaming
