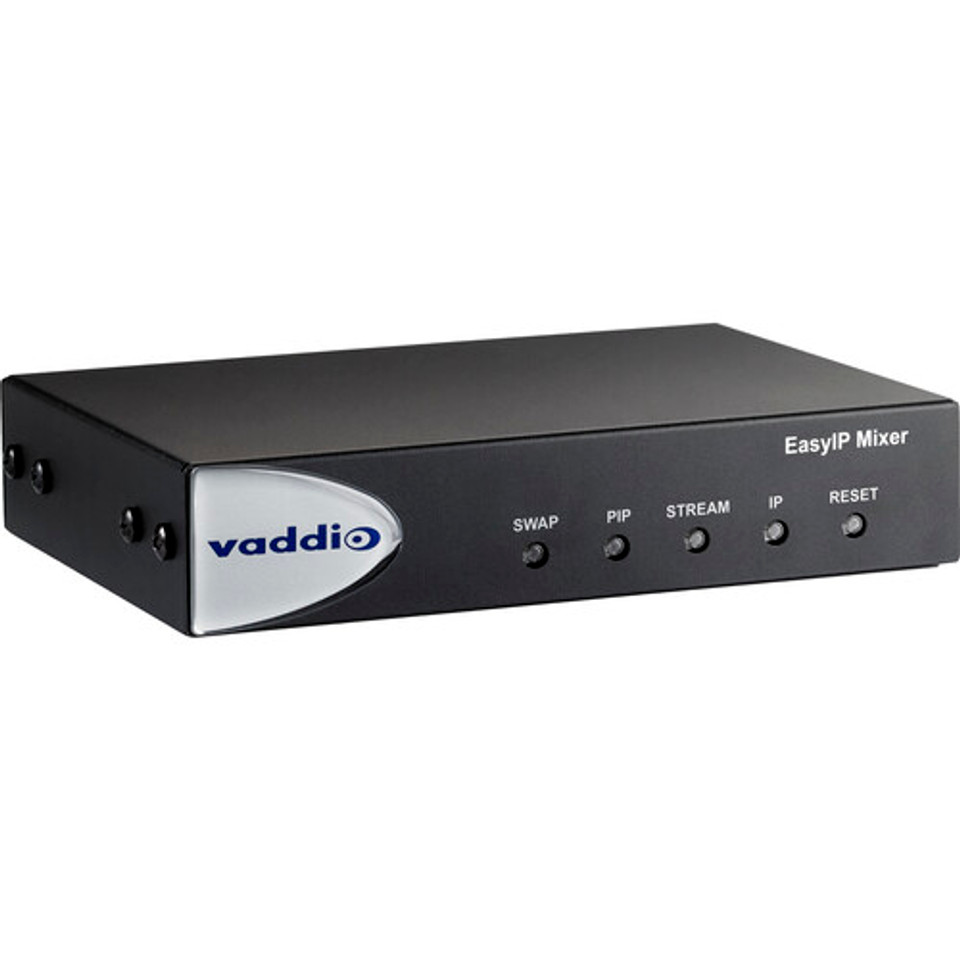

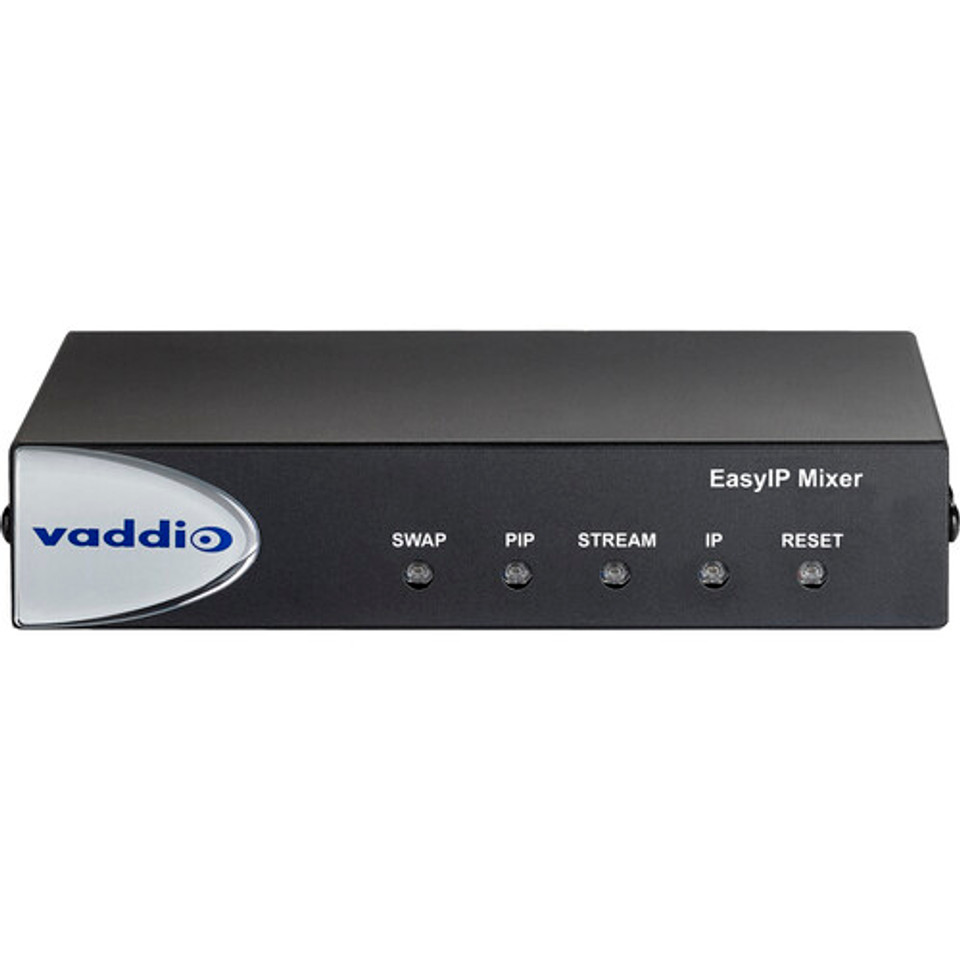

Vaddio 999-60320-000 EasyIP Video Mixer

The EasyIP Video Mixer from Vaddio combines Dante audio sources and four VaddioEasyIP cameras to deliver our easiest production switcher todate. The EasyIP Mixer revolutionizes the complex classroom A/Vsystem, replacing expensive HDMI cable runs with categorycables and saving precious time with simple video and audiorouting in an intuitive web-based user interface. Pair the EasyIP Mixer with up to four EasyIP cameras located on the network. The additional HDMI input allows you to connect a PC for simple content sharing on a platform that easily switchesbetween sources and delivers useful picture-in-picture (PIP) layouts. Simultaneous 1080p/60 USB 3.0 and HDMI outputs allow for multipurpose video distribution. Use the EasyIP Mixer to simultaneously record to a local PC and magnify the speakervideo through a room projector. Or use the USB 3.0 interface with popular videoconferencing applications – including UVC control of connected cameras.

The system is based around a PoE+ network switch that provides the power and control capabilities for the EasyIP Cameras as well as the EasyIPCeilingMIC D microphones. Next, pair the EasyIP Mixer to the same network and pair the desired endpoints with the included web-based user interface. No expensive external processors, no costly management software tools – the whole system can beconfigured in minutes.

Key Features

• Mix up to 4 x EasyIP Cameras
• Mix up to 4 x Dante I/O, 2 x Analog I/O
• PoE+ Switch Provides Power & Control
• Dante I/O for Scalable Networked Audio

Specifications

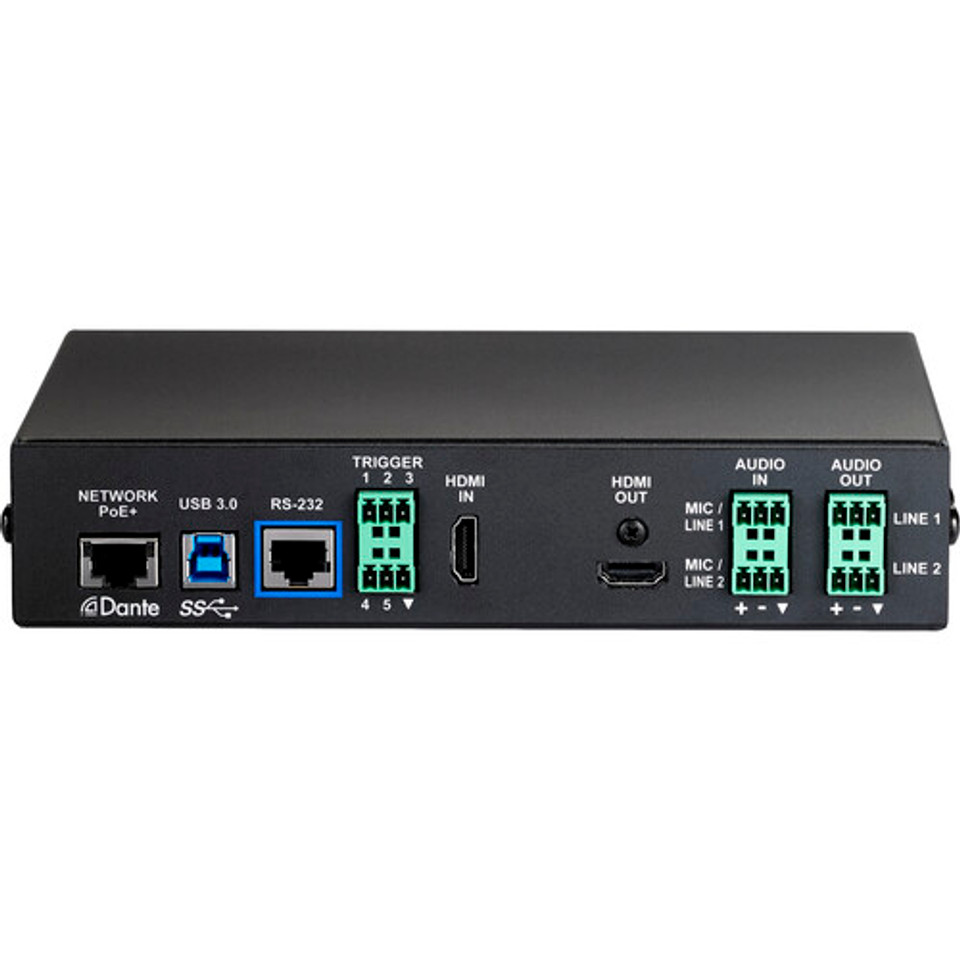

Connections
Video Inputs :
HDMI In, up to 1080p/60 resolution (Full HD), Pair with up to 4 EasyIP cameras

HDMI Input :
Video and audio; up to1080p/60 Resolution (Full HD)

HDMI Output : Video and audio; up to1080p/60 Resolution (Full HD)

Audio Inputs :
Stereo USB, Stereo HDMI, Two balanced mic/line-level inputs, 4 Dante Input
Channels

Audio Outputs :
Stereo USB, Stereo HDMI, Two balanced line-level outputs, 4 Dante Output
Channels

Standards
USB Audio :
(record, playback)
2 channel (UAC), 16-bit resolution, 48 KHz sample rate
Audio Line :

Out 4-pin Phoenix type terminal block, Impedance: 50 ohms, Frequency response 20Hz –
20KHz, THD + noise < 0.02%, Maximum output level +12 dBu differential audio

Software
Browser-based user interface for configuration and administration; front panel
controls for IP address toggle, power reset, and factory reset; Telnet and RS-232
for external control

General
Power Requirements :

PoE+, 30W allocated, 14W typical use
Phantom Power to
Microphones :
48 VDC, 10 mA
Height : 1.72 in. (4.4 cm)
Width : 8.38 in. (21.3 cm)
Depth : 6.0 in. (15.2 cm)
Weight : 2.65 lb. (1.2 kg)
Operating temperature :

32° to 104° F (0° to 40° C)
Storage temperature :

23° to 140° F (-5° to 60° C)

Humidity (relative) : Operating and Storage: 20% to 80% non-condensing
