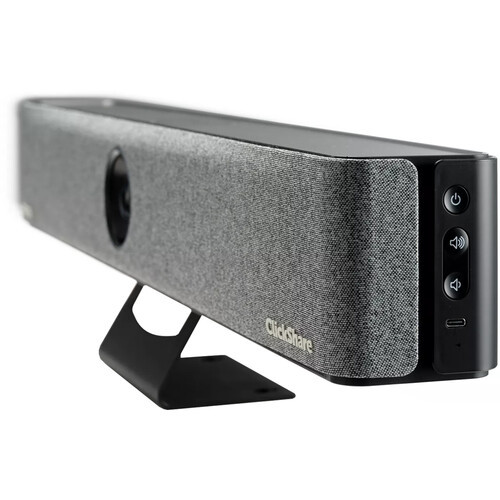

Barco R9861632USB1 ClickShare All-in-One Video Bar Core with One Button

The ClickShare All-in-One Video Bar Core from Barco equips your conference space with a video and audio sharing solution for your next hybrid meeting. The core features a UHD 4K camera with an ultrawide 120° field of view and 3x digital/ePTZ zoom. Six built-in microphones and two speakers deliver a seamless audio experience. The core includes a single ClickShare button for integration with personal computers for intuitive screen sharing.

Key Features

• Up to UHD 4K Video at 30 fps
• 120° Field of View, 3x Digital Zoom
• USB-C Host Connection
• Includes One Button
• 6 MEMS Beamforming Microphones
• HDMI, USB-A, and LAN Connectivity
• Group Framing and Composition Modes
• Two 10W Speakers, 15′ Audio Pickup Range
• Wireless Control via Wi-Fi, ClickShare

Specifications

Key Specs
Resolution and Frame Rate UHD 4K at up to 30 fps
Image Sensor Size-Unspecified CMOS
System Connection USB-C 3.0 / 3.1/3.2 Gen 1

Sensor
Resolution and Frame Rate UHD 4K at up to 30 fps
Image Sensor Size-Unspecified CMOS
Field of View 120°
Zoom 3x (Digital)

General
System Connection USB-C 3.0 / 3.1/3.2 Gen 1
Bluetooth No
Wi-Fi Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz)
Power Source AC Adapter
Low-Light Correction No
OS Compatibility
Windows 10 or Later
macOS 11 or Later
Mobile App Compatible
Yes: Android & iOS
App Name: ClickShare App
Microphone 6
Microphone Features Beam Forming, Noise Cancellation

Environmental
Operating Temperature 32 to 104°F / 0 to 40°C
Operating Humidity 0 to 85%
Storage Temperature -4 to 140°F / -20 to 60°C
Storage Humidity 0 to 90% (Non-Condensing)

Physical
Privacy Shutter No
Certifications CE, FCC
Dimensions (W x H x D) 25.2 x 3.9 x 4.0″ / 640.0 x 98.0 x 101.0 mm
Weight 5.5 lb / 2.5 kg

Packaging Info
Package Weight 9.815 lb
Box Dimensions (LxWxH) 27.9 x 8.2 x 6.6″
