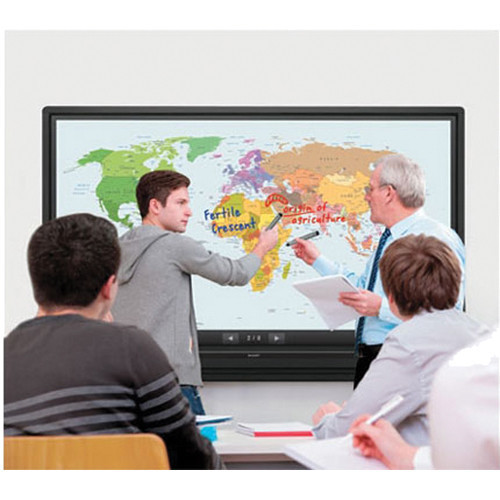

Sharp AQUOS BOARD PN-L603B 60" Edge-Lit LED Backlight Interactive Display System

Free Shipping
(No reviews yet) Write a Review
  • Sharp AQUOS BOARD PN-L603B 60" Edge-Lit LED Backlight Interactive Display System
  • Sharp AQUOS BOARD PN-L603B 60" Edge-Lit LED Backlight Interactive Display System


Sharp AQUOS BOARD Overview

Make your meetings, classrooms, and web-conferences more engaging and interactive with the Sharp AQUOS BOARD PN-L603B 60" Edge-Lit Interactive Display System. The AQUOS BOARD enables up to 50 people to collaborate on mobile devices such as PCs, tablets and smartphones. Up to four users can write at the same time. A 10-point touch screen supports multiple gestures and works with touch pens. Sharp Touch Display Link software (included) is used for multifaceted wireless communication.

Key Features
  • Up to Four People Can Write at Same Time
  • Collaborate with up to 50 Mobile Devices
  • 10-Point IR Touchscreen
  • Web-Conferencing Options
  • Business-Class MFP Connectivity
  • Works with Touch Pens
  • Software for Wireless Communication

Simultaneous Writing

10-point touch LCD panel allows up to 4 people to write on the screen at the same time using touch pens or fingers
Participants can take an active part in meetings, brainstorming sessions, classroom interactions, and more
Discussions and presentations become more interactive

User-Friendly Pen Software Interface

Using a touch pen, you can easily launch and display the Pen Software user interface, a menu that provide easy access to pen settings and functions
Each touch pen has its own dedicated menu, which can be displayed even when up to 4 people are writing on the screen at the same time
Supports 11 languages (English, German, Spanish, French, Italian, Dutch, Portuguese, Russian, Simplified Chinese, Traditional Chinese, and Japanese)

Smooth and Responsive Touch Pen

A pressure sensor at the tip of this slim and lightweight pen lets you write with high precision and with an effortless and uninterrupted flow

Handwriting Recognition

The LCD monitor features a handwriting recognition function for converting selected onscreen handwriting into standard text
This function allows you to utilize onscreen content to make neat and legible minutes of your meetings

Touch-Operated OSD

Pressing the Touch Menu button displays an onscreen menu that lets you easily switch input sources, change volume level, or turn the touch-screen function on and off without using a remote controller

Front-Mounted Speakers

Two speakers (10W + 10W) are mounted low on the front of the LCD monitor to deliver clearer sound

Input/Output Terminals

The LED monitor comes standard-equipped with input/output terminals on the side and the bottom of the monitor to enable easy connection with a wide variety of equipment
Array of terminals includes three HDMI ports, two D-Sub ports, two DisplayPort terminals (one input, one output), and two USB ports for use with the touchscreen
One of the USB ports can be assigned to a regularly connected PC, such as a host PC used to operate the LCD; the other USB port facilitates temporary connection to another PC, such as the one used by a meeting participant. This allows easy PC connection without the need to switch the USB cable

Minimize Glare and Fingerprints

Protecting the screen is an anti-glare film that helps to reduce glare and reflections and minimize fingerprints on the glass

MFP Connectivity

Documents and images scanned from a color-scan-capable Sharp multi-function printer (MFP) can be imported directly to the Sharp Pen Software for display on the AQUOS BOARD system
The image data shown onscreen, including notations, can be saved to a PC or sent directly to an MFP for printout

Touch Display Link Software

The software enables the following interactive functions on the AQUOS BOARD display and mobile devices connected via wireless LAN: Sharing of onscreen content, transfer of files, interactive onscreen writing and drawing, and remote control of the AQUOS BOARD display from mobile devices
Up to 50 mobile devices can be connected simultaneously
Files can be exchanged between mobile devices even if they are not connected to the AQUOS BOARD display
Users can capture onscreen images and save them on their mobile devices to make personally annotated memos (personal memo)
Touch Display Link also connects two AQUOS BOARD interactive display systems on the same network (intranet, VPN, etc.) to enable larger-scale interactive communication


Active Area 52.3 x 29.4" / 133 x 75 cm
Touchscreen Technology Infrared (IR)
Multi-Touch Points 10
Resolution 1920 x 1080
Bit Depth / Color Support 8-Bit+FRC (1.07 Billion Colors)
Brightness 300 cd/m²
Contrast Ratio 3000:1
Response Time 6 ms (GtG)
Backlight Technology Edge LED
Pixels Per Inch (ppi) .01631 ppi
Video System PAL / SECAM
Input Ports 1 x DisplayPort Video
2 x 1/8" / 3.5 mm Audio
2 x 15-Pin VGA Video
3 x HDMI Video
Output Ports 1 x 1/8" / 3.5 mm – Audio
1 x DisplayPort – Video
USB Ports 1 x USB (Version Unspecified) Type-A
2 x USB 2.0 Type-B
Operating System Support Windows
Power Consumption 185.0 W
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Glass Thickness 0.1" / 3 mm
Wall Mounting 400 x 200 mm
Certifications FCC, UL, cUL, as per Manufacturer
Operating Temperature 41 to 95°F / 5 to 35°C
Operating Humidity 20 to 80%
Dimensions 56.6 x 35.0 x 3.7" / 144.0 x 89.0 x 9.4 cm
Weight 101.5 lb / 46 kg
Packaging Info
Package Weight 138.1 lb
Box Dimensions (LxWxH) 63 x 40 x 11"
View AllClose

Warranty Information

1 Year Parts & Labor Manufacture Warranty
