Description
Samsung PH43F-P Overview
With a built-in media player and expandability options, the Samsung PH43F-P 43"-Class Full HD Smart LED Commercial Display is designed to support a variety of content types to suit your needs. It features DVI-I, two DisplayPort, and two HDMI inputs to display your digital HD content, plus two USB ports for multimedia playback. The PHF series also has two built-in 10W speakers and supports computer-free video wall setups.
Key Features
- Full HD (1920 x 1080) Native Resolution
- 60 Hz Refresh Rate / 8 ms Response Time
- 700 cd/m² Brightness
- 3000:1 Contrast Ratio
- Built-In Wi-Fi & Ethernet Connectivity

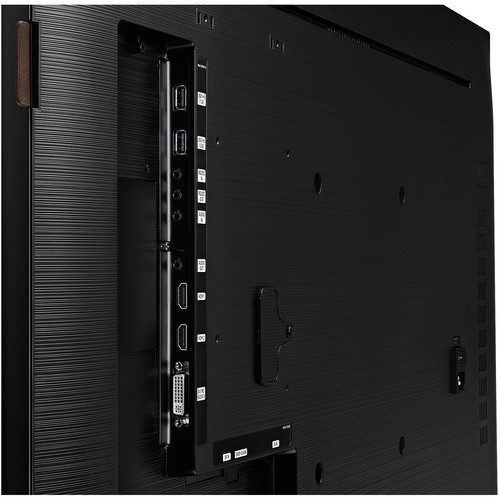

- DVI-I, 2 x DisplayPort, 2 x HDMI Inputs
- Dual Built-In 10W Speakers
- IP5X Dust-Resistant Rating
- Digital Signage-Capable
Embedded Media Powered by TIZEN
- The 3D graphic engine is designed to provide enhanced 3D graphic performance while keeping scrolling text moving smoothly; it also supports playback of up to three videos concurrently
- Built-in security architecture allows for stability and security through three layers of supplementation for applications, platform, and system
- SW Development Kit (SDK) and Remote Web Inspector (RW) help you develop what you need for your signage application; as a web standard-based open platform, it is compatible with HTML5
- SSSP 4.0 user screen is designed for quick access for web apps thanks to the URL Launcher
Content Creation, Scheduling, and Deployment Tools with MagicInfo Player S4
- Designed for enhanced overall performance while supporting images up to 5120 x 5120 resolution and over 100 text boxes
- When the optional Touch Overlay option is utilized, you can navigate the web browser through the tap of a finger on the display, mitigating the need for additional computers
- The display can function as a content management solution that allows you to play media files, set and edit playback schedules, and configure the display as a video wall and control device through use of the Wi-Fi connection, on/off timer, and graphical user interface
- Enables large organizations to manage and monitor multiple digital signage displays through a single integrated server
Anti-Glare Panel
Equipped with a non-glare front panel, the PHF series is designed to reduce natural and ambient light interference to help ensure continuous readability in nearly any location, making it well suited as a QSR menu board or airport flight schedule board.
Centralized IR Receiver
The display's integrated centralized IR (infrared) receiver helps ensure flexible user control, allowing you to navigate the IR functionality from various directions.
IP5X Dust-Resistant Design

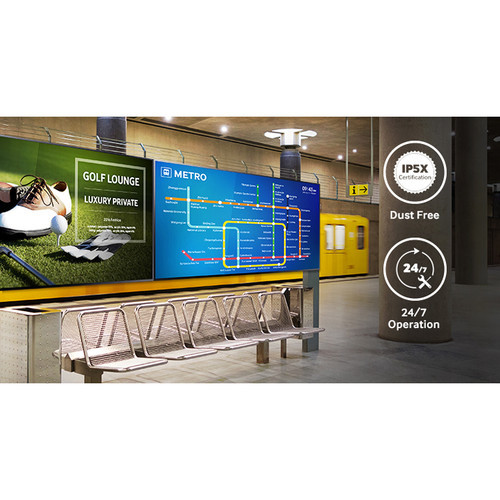

The PHF series is IP5X certified, so you won't have to worry about dust accumulating on displays installed in dust-prone areas, such as subway trains or external platforms.
Augment Playback Options with an Optional PIM
The PHF series can accept an optional Samsung PIM, which uses OPS (Open Pluggable Specification) connectivity to enable power and video source delivery over a single cable with no power cord.
Additional Features
- 72% Color Gamut
- Mega Dynamic Contrast Ratio
- Temperature sensor
- Pivot Display
- Clock battery (up to 168 hours of clock keeping)
- Magic Clone (via USB)
- Auto source switching & recovery
- Image rotation
- Button Lock
- DisplayPort 1.2 daisy-chaining with HDCP support
- Firmware updates via network
- Computer-less video walls with an external source
- Mobile control
- Backup player
Samsung PH43F-P Specs
Display
| Screen Size (Diagonal) | 43" |
| Resolution | 1920 x 1080 |
| Panel Type | LCD |
| Bit Depth / Color Support | 8-Bit+FRC (1.07 Billion Colors) |
| Brightness | 700 cd/m² |
| Viewing Angle (H x V) | 178 x 178° |
| Screen Area | 37.04 x 20.84" / 940.89 x 529.25 mm |
| Contrast Ratio | 3000:1 |
| Response Time | 8 ms |
| Refresh Rate | 60 Hz |
| Horizontal Frequency | 30 to 81 kHz |
| Vertical Frequency | 48 to 75 Hz |
| Dot Pitch | 0.49 x 0.49 mm |
| Backlighting Technology | Edge LED |
| Pixel Clock Frequency | 148.5 MHz |
Connectivity
| Input Ports | 1 x DVI-I Video 2 x DisplayPort 1.2 Audio, Video 2 x HDMI 2.0 Audio, Video 1 x 1/8" / 3.5 mm Audio |
| Output Ports | 1 x DisplayPort 1.2 – Audio, Video 1 x 1/8" / 3.5 mm – Audio |
| USB Ports | 2 x USB 2.0 - Audio/Photo/Video (Rear) 1 x USB 2.0 - Control (Rear) |
| Ethernet Ports | Rear: 1 |
| Digital Media Slot | None |
General
| TV Tuner | No |
| HDCP Support | Yes, Version 2.2 |
Surface
| Haze Level | 44% |
Audio
| Built-In Speakers | Yes, 2 x 10 W |
| Speaker Configuration | 2-Channel |
| Processing | DTS |
Hardware
| Operating System | Tizen 2.4 |
| Storage | 8 GB |
| RAM | 2.5 GB DDR3 1866 MHz |
Convenience
| Supported Video File Types | H.263, H.264/AVC, MPEG, MPEG2, MPEG4, VP8, VP9 |
| Supported Audio File Types | AC3 |
| Supported Photo File Types | JPEG, PNG |
Electrical
| Power Consumption | Maximum: 154.0 W Typical: 108.0 W Standby: < 0.5 W |
Environmental
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 10 to 80% |
| Certifications | CE, UL, as per Manufacturer |
Physical
| Wall Mounting | 200 x 200 mm |
| IP Rating | IP5X |
| Bezel Thickness | 6.9 mm (Right/Top/Left) 8.9 mm (Bottom) |
| Duty Cycle | 24 Hours / 7 Days |
| Dimensions | 37.8 x 21.7 x 1.2" / 959.7 x 550.1 x 29.9 mm |
| Weight | 20.72 lb / 9.4 kg |
Packaging Info
| Package Weight | 26 lb |
| Box Dimensions (LxWxH) | 40.7 x 24.8 x 5.1" |
