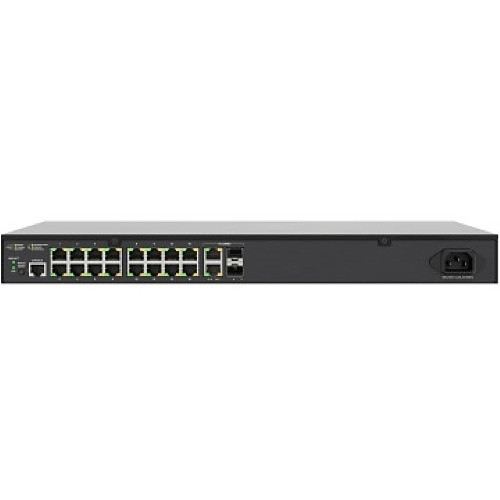

Luxul SW-505-16P-R Pro 2 SW Series 16 PoE+ 2-Combo

16 PoE+ Ports and 2 Gigabit RJ45/SFP Combo Ports with 185W of Total Power Budget, and Layer 2 and Layer 3 Functionality Optimized for AV over IP Applications.

Designed to support AV-over-IP (AVoIP) applications, the SW-505-16P-R includes 16 1-Gigabit PoE+ Ethernet ports, two non-powered Ethernet ports, and two 1-Gigabit SFP expansion ports (SFP and non-powered ethernet ports cannot be used at the same time). Both 1 Gb SFP ports can be aggregated for a connection speed of up to 2 Gb. The 16 PoE+ ports deliver both gigabit data and power over a single cable to 802.11af/ at-compliant devices, with a maximum of 30W per port.

For separately powered devices, these ports deliver network connectivity only. The total power budget is 185W for all
PoE+ ports combined. The advanced Layer 2/Layer 3 features a refreshed easy-to-use management interface to simplify configuration and make this switch ideal for use in single-switch AVoIP environments. Setup of IGMP/Multicast on a per-port basis is easy, improving the setup and reliability of running audio and video over the network simultaneously.

FEATURES

CONFIGURATION
• Refreshed, simplified user interface
• Supports inbound (ingress) ACL filtering
• Layer 2+ and Layer 3 static routing
• Multicast/IGMP snooping and querying feature
• Per port unregistered flooding
• 36Gbps switching capacity
• Dante and AES67 compatibility
• AV-over-IP compatible
• Easy port aggregation: 1 Gbps SFP ports are aggregable up to 4 Gbps
• 802.1Q VLAN and QoS support including DCSP

POWER
• 185W total power budget
• 16 PoE+ powered capable ports
• PoE Monitoring: Auto-Recovery and Power Scheduling
• PoE stays active with soft reboot (when configured)
• Dynamic PoE allocation

INSTALLATION
• Standard 19-inch rack mount
• Front-facing, selectable blue or green LEDs
• Rear-facing ports
• Low noise, variable speed fans
• Integrated port activity LEDs for easier diagnostics
• Luxul ProWatch support
• 3-year warranty
• Free lifetime phone support

SPECIFICATIONS

PROTOCOLS AND STANDARDS
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3af/ at,
IEEE 802.3x, IEEE 802.3ad, IEEE 802.3az, IEEE 802.1ab, IEEE 802.1d,
IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1v, IEEE 802.1w, IEEE
802.1X
FORWARDING CAPACITY 26.785 Mpps (64 byte packets)
SWITCHING CAPACITY 36Gbps
MAC TABLE Up to 8K (32768) MAC addresses
JUMBO FRAMES Frame sizes up to 9216 Bytes
INTERFACE OPTIONS RJ45: 10BASE-T, 100BASE-T, 1000BASE-T
SFP: up to 1Gbps
PoE MONITORING Auto-Recovery, Power Scheduling, PoE stays active with soft reboot
VLAN 802.1Q max 4094 VIDs & VLAN Trunking
Supports 1 Management VLAN
SURGE PROTECTION RJ-45 port surge protection tested to 6KV per EN61000-4-5
QUALITY OF SERVICE (QOS)
8 Hardware Queues
Queue Scheduling: Strict Priority and Weighted Round Robin (WRR) VLAN priority based
Layer 2 CoS QoS
Port based Layer 3 DSCP QoS
Port based bandwidth control
ACL Ingress Filtering
NETWORK DATA TRANSFER RATE
Ethernet: 10Mbps (Half-duplex), 20Mbps (Full-duplex)
Fast Ethernet: 100Mbps (Half-duplex), 200Mbps (Full-duplex)
Gigabit Ethernet: 1000Mbps (Half-duplex), 2000Mbps (Full-duplex)
SFP: 1 Gbps
MULTICAST SUPPORT
IGMP Snooping, Querier, Per Port Unregistered Flooding, Snooping and Querier available
on each VLAN, Port statstics allow users to
troubleshoot IGMP
LED Per Unit: System, Link/Act or PoE status
Per Port: Link/Activity and POE
PORT COUNT 16 PoE+, 2 Combo RJ45/SFP 1Gb ports
POWER BUDGET 185W, Configurable as statically assigned or dynamically allocated
Up to 30W per port
MAX POWER CONSUMPTION 218W @ 100VAC, 212W @ 240VAC
POWER SUPPLY Internal Switched Power, AC 100-240V, 50-60Hz input
OPERATING TEMPERATURE 32 F to 104 F (0 C to 40 C)
OPERATING HUMIDITY 10% to 90% (Non-condensing)
DIMENSIONS LxWxH IN. (MM) 17.4”x8.3”x1.75” (442 x 211 x 44mm)
WEIGHT LBS (KG) 6.25 (2.84)
CERTIFICATIONS FCC Part 15 Class A, IC, CE-EMC, CE-LVD, CB(IEC 62368-1), RCM,
VCCI, RoHS, UL, cUL, TAA, NDAA, UKCA
