Description
Samsung UM55H-E Overview

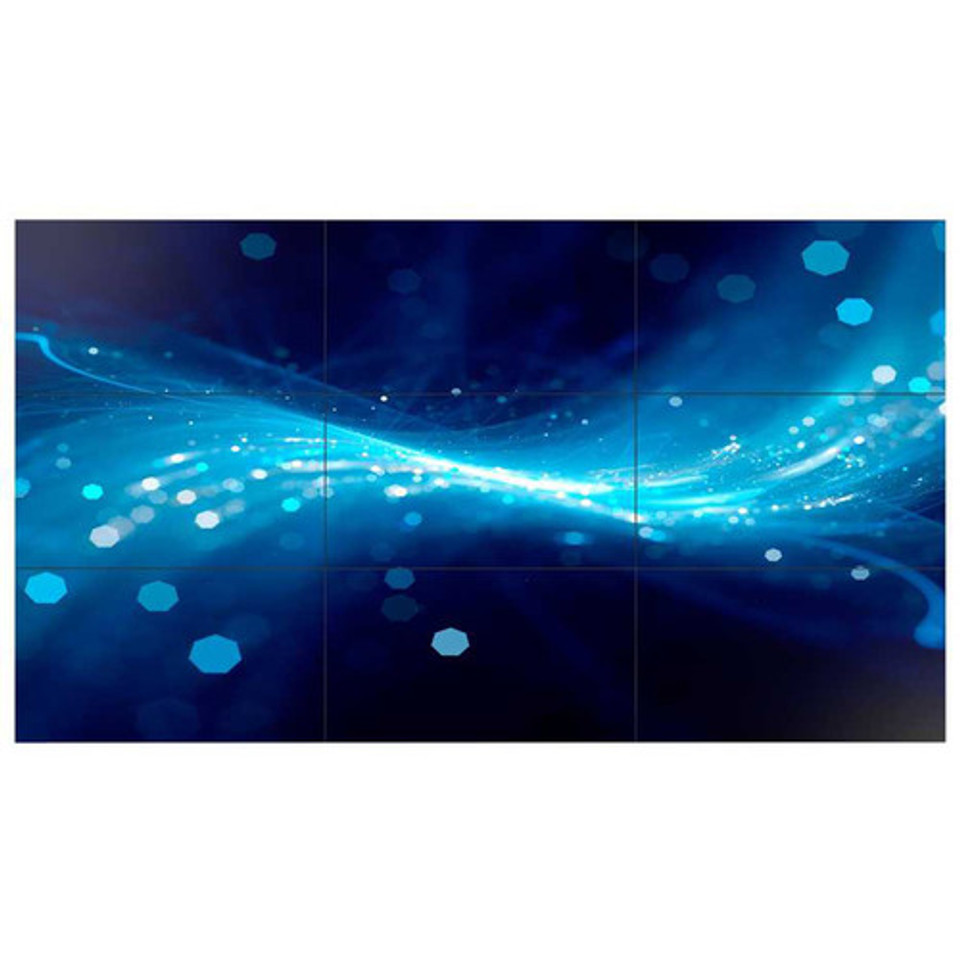

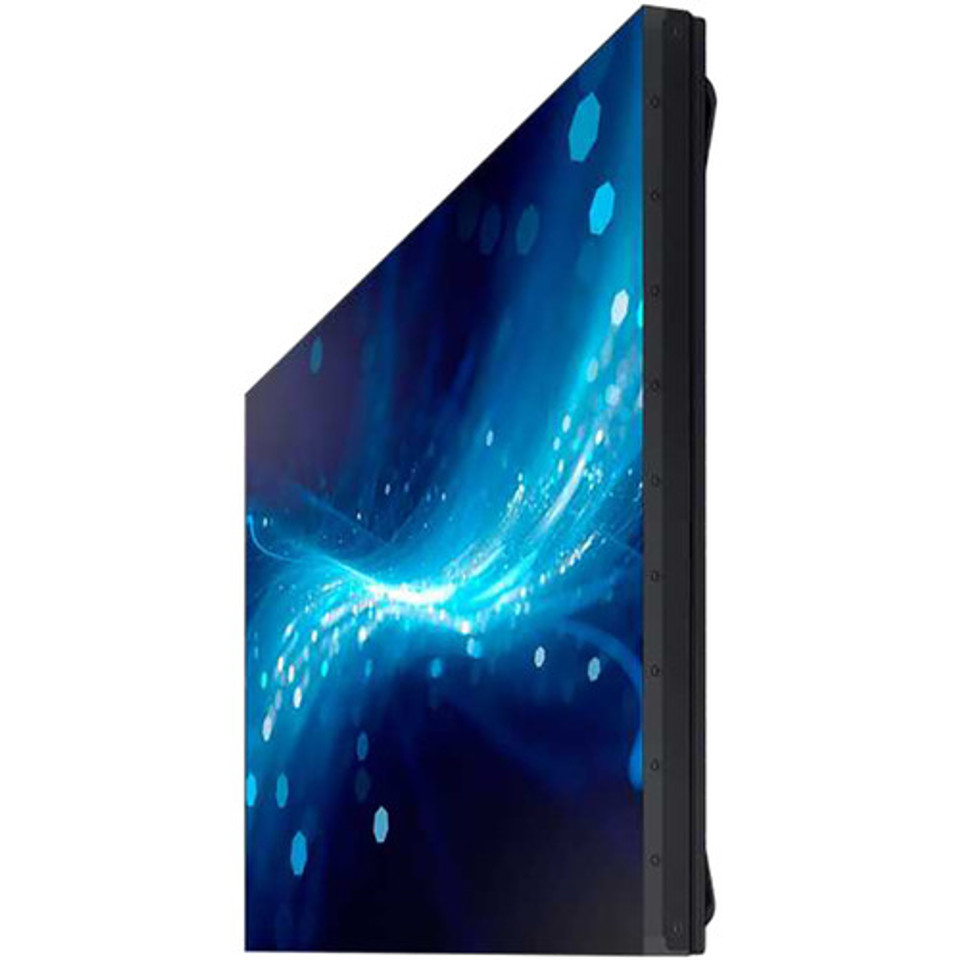

Create virtually seamless video wall matrices with the UMH-E Series 55" Ultra-Narrow Bezel Video Wall Display from Samsung. Built to operate 24/7, a non-glare, 500 cd/m2-bright panel delivers 1920 x 1080 resolution with improved visibility even in bright conditions. Factory calibration provides brightness and color uniformity across multiple displays. It features HDMI, DVI-D, D-Sub, and DisplayPort inputs, as well as USB, RS-232C, and RJ45 connections. You can achieve a 4K UHD resolution when daisy chaining multiple displays with the Display Port 1.2 digital loop-out feature.
Ultra-narrow bezels at 1.7mm bezel-to-bezel allow you to create virtually seamless video walls
Non-glare panel with 500 cd/m2 brightness for improved visibility in bright ambient light
Daisy chain up to 25 displays with the Display Port 1.2 digital loop-out to achieve 3840 x 2160 resolution
Factory calibration ensures uniform brightness and color across multiple displays
Built for 24/7 use
Samsung UM55H-E Specs
Display
| Screen Size (Diagonal) | 55" |
| Resolution | 1920 x 1080 |
| Brightness | 500 cd/m² |
| Viewing Angle (H x V) | 178 x 178° |
| Contrast Ratio | 4000:1 |
| Response Time | 8 ms |
| Backlighting Technology | Direct LED |
Connectivity
| Input Ports | 1 x 15-Pin VGA Video 1 x DVI-D Video 1 x DisplayPort 1.2 Audio, Video 2 x HDMI 2.0 Audio, Video 1 x 1/8" / 3.5 mm Audio |
| Output Ports | 1 x DisplayPort 1.2 – Audio, Video 1 x 1/8" / 3.5 mm – Audio |
| USB Ports | 1 x USB (Version Unspecified) |
| Ethernet Ports | 1 |
General
| HDCP Support | Yes, Version 2.2 |
Electrical
| Power Consumption | Maximum: 297.0 W Typical: 180.0 W Standby: 0.5 W |
Environmental
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 10 to 80% |
Physical
| Wall Mounting | 600 x 400 mm |
| IR Sensor | Yes, Detachable |
| Bezel Thickness | 5 mm (Bottom) 5 mm (Right) 13 mm (Top) 13 mm (Left) |
| Duty Cycle | 24 Hours / 7 Days |
| Dimensions | 47.7 x 26.9 x 3.8" / 121.2 x 68.2 x 9.7 cm (without Stand) |
| Weight | 46.3 lb / 21 kg |
