Device Type Video/audio/infrared/serial extender
Form Factor External
Connectivity Technology Wired
Data Link Protocol RS-232, HDMI, HDBaseT
Max Resolution 4096 x 2160 @ 60 Hz
Max Transfer Distance 230 ft
Compliant Standards HDCP 2.2, CCC, FCC, RoHS, cULus, RCM
Interfaces 1 x HDMI (input) – 19 pin HDMI Type A female 1 x IrDA (output) – terminal block 1 x IrDA (input) – terminal block 1 x RS-232 – terminal block 1 x HDMI (output) – 19 pin HDMI Type A female 1 x USB – mini-USB Type B
Power Device External power adapter
Voltage Required AC 120/230 V (50/60 Hz)
Power Consumption Operational 13 Watt
Service & Support Limited warranty – 10 years
Min Operating Temperature 32 °F
Max Operating Temperature 122 °F
Humidity Range Operating 20 – 90% (non-condensing)
Package Weight 3.5 lb
Box Dimensions (LxWxH) 13.6 x 8.3 x 2.6″
4K/Ultra HD capability, 60 Hz with 4 4:4 chroma sampling, plus support for HDR formats
HDBaseT extender kit for HDMI, power, and control

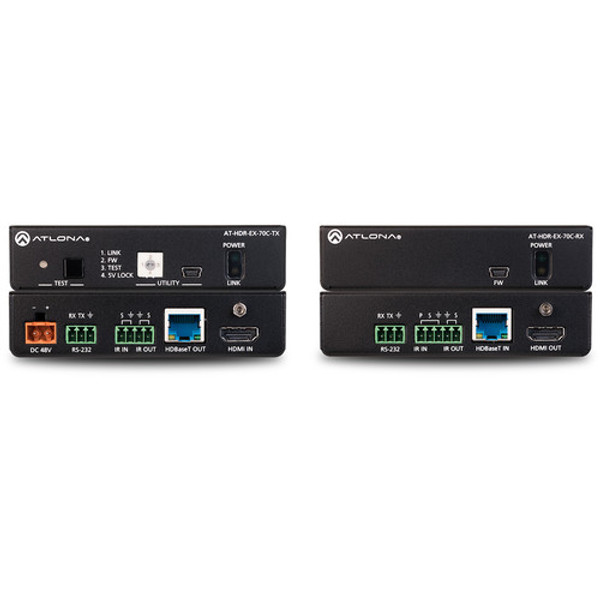

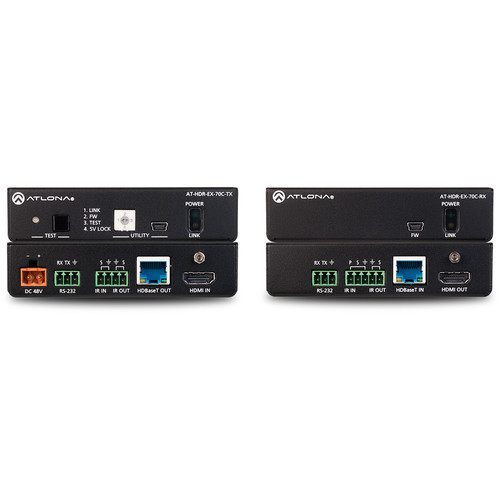

Atlona AT-HDR-EX-70C Overview Receiver powered by transmitter via PoE (Power over Ethernet)
Atlona AT-HDR-EX-70C Overview Extends RS-232, IR, and CEC control signals over HDBaseT HDBaseT link status testing
Atlona AT-HDR-EX-70C Overview Supports HDR and 4K/60 4:4:4 video content
The HDR-EX-70C-KIT is cost-effective and ideal for applications requiring the emerging 4K/Ultra HD and HDR sources and displays. It is compatible with all video resolutions, audio formats, and color space formats supported in the HDMI 2.0b specification, plus the ability to pass metadata for HDR content. The HDR-EX-70C-KIT supports 4K HDR10, 60 Hz and Dolby Vision, 30 Hz.
Atlona AT-HDR-EX-70C Overview An innovative yet practical solution for 4K HDR over HDBaseT
Video/audio/infrared/serial extender Form Factor External Networking Connectivity Technology Wired Data Link Protocol
RS-232, HDMI, HDBaseT Max Resolution 4096 x 2160 @ 60 Hz Max Transfer Distance 230 ft Features
Atlona AT-HDR-EX-70C Overview HDCP compliant, LPCM 7.1 support, Dolby TrueHD support, Dolby Digital Plus support, DTS support, LPCM 5.1 support, Dolby Atmos support, DTS:X support, Dolby Digital support, HDR support Compliant Standards HDCP 2.2 Expansion / Connectivity Interfaces
1 x HDMI (input) 19 pin HDMI Type A female
1 x IrDA (output) terminal block
1 x IrDA (input) terminal block
1 x RS-232 terminal block
1 x HDMI (output) 19 pin HDMI Type A female
1 x USB mini-USB Type B Miscellaneous Compliant Standards CCC, FCC, RoHS, cULus, RCM Power
Power Device External power adapter
Power Device Voltage Required AC 120/230 V (50/60 Hz)
Power Device Power Consumption Operational 13 Watt Manufacturer Warranty Service & Support
Power Device Limited warranty 10 years Environmental Parameters
Power Device Min Operating Temperature 32 °F
Power Device Max Operating Temperature 122 °F Humidity Range Operating
Power Device 20 90% (non-condensing) Packaging Info Package Weight 3.5 lb
Power Device Box Dimensions (LxWxH) 13.6 x 8.3 x 2.6″
SKU AT-HDR-EX-70C-KIT
