Inputs 1x HDMI Female, 1x RJ45 (HDBaseT) Female
Embedded Audio Input HDMI
Outputs 1x RJ45 (HDBaseT) Female, 1x HDMI Female
Transmitter Other I/O 1x Micro-USB 2.0 Input
Embedded Audio Output HDMI
Receiver Other I/O 1x Micro-USB 2.0 Input
HDR Support No
HDCP Support Yes, Version 1.4/2.2
EDID Support Manual Control
Max Transmission Distance DCI 4K, UHD 4K: 130′ / 39.6 m (via Cat 6/6a/7) 1080p: 230′ / 70.1 m (via Cat 6/6a/7)
Video Format HDMI (8/10/12-Bit 4:2:0 RGB, YUV) DCI 4K: 50/60 fps HDMI (8/10/12-Bit 4:4:4/4:2:2/4:2:0 RGB, YUV) DCI 4K: 24/25 fps HDMI (8/10/12-Bit 4:4:4/4:2:2/4:2:0 RGB, YUV) UHD 4K: 24/25/30/50/60 fps 1080p: 23.98/24/25/29.97/30/50/59.94/60 fps 1080i: 25/29.97/30 fps 720p: 50/59.94/60 fps 576p: 50 fps PAL: 25 fps 480p: 59.94/60 fps NTSC: 30 fps
DTS Compatibility DTS, DTS-HD Master Audio, DTS:X
Dolby Compatibility Dolby Atmos, Dolby Digital, Dolby Digital Plus, Dolby TrueHD
Supported Cable Types Cat 5e/6/6a/6e/7 UTP, FTP, STP
Transmitter Power I/O 1x Barrel (5 VDC at 3 A) Input
Receiver Power I/O 1x Barrel (5 VDC at 3 A) Input
Transmitter Power Consumption Device: (7.71 W) Power Supply: 100 to 240 VAC
Receiver Power Consumption Device: (7.71 W) Power Supply: 100 to 240 VAC
Certifications CE, CEC, FCC, RoHS
Operating Conditions 32 to 122 F / 0 to 50 C at 20 to 60% Humidity
Storage Conditions -4 to 140 F / -20 to 60 C
Transmitter Dimensions 4.2 x 3 x 0.93″ / 10.68 x 7.5 x 2.37 cm
Receiver Dimensions 4.2 x 3 x 0.93″ / 10.68 x 7.5 x 2.37 cm
Transmitter Weight 7.1 oz / 200 g
Receiver Weight 8.1 oz / 230 g
Package Weight 2.885 lb
Box Dimensions (LxWxH) 11.2 x 7.2 x 3″
Supports 4K/60 video at 4 2:0 chroma subsampling, HDR10 (10-bit), and HDCP 2.2 content protection.
Type HDBaseT HDMI Extender Kit (Transmitter + Receiver)
Video Support Up to 4K/60 (4:2:0), 8-bit + HDR10 (10-bit)
Transmission Distance Up to 230 ft (70 m) @ 1080p, 131 ft (40 m) @ 4K
Signal Support HDMI, IR (bidirectional), RS-232 (bidirectional)
HDCP HDCP 2.2 and earlier versions
Audio Formats LPCM 2.0, Dolby Digital, DTS Digital Surround
Connectors HDMI (Type A), HDBaseT (RJ-45), IR, RS-232 (3-pin terminal)
Power Supply 2 x external 5V DC power adapters included
Dimensions (Each Unit) Approx. 3.0 x 3.0 x 0.9 inches
Weight (Kit) Approx. 1.2 lbs
Operating Temperature 32 F to 122 F (0 C to 50 C), 32 F to 122 F (0 C to 50 C) Atlona EX70-2PSSpecs Inputs
This extender kit supports 4K/60 at 4 2:0 chroma subsampling and 10-bit HDR (HDR10), offering compatibility with a wide range of content sources while maintaining full HDCP 2.2 encryption compliance.

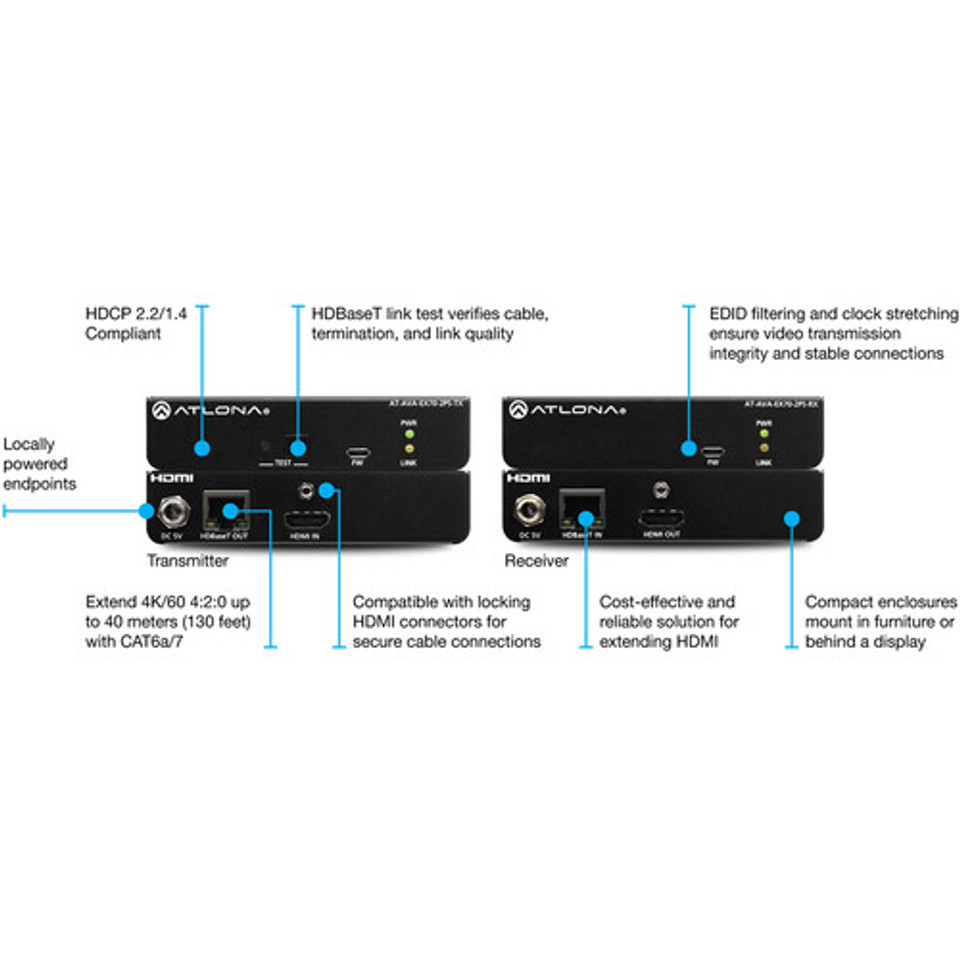

Extend your transmission of HDMI DCI/UHD 4K60 video signals up to 130′ using the Avance 4K HDMI Transmitter and Receiver HDBaseT Extender Kit from Atlona . The kit includes a transmitter, receiver, two power supplies, and surface mounting hardware to fit these compact units easily into your A/V environment in a classroom, conference room, or event space.
The transmitter inputs up to DCI/UHD 4K video via HDMI from a computer, Blu-ray, camera, or other HDMI source, and it sends the signal via HDBaseT over Cat 6/6a cable up to 130′ to the receiver. If transmitting up to 1080p60 video resolution, you can send the signal up to 230′ over Cat 6/6a. The units also support embedding up to 24-bit 192 kHz audio.

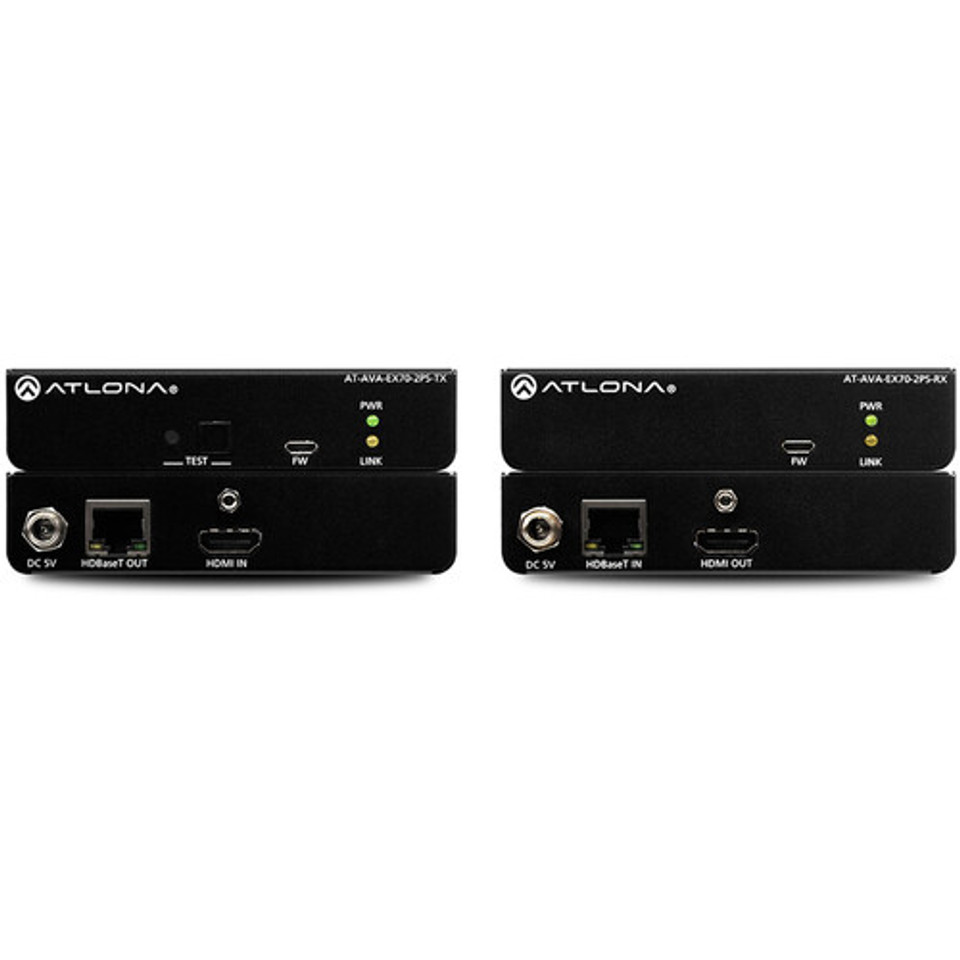

The extender system supports EDID filtering, HDCP 1.4/2.2 as well as CEC passthrough control. The front of the units feature LED status indicators for power, test, and link, and all the connectors are on the back. A micro-USB port on each unit allows you to update the firmware with future updates. Product Features
Extends 4K/UHD HDMI signals up to 230 ft (70 m) over CAT6A/7 cable using HDBaseT technology.
Supports 4K/60 video at 4:2:0 chroma subsampling, HDR10 (10-bit), and HDCP 2.2 content protection.
Transmits HDMI, bidirectional IR, and RS-232 control signals for integrated system management.
Advanced integration features ensure transmission of content to a remote TV at resolutions up to DCI 4K/UHD 4K General Characteristics
Dimensions (Each Unit): Approx. 3.0 x 3.0 x 0.9 inches
Weight (Kit): Approx. 1.2 lbs
1x HDMI Female Embedded Audio Input HDMI Outputs 1x RJ45 (HDBaseT) Female Transmitter Other I/O, Output HDMI Receiver Other I/O
1x Micro-USB 2.0 Input Receiver Interfaces Inputs 1x RJ45 (HDBaseT) Female Outputs, 2.0 Input Standards
1x HDMI Female HDR Support No HDCP Support Yes, Version 1.4/2.2 EDID Support Manual Control Transmission Max Transmission Distance DCI 4K, UHD 4K: 130′ / 39.6 m (via Cat 6/6a/7) 1080p: 230′ / 70.1 m (via Cat 6/6a/7)
Video Format HDMI (8/10/12-Bit 4:2:0 RGB, YUV), (8/10/12-Bit 4:4:4/4:2:2/4:2:0 RGB, YUV), 2560 x 1600 at 60 Hz, 2048 x 1536 at 60 Hz, 1920 x 1200 at 60 Hz, 1680 x 1050 at 60 Hz, 1600 x 1200 at 60 Hz, 1440 x 900 at 60 Hz, 1400 x 1050 at 60 Hz, 1280 x 1024 at 60 Hz, 1280 x 800 at 60 Hz, 1366 x 768 at 60 Hz, 1152 x 864 at 60 Hz, 1024 x 768 at 60 Hz, 800 x 600 at 60 Hz, 640 x 480 at 60 Hz DTS Compatibility
Video Format DCI 4K 50/60 fps, 24/25 fps
Video Format UHD 4K 24/25/30/50/60 fps
Video Format 1080p 23.98/24/25/29.97/30/50/59.94/60 fps
Video Format 1080i 25/29.97/30 fps
Video Format 720p 50/59.94/60 fps
Video Format 576p 50 fps
Video Format PAL 25 fps
Video Format 480p 59.94/60 fps
Video Format NTSC 30 fps PC Resolutions
DTS, DTS-HD Master Audio, DTS X Dolby Compatibility
Video Format Dolby Atmos, Dolby Digital, Dolby Digital Plus, Dolby TrueHD Supported Cable Types
Video Format Cat 5e/6/6a/6e/7 UTP, FTP, STP Power
Video Format Transmitter Power I/O 1x Barrel (5 VDC at 3 A) Input
Video Format Receiver Power I/O 1x Barrel (5 VDC at 3 A) Input
Transmitter Power Consumption Device (7.71 W)
Transmitter Power Consumption Power Supply 100 to 240 VAC
Receiver Power Consumption Device (7.71 W)
Receiver Power Consumption Power Supply 100 to 240 VAC General Certifications CE, CEC, FCC, RoHS
Receiver Power Consumption Operating Conditions 32 to 122 F / 0 to 50 C at 20 to 60% Humidity Storage Conditions -4 to 140 F / -20 to 60 C Transmitter Dimensions 4.2 x 3 x 0.93″ / 10.68 x 7.5 x 2.37 cm Receiver Dimensions 4.2 x 3 x 0.93″ / 10.68 x 7.5 x 2.37 cm Transmitter Weight 7.1 oz / 200 g Receiver Weight 8.1 oz / 230 g Packaging Info Package Weight 2.885 lb
Receiver Power Consumption Box Dimensions (LxWxH) 11.2 x 7.2 x 3″
Receiver Power Consumption The Atlona AVA-EX70-2PS-KIT enables long-distance transmission of 4K/UHD HDMI signals up to 230 feet using HDBaseT over a single CAT6A or CAT7 cable, ensuring reliable delivery of high-resolution content across large spaces.
Receiver Power Consumption This extender kit supports 4K/60 at 4:2:0 chroma subsampling and 10-bit HDR (HDR10), offering compatibility with a wide range of content sources while maintaining full HDCP 2.2 encryption compliance.
Receiver Power Consumption Integrated support for bidirectional IR and RS-232 control allows for two-way device management between source and display, simplifying remote system integration in commercial AV deployments.
Receiver Power Consumption Both the transmitter and receiver are compact, surface-mountable, and come with individual power supplies, eliminating the need for PoE infrastructure and enabling installation flexibility in diverse environments.
EDID pass-through, HDMI audio support, and fast signal locking capabilities help streamline setup and maintain compatibility with professional AV receivers, displays, and control systems.
SKU AT-AVA-EX70-2PS-KIT
Brand Atlona
MPN AT-AVA-EX70-2PS-KIT
GTIN 00846352006631, 846352006631
UPC 846352006631
