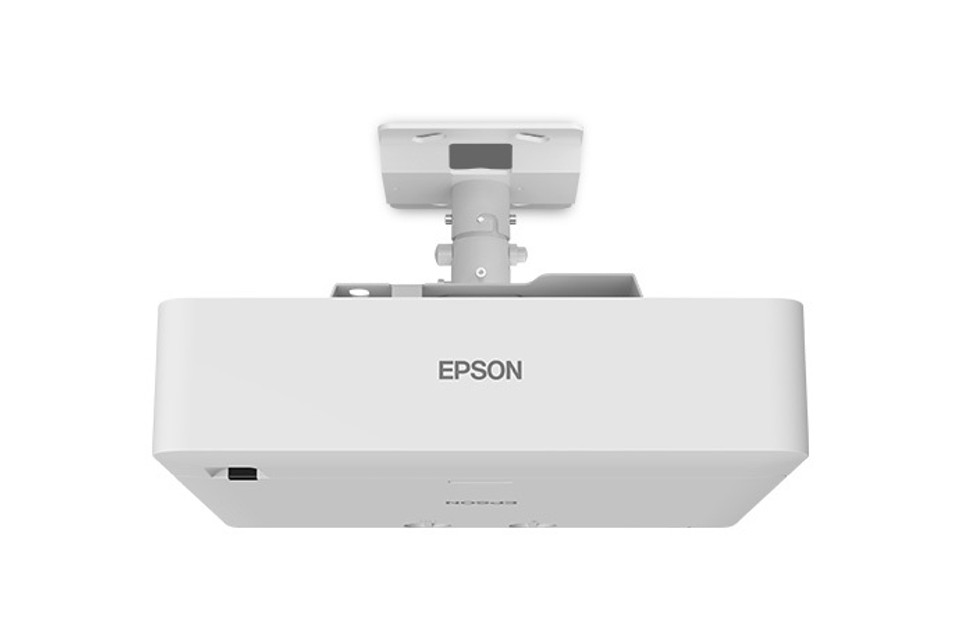

Epson PowerLite L770U 3LCD Laser Projector with 4K Enhancement

Deliver brilliant displays with remarkable brightness and 4K Enhancement¹.

The versatile PowerLite L770U laser projector brings strikingly clear images to meeting rooms, classrooms and beyond. This conveniently lightweight, compact projector offers native WUXGA with 4K Enhancement¹ and an incredible 7,000 lumens of brightness², providing smooth, ultra bright, detailed images—even up close. Display images up to 500” and switch between a variety of aspect ratios, from standard 16:10 to ultra wide 21:9 that provides for a more immersive experience—ideal for hybrid work environments as well as classrooms. The more information that needs to be displayed on a single screen, the more critical the need for a larger display and higher resolution.

Simple to install, the PowerLite L770U is easy to operate from start to finish. Designed with convenience in mind, this projector features a 20,000-hour virtually maintenance-free laser light source and air filter³. Plus, simplify complex multi-projector applications with the optional attachable PixAlign^™ camera.

• Best-in-Class Color Brightness⁴; 7,000 lumens²
• WUXGA with 4K Enhancement¹ for clear, detailed images
• 20,000-hour, virtually maintenance-free laser light source and air filter³
• Picture up to 500″ diagonal in 16:10, plus ultra wide 16:6 and 21:9

Ultra bright, true-to-life images
Best-in-Class Color Brightness⁴ with 3-chip 3LCD technology and 7,000 lumens of color and white brightness²
4.6 million pixels on screen
WUXGA with 4K Enhancement¹ provides a visibly smoother and sharper display, even at close viewing distances; accepts 4K content
Virtually maintenance-free
20,000-hour laser light source and air filter³
Large, ultra wide display
Display images up to 500″ diagonal either in standard 16:10 and 16:9 or in ultra wide 16:6 and 21:9 for immersive video conferencing
Streamlined installation
Wide lens shift, 1.6x optical zoom, built-in edge blending and geometric correction tools via on-screen menu or Epson^® Professional Projector Tool software for Windows^® and macOS^®
Versatile connectivity options
HDBaseT^®, 2x HDMI^® inputs, HDMI output, RJ-45, RS-232 and control management tools

• Simplified operation and content sharing — auto power-on, split screen⁵, screen sharing with Epson iProjection^™6 and optional wireless networking with the ELPAP11 adapter
• Customizable brightness modes — set the projector to maintain a consistent brightness level over time, or set the brightness to Extended to help maximize the life of the laser light source
• Optional PixAlign camera — adds powerful multi-projector tools; blending assist for super-wide displays; simple stacking without an external PC; screen matching and auto color calibration
• Easily programmable with the built-in media player and content creation app⁷ — includes templates, effects, color filters and customizable options; playlist and playback functions allow for seamless content management directly or via the network

Eco Features

• RoHS compliant
• Recyclable product⁸
• Epson America, Inc. is a SmartWay^® Transport Partner⁹

Better Products for a Better Future™
For more information on Epson’s environmental programs, go to eco.epson.com

What’s In The Box:

• PowerLite L770U laser projector
• Power cable
• Computer cable (HDMI)
• Projector remote control with batteries
• Quick Reference card
• Cable cover

Specifications
Projection System RGB liquid crystal shutter projection system
Projection Method Front/rear/ceiling mount
LCD Size 0.67″ (C2
Fine)
Driving Method Poly-Silicon TFT Active Matrix
Pixel Number 2,304,000 dots (1920 x 1200) x 3
Native Resolution 1920 x 1200 (WUXGA) 4KE1
Resize 640 x 480, 800 x 600, 1280 x 1024, 1400 x 1050
Aspect Ratio Supports 4:3, 16:10, 16:9*, 16:6*, 21:9*
* With vertical image shift control within letterbox area.
Pixel Arrangement Cross stripe
Color Brightness3 Color Light Output: 7,000 lumens
White Brightness3 White Light Output: 7,000 lumens
Contrast Ratio Up to 2,500,000:1
Brightness Uniformity (Typical) 86%
Color Reproduction Up to 1.07 billion colors
Size (Projected Distance) 50″ – 500″
Projected Distance 80″ screen 2.33 m – 3.78 m
Lens Shift (Manual) Vertical: ±50%; Horizontal: ±20%
Keystone Correction Vertical: ±30 degrees;
Horizontal: ±30 degrees
Light Source Laser Diode
Laser Light Source Life4 Normal: 20,000 hours; Quiet: 20,000
hours; Extended: 30,000 hours

Projection Lens (Standard)
Type Optical Zoom (manual)/Focus (manual)
F-Number 1.5 – 1.7
Focal Length 20.0 mm – 31.8 mm
Zoom Ratio 1.00 – 1.6x (optical)
Throw Rate Range 1.35 – 2.20 (optical)
Lens Cover Lens cap (without string)

Other
Operating Temperature 32 ˚F to 113 ˚F (0 ˚C to 45 ˚C)
Power Supply Voltage 100 V – 240 V ±10%, 50/60 Hz AC
Auto Power On Signal Detection on HDMI/Plug-In Detection
Sleep Mode Yes (with timer)
HDMI CEC Control Yes
Power Consumption
382W (Normal)
285W (Quite)
275W (Extended)
2.0W Standby (Communication on)
0.5W Standby (Communication off)
Fan Noise 31 dB (Normal Mode); max. 23 dB (ECO Mode)
Security Security cable hole, Kensington lock provision

Interfaces
HDMI (HDCP 2.3) x 2
HDMI Out x 1
HDBaseT x 1
Variable Audio Out: Mini Stereo x 1
USB Connector Type A x 1
USB Connector Type B x 1
Serial: RS-232C x 1
Wired LAN RJ-45 x 1

Other (Continued)
Split Screen5 Yes (Up to 2 screens)
A/V Mute Yes
Camera Yes
Speaker(s) 10 W (mono)
Content Playback Yes
Quick Corner® Yes
Corner Wall Yes
Curved Surface Yes
Edge Blending Yes
Screen Sharing Yes

Effective Scanning Frequency Range (Digital)
Pixel Clock 25.1 MHz – 594 MHz
Horizontal 26 kHz – 135 kHz
Vertical 23.98/24/25/29.97/30/50/59.94/60 Hz

Dimensions (W x D x H)
Excluding Feet 17.32″ x 11.97″ x 4.80″
Including Feet 17.32″ x 12.59″ x 5.35″
Weight 19.1 lb

Remote Control
Features Source Search, HDMI, USB, Computer, LAN, Power,
Aspect, Color Mode, Volume, E-Zoom, A/V Mute, Freeze, Menu,
Home, Auto, Enter, Esc, Default
Operating Angle Rear: Right/Left: -55 to +55 degrees; Upper/
Lower: +75 to +15 degrees; Front: Right/Left: -30 to +30
degrees; Upper/Lower: 0 to +60 degrees
Operating Distance 19.7 ft (6 m)

Eco Features
RoHS compliant
Recyclable product8
Epson America, Inc. is a SmartWay® Transport Partner9

Support
Epson ConnectionSM
Pre-sales support: U.S. and Canada 800-463-7766
Internet website: www.epson.com
Service Programs
The projector has a limited warranty of 3 years. Epson Road
Service program with free Next-Business-Day replacement10,
PrivateLine® dedicated toll-free support (U.S. and Canada only)

What’s Included
PowerLite L770U laser projector, power cable, computer
cable (HDMI), projector remote control with batteries, Quick
Reference card, cable cover

Ordering Information
PowerLite L770U V11HA96020
Replacement Air Filter (ELPAF56) V13H134A56
Wireless LAN Adapter (ELPAP11) V12H005A02
Custom Micro-Adjustable Mount (ELPMBPRH) V12H809001
Universal Projector Mount (ELPMBPJG) V12H808001
PowerLite Pilot™ 3 (ELPCB03) V12H927020
Pixie Plus ELPSP10
External Camera V12HA46010
External Speaker (ELPSP02) V12H467020
DC-07 Document Camera V12H759020
DC-13 Document Camera V12H757020
DC-21 Document Camera V12H758020
1-Year Extended Service Plan EPPEXPE1
2-Year Extended Service Plan EPPEXPE2
