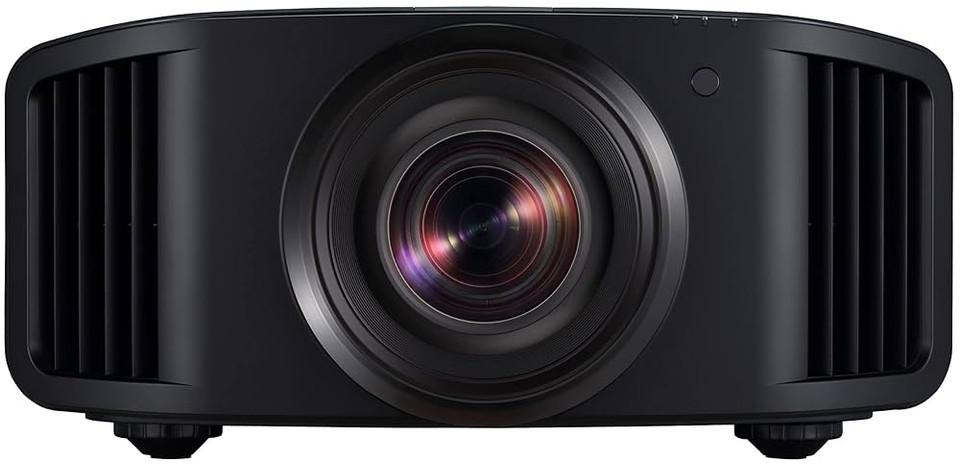

JVC DLA-NZ9 Black 8K Home Theater Projector

? Overview

The JVC DLA-NZ9 is a flagship home theater projector engineered for high-end installations where image quality, longevity, and advanced features are paramount. It uses a blue laser light source (instead of a traditional lamp) and native 4K D-ILA panels, combined with an advanced 8K pixel-shifting system, delivering exceptional clarity, contrast, and color.

---

?️ Core Technologies

1. D-ILA Projection System

D-ILA (Direct-Drive Image Light Amplifier) is JVC’s proprietary take on LCoS (Liquid Crystal on Silicon), combining the sharpness of LCD with the contrast of DLP. It’s known for:

• Deep blacks

• Smooth gradations

• Low pixel visibility (no “screen door” effect)

2. 8K e-shiftX Technology

While the native resolution is 4K (4096 × 2160), the NZ9 utilizes 8K e-shiftX, a four-direction pixel-shifting system that fires the image four times per frame to simulate 8192 × 4320 resolution. This enhances detail perception without the artifacts common in older pixel-shift designs.

3. BLU-Escent Laser Light Engine

This projector replaces the traditional lamp with a blue laser + phosphor system:

• Rated lifespan: ~20,000 hours

• Instant on/off

• Maintains brightness and color consistency far longer than UHP lamps

• Enables dynamic light control for better black levels and highlight clipping in HDR

---

? Color & Contrast

• Brightness: 3,000 lumens (very high for a D-ILA projector)

• Native contrast ratio: ~100,000:1

• Dynamic contrast: Effectively infinite due to dynamic laser dimming

• Color support: Wide color gamut approaching full DCI-P3 (using internal filter)

• HDR: Supports HDR10, HDR10+, and HLG

• HDR processing: Frame Adapt HDR dynamically adjusts tone mapping scene by scene for more accurate HDR reproduction

---

? Optics & Lens System

• Lens: 100 mm, all-glass lens with 18 elements in 16 groups

• Zoom: 2x motorized zoom

• Throw ratio: 1.35 – 2.75:1

• Lens shift: ±100% vertical, ±43% horizontal (motorized with memory presets)

• Focus: Motorized with memory

• Image masking and geometry controls: Includes electronic masking, keystone, and installation modes

This premium lens is critical in maintaining edge-to-edge sharpness, especially when using lens shift or large zoom ranges.

---

? Gaming & Input Support

• HDMI 2.1 (48 Gbps): Handles up to 8K @ 60 Hz and 4K @ 120 Hz

• Low Latency Mode: Reduces input lag for gaming

• Motion handling: Features frame interpolation (Clear Motion Drive) and Motion Enhance to improve fast content clarity

Ideal for high-end gaming setups that demand fluid visuals and minimal delay.

---

? Processing & Features

• Auto Calibration (with external sensor)

• Color Management System (6-axis)

• Gamma, white balance, grayscale controls

• Installation Modes (up to 10 presets for lens, zoom, shift, mask, etc.)

• ISFccc Certified: Supports ISF day/night calibrations

• 3D Ready: Supports active shutter 3D with optional emitter and glasses

• Anamorphic Lens Support: Includes stretch modes for cinemascope screens

---

? Connectivity

• 2 × HDMI 2.1 (48 Gbps)

• LAN (Ethernet)

• USB (for firmware)

• RS-232C

• 12V trigger output

• IR and wired remote support

• 3D sync port

---

? Size, Weight, Power

• Dimensions (W × H × D): 500 × 234 × 528 mm (≈19.7″ × 9.2″ × 20.8″)

• Weight: 25.3 kg (~55.8 lbs)

• Shipping weight: ~30.7 kg (~67.7 lbs)

• Power consumption: ~440 W in standard operation

• Fan noise: ~24 dB in quiet mode

This is a large, heavy projector best suited for ceiling or pedestal mounting in dedicated theaters.

---

✅ Best For

• Premium, dark-room home theaters

• Projection onto large screens (up to 200″+)

• Reference-level HDR movie watching

• High-end 4K/120Hz gaming setups

• Professional installers & enthusiasts
