Display System 3-Chip Polysilicon TFT LCD
Native Chip Resolution 1920 x 1200 (WUXGA)
Supported Resolutions Maximum: 1400 x 1050
Maximum Brightness 5500 Lumens
Uniformity 87%
Aspect Ratio Native: 16:10 Supported: 16:9 Supported: 4:3
Dynamic Contrast Ratio 15,000:1
Color Depth 10-Bit (1.07 Billion Colors)
Scan Horizontal: 15 to 92 kHz Vertical: 50 to 85 Hz
Focus Manual
Lens f/1.65 – 2.55 (f = 21.34 – 37.99 mm)
Lens Shift Vertical: 50% Horizontal: 10%
Optical Zoom Manual: 1.8x
Throw Ratio 1.26 to 2.3:1
Projection Size 50 – 300″ / 127.00 – 762.00 cm
Keystone Correction Vertical: 30 Horizontal: 30
Ceiling Mountable Yes
Rear Screen Projection Yes
Wireless LAN / Wi-Fi None
Light Source Lamp (1 x UHE)
Lamp Power 300 W
Expected Lamp Life Medium Brightness: 5000 Hours Low Brightness: 10,000 Hours
Fan Noise Medium Brightness: 38 dB Low Brightness: 28 dB
Security Cable Lock Slot
AC Input Power 120 to 240 VAC, 50 / 60 Hz
Power Consumption Medium Brightness: 462 W Low Brightness: 356 W Standby Mode (Lamp Off): 3 W Standby Mode (Lamp Off): 0.5 W
Dimensions (W x H x D) 18.5 x 6.8 x 13.9″ / 47.0 x 17.3 x 35.3 cm Including feet 18.5 x 5.2 x 12.6″ / 47.0 x 13.2 x 32.0 cm Excluding feet, lens, and cable cover
Weight 15.2 lb / 6.9 kg With standard lens
Package Weight 23.5 lb
Box Dimensions (LxWxH) 24.5 x 21.5 x 9.5″

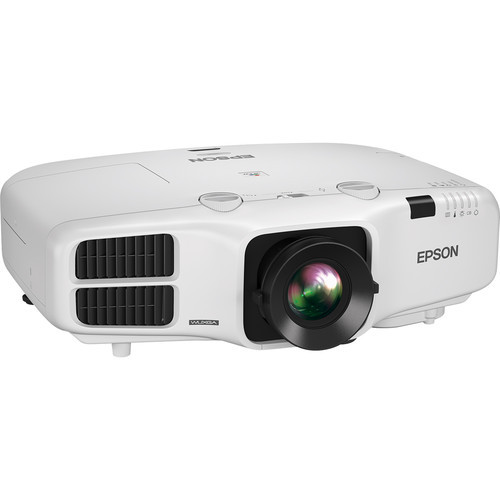

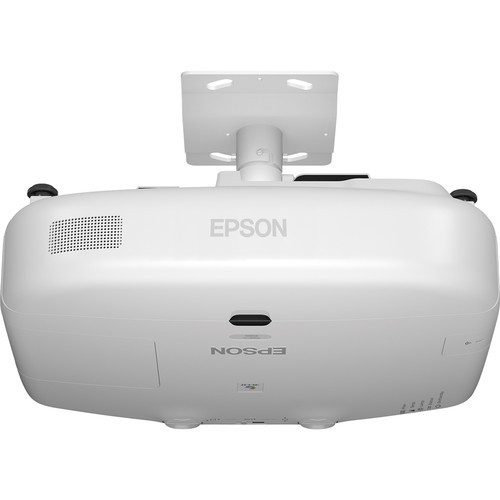

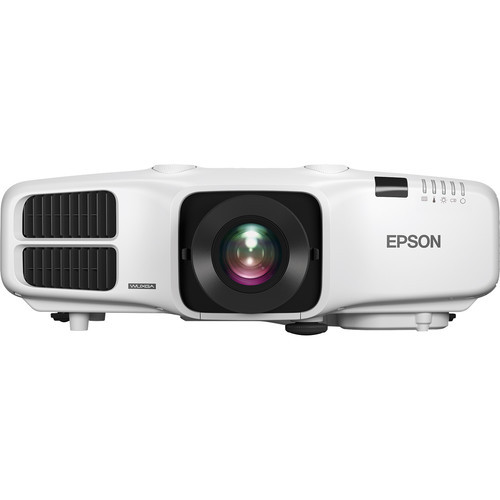

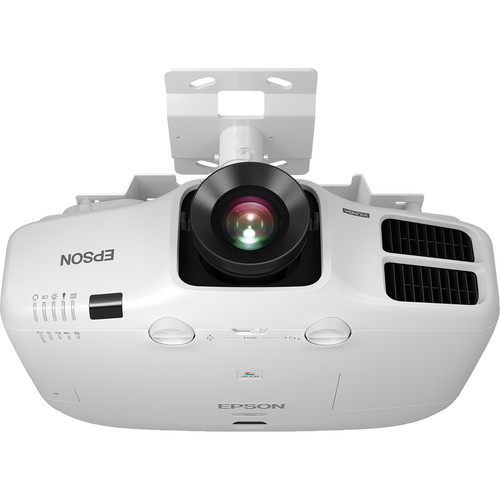

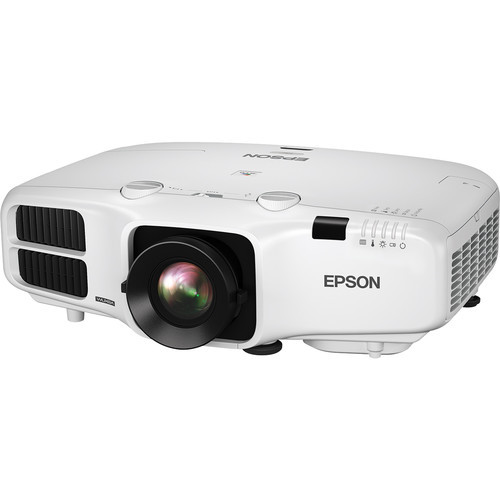

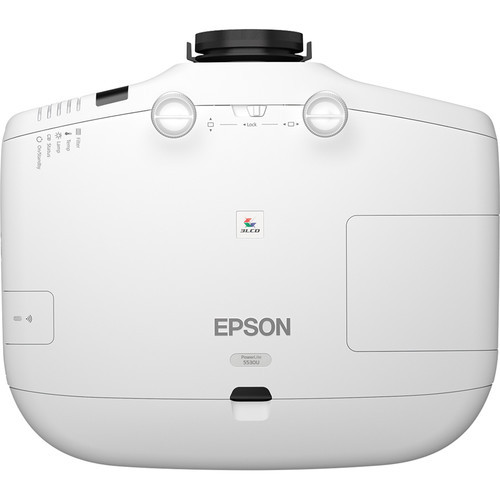

Epson 5530U Overview Enjoy bright, vibrant images with the white Epson PowerLite 5530U 5500-Lumen WUXGA 3LCD Projector . Its 5500 lumens of brightness, combined with its 15,000:1 dynamic contrast ratio, will help it overcome ambient light in many situations and help retain detail in dark areas of the image without compromising overall brightness. Its 1920 x 1200 native resolution will help ensure that text is clear at most viewing distances.
Brightness of 5500 Lumens WUXGA (1920 x 1200) Native Resolution
Brightness of 5500 Lumens HDBaseT, VGA, BNC Component, 2 x HDMI In
Ethernet and RS-232 Controllable 3LCD Color Accuracy 3LCD, 3-chip technology is designed to provide enhanced color brightness and a wider color gamut.
Ethernet and RS-232 Controllable High Color and White Brightness Levels
Ethernet and RS-232 Controllable Both color and white brightness of 5500 lumens.
Ethernet and RS-232 Controllable Enhanced Sharpness and Detail Up to 15,000:1 dynamic contrast ratio for enhanced detail.
Lens Shift Equipped with 10% horizontal and 50% vertical lens shift for flexible installation options.
HDBaseT and two HDMI inputs are designed to provide for easy integration with nearly any system.
Remote Management and Control Tools The PowerLite 5530U is also compatible with the Crestron RoomView and Extron software.
The optional wireless LAN adapter is compatible with WEP, WPA, WPA2-PSK, and WPA2-EAP security protocols, and provides for wireless screen mirroring with Miracast. In the Box
Optional Wireless Networking Epson PowerLite 5530U 5500-Lumen WUXGA 3LCD Projector (White)
Optional Wireless Networking Remote Control with Batteries VGA Cable EasyMP Software CD
Power Cable Limited 2-Year Warranty on Projector, 90-Day Warranty on Lamp Epson 5530U Specs Image Display Display System 3-Chip Polysilicon TFT LCD
Power Cable Native Chip Resolution 1920 x 1200 (WUXGA) Supported Resolutions
Power Cable Maximum 1400 x 1050 Maximum Brightness 5500 Lumens Uniformity 87%
Aspect Ratio Native 16:10
Aspect Ratio Supported 16:9, 4:3
Aspect Ratio Color Depth 10-Bit (1.07 Billion Colors) Scan
Aspect Ratio Horizontal 15 to 92 kHz
Aspect Ratio Vertical 50 to 85 Hz Lens Focus Manual Lens
Lens Shift Vertical 50%
Lens Shift Horizontal 10% Optical Zoom
Lens Shift Manual 1.8x
Lens Shift Throw Ratio 1.26 to 2.3:1
Projection Size 50 300″ / 127.00 – 762.00 cm Features Keystone Correction
Projection Size Vertical 30
Projection Size Horizontal 30 Ceiling Mountable Yes Rear Screen Projection Yes
1 x HDMI (HDMI Type-A) Audio, Video Input, with MHL Support (HDMI Type-A) Audio, Video Input
Input/Output Connectors Inputs/Outputs 1 x VGA (DE-15/DB-15) Video Input
1 x 5BNC Video Input 2 x 1/8″ / 3.5 mm Mini Audio Input
1 x VGA (DE-15/DB-15) Video Output 1 x 1/8″ / 3.5 mm Mini Audio Output
1 x Ethernet (RJ45) LAN Input
1 x USB 2.0 (USB Type-A) Control, Service Input, 2.0 (USB Type-A) Service Input 1 x 1/8″ / 3.5 mm Mini Remote Input
1 x HDBaseT (RJ45) Audio, Video Input 1 x RS-232 (DE-9/DB-9) Control Input
Input/Output Connectors Inputs/Outputs Wireless LAN / Wi-Fi None General Light Source Lamp (1 x UHE) Lamp Power 300 W Expected Lamp Life
Input/Output Connectors Inputs/Outputs Medium Brightness 5000 Hours
Input/Output Connectors Inputs/Outputs Low Brightness 10,000 Hours
Fan Noise Medium Brightness 38 dB
Fan Noise Low Brightness 28 dB Security Cable Lock Slot
Fan Noise AC Input Power 120 to 240 VAC, 50 / 60 Hz
Power Consumption Medium Brightness 462 W
Power Consumption Low Brightness 356 W
Standby Mode (Lamp Off) 3 W, 0.5 W
Power Consumption Dimensions (W x H x D) 18.5 x 6.8 x 13.9″ / 47.0 x 17.3 x 35.3 cm Including feet 18.5 x 5.2 x 12.6″ / 47.0 x 13.2 x 32.0 cm Excluding feet, lens, and cable cover Weight 15.2 lb / 6.9 kg With standard lens Packaging Info Package Weight 23.5 lb
Power Consumption Box Dimensions (LxWxH) 24.5 x 21.5 x 9.5″
SKU PL-5530U
Brand Epson
MPN V11H824020
GTIN 00010343932593, 010343932593
UPC 010343932593
