Display System 3-Chip Polysilicon TFT LCD
Native Chip Resolution 1920 x 1080 (Full HD), 1920 x 1080 (Full HD) On-Screen Resolution Up to 4K UHD (3840 x 2160) via Pixel-Shift Technology Supported Resolutions
On-Screen Resolution Up to 4K UHD (3840 x 2160) via Pixel-Shift Technology
Supported Resolutions Maximum: DCI 4K – 4096 x 2160
Maximum Brightness White: 4000 Lumens Color: 4000 Lumens
Aspect Ratio Native: 16:9
Dynamic Contrast Ratio 2,000,000:1
Color Depth 10-Bit (1.07 Billion Colors)
Focus Manual
Lens f/1.5 (f = 3.9 mm)
Optical Zoom None
Throw Ratio 0.28 to 0.38:1
Keystone Correction Horizontal: 3 Horizontal: 3
Supported HDR Input Formats HDR10, Hybrid Log Gamma
Digital Zoom 1.35x
Built-In Speaker Yes (Stereo)
Speaker Power 10W

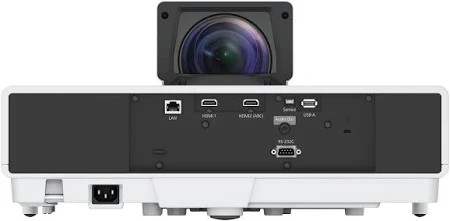

Inputs/Outputs 3 x HDMI 2.0 (HDMI Type-A) Audio, Video Input 1 x USB 2.0 (USB Type-A) Data Input 1 x USB 2.0 (USB Type-A) Power Output 1 x USB 2.0 (Mini-USB) Service Input 1 x 1/8″ / 3.5 mm Mini Audio Output 1 x RS-232 (DE-9/DB-9) Control 1 x Ethernet (RJ45) LAN
HDCP Support Version 2.2
Wireless LAN / Wi-Fi None
Light Source Laser Phosphor
Expected Lamp Life Medium Brightness: 20,000 Hours
Fan Noise Full Brightness: 36 dB Low Brightness: 23 dB
Security Security Bar
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Consumption Full Brightness: 381 W Low Brightness: 236 W Standby Mode (Lamp Off): 2 W
Operating Temperature 41 to 86 F / 5 to 30 C
Operating Humidity 20 to 80%
Dimensions (W x H x D) 18.0 x 14.7 x 9.0″ / 45.7 x 37.3 x 22.9 cm Including Feet 18.0 x 14.7 x 8.2″ / 45.7 x 37.3 x 20.8 cm Excluding Feet
Weight 20.5 lb / 9.3 kg
Package Weight 28.845 lb
Box Dimensions (LxWxH) 23.1 x 20.9 x 13.4″
2,000,000 1 dynamic contrast ratio with advanced black density control individually pulses the laser light to precisely suppress stray light within the signal to deepen black levels
Supports 4 3 resize, 16:10, and 1.9:1 resize aspect ratios
The included HDMI adapter houses the Android TV operating system with the Google Assistant for smart TV and voice control functionality. The projector’s three HDMI inputs let you connect multiple digital high-definition sources at once to minimize the need to switch cables.
Ultra-short throw laser-array technology produces large images while placed just inches from your wall or screen no complex wiring or ceiling mount required
4K PRO-UHD Projection Technology uses pixel-shift technology to produce a 4K UHD on-screen image for exceptional sharpness
10-bit HDR processing accepts 100% of the source information to help faithfully reproduce HDR content for enhanced visual performance
4000 lumens of color and white brightness from the laser diode light source helps display content bright enough for all-day viewing in nearly any lighting environment 3-chip LCD technology capable of displaying the Rec.709 color space (in Digital Cinema Mode only)
2,000,000:1 dynamic contrast ratio with advanced black density control individually pulses the laser light to precisely suppress stray light within the signal to deepen black levels
Real time 12-bit analog-to-digital video processing helps to provide smooth tonal transitions and eliminate banding, blocking, and other compression artifacts
Supports 4:3 resize, 16:10, and 1.9:1 resize aspect ratios
Micro Lens Array (MLA)
Analog slider focus control Up to 60 Hz refresh rate
4:2:2 (4K 60 fps HDR10), 4:4:4 (4K 30 fps HDR10), 4:4:4 (4K 60 fps no HDR) Instant on/off 3D-compatible with active RF 3D glasses
One ARC-compatible HDMI port
Color & White Brightness of 4000 Lumens 4K UHD 3840 x 2160 On-Screen Resolution, 4000 Lumens
HDR10 & HLG Support
Three HDMI 2.0 Inputs
Analog Audio Output Built-In 10W Stereo Speakers
IR Remote, HDMI Extension Cable Included Epson LS500 Specs Image Display Display System 3-Chip Polysilicon TFT LCD
Maximum DCI 4K – 4096 x 2160 Maximum Brightness
White 4000 Lumens
Aspect Ratio Native 16:9
Aspect Ratio Color Depth 10-Bit (1.07 Billion Colors) Lens Focus Manual Lens f/1.5 (f = 3.9 mm) Optical Zoom None
Aspect Ratio Throw Ratio 0.28 to 0.38:1 Features Keystone Correction
Aspect Ratio Horizontal 3
Supported HDR Input Formats HDR10, Hybrid Log Gamma Digital Zoom 1.35x Built-In Speaker Yes (Stereo) Speaker Power 10W
3 x HDMI 2.0 (HDMI Type-A) Audio, Video Input
1 x USB 2.0 (USB Type-A) Data Input, 2.0 (USB Type-A) Power Output, 2.0 (Mini-USB) Service Input 1 x 1/8″ / 3.5 mm Mini Audio Output 1 x RS-232 (DE-9/DB-9) Control
1 x Ethernet (RJ45) LAN HDCP Support Version 2.2 Hardware
Input/Output Connectors Inputs/Outputs Wireless LAN / Wi-Fi None General Light Source Laser Phosphor Expected Lamp Life
Input/Output Connectors Inputs/Outputs Medium Brightness 20,000 Hours
Fan Noise Full Brightness 36 dB
Fan Noise Low Brightness 23 dB Security Security Bar
Fan Noise AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Consumption Full Brightness 381 W
Power Consumption Low Brightness 236 W
Standby Mode (Lamp Off) 2 W
Power Consumption Operating Temperature 41 to 86 F / 5 to 30 C
Power Consumption Operating Humidity 20 to 80%
Power Consumption Dimensions (W x H x D) 18.0 x 14.7 x 9.0″ / 45.7 x 37.3 x 22.9 cm Including Feet 18.0 x 14.7 x 8.2″ / 45.7 x 37.3 x 20.8 cm Excluding Feet Weight 20.5 lb / 9.3 kg Packaging Info Package Weight 28.845 lb
Power Consumption Box Dimensions (LxWxH) 23.1 x 20.9 x 13.4″
SKU LS500-WH
