Premium, compact large-venue laser projector with 4K Enhancement1.

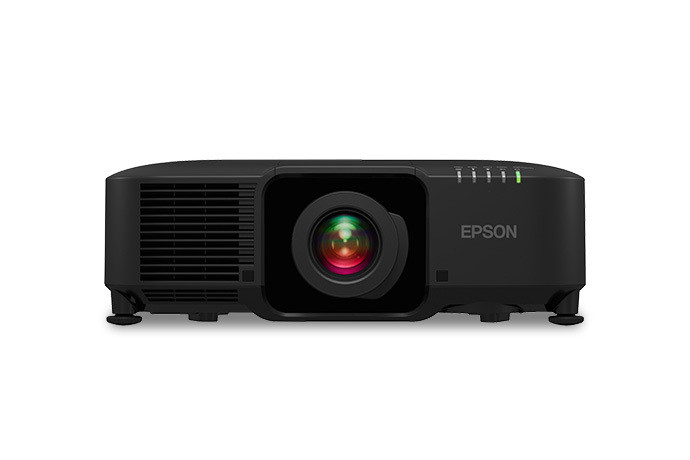

The EB-PU2010B, part of Epson's Pro series offers larger-than-life images from a sleek, powerful projector that’s easy to install. The world's smallest and lightest 10,000 lumen projector, it’s compatible with a wide range of optional powered lenses, including a zero offset, .35 ultra short-throw lens.
Delivering best-in-class color brightness, with 10,000 lumens of color brightness and 10,000 lumens of white brightness, this 3-chip, 3LCD projector features a virtually maintenance-free 20,000 hour laser light source and air filter.

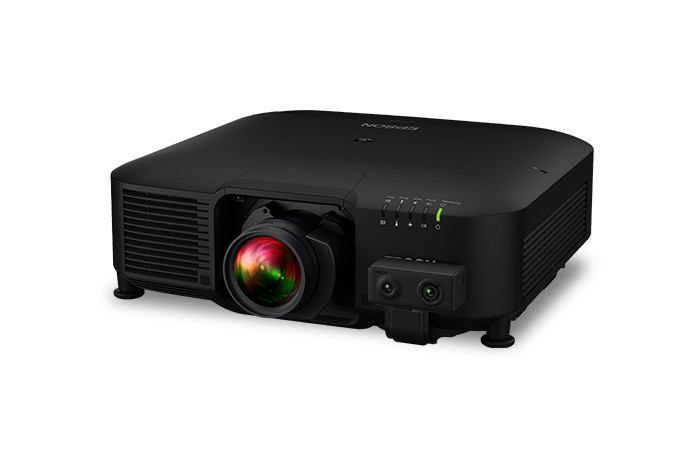

Full HD WUXGA resolution and 4K Enhancement Technology (1920 x 1200 x 2) mean you get crystal-clear, lifelike images. SDI video in/out and built-in NFC function reduces the time to install and commission multiple projectors. And a clip-on optional external camera provides access to powerful automated tools including auto color calibration, screen matching of multiple projectors, tiling assist for edge blends and the stacking assist function.
NOTE: Camera, lens, air filter and mount accessories sold separately.
- 10,000 lumens color/white brightness
- Native WUXGA with 4K Enhancement Technology
- Laser light source — up to 20,000 hours of use
- 9 optional powered lenses
- NFC function built-in
Specifications
Projection System High-aperture Epson® 3LCD,
3-chip technology
Projection Method Front/rear/ceiling mount
Driving Method Poly-silicon TFT Active Matrix
Pixel Number 2,304,000 dots (1920 x 1200) x 3 chips
Signal Input Maximum Display Resolution: 4096 x 2160
(resizing display) Display Resolution: 1920 x 1200 pixels
Native Resolution WUXGA with 4K Enhancement1
(1920 x 1200 x2)
Resolution on Screen WUXGA with 4K 1 Enhancement/4.6
million pixels 1
Aspect Ratio Supports 4:3, 16:9, 16:10
Pixel Arrangement Cross stripe
Color Brightness Color Light Output: 10,000 lumens
White Brightness White Light Output: 10,000 lumens
Contrast Ratio 2,500,000:1 (Dynamic Contrast: On)
Brightness Uniformity (typical) 85%
Color Reproduction Up to 1.07 billion colors
Keystone Correction
Vertical: ±45 degrees;
Horizontal: ±30 degrees
Illumination Technology Laser Phosphor
Projection Lens (Standard)
Standard Lens ELPLM15 (sold separately)
Type Powered shift/focus/zoom
F-number 2.0 - 2.1
Focal Length 14.8 mm - 17.7 mm
Zoom Ratio Optical zoom 1 – 1.6
Throw Ratio Range 1.57 - 2.56
Lens Shift Vertical: ±60%; horizontal: ±18%
Other Features
Operating Temperature 32
Power Supply Voltage 100 – 240 V ±10%, 50/60 Hz AC
Power Consumption
559 W (Normal, Custom)
469 W (Medium, Quiet, Extended)
2.0 W Standby (Communication on)
0.5 W Standby (Communication off)
Fan Noise 35dB (Normal Mode), 34dB (Medium Mode),
30dB (ECO Mode)
Security Security cable hole, lens lock, Kensington
lock provision, wireless LAN unit lock
Video I/O
Input Signal Input Video Signal (HDMI, DVI-D and HDBaseT
ports) 480i/480p/576i/576p/720p/1080i/1080p/3840 x
2160/4096 x 2160

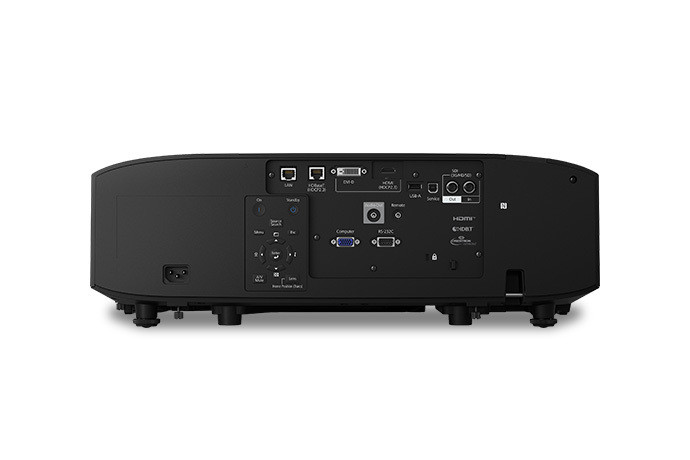

Interfaces
DVI-D x 1
HDMI (HDCP 2.3) x 1
HDBaseT x 1
3G-SDI in/out
RGB D-sub 15pin
Variable audio out: Mini Stereo x 1
USB connector Type-B x 1
USB connector Type-A x 2
Serial: RS-232c x 1
Remote Stereo Mini
Network: RJ-45
Dimensions (W x D x H)
Excluding Feet, Lens 21.5" x 17.2" x 6.5"
Weight 37 lb
Remote Control
Features Power, source search selection, lens shift, zoom,
focus, test pattern selection, A/V mute, freeze, user ID, auto,
aspect, color mode, number, page up and down, E-zoom,
volume, help, menu, enter, esc and pointer functions
Operating Angle
Angle Front: Right/Left: 60 to +60 Upper/Lower +30
to 20 degrees
Angle Rear: Right/Left 30 to +30 Upper/Lower +50
to +10 degrees
Operating Distance 98 ft
