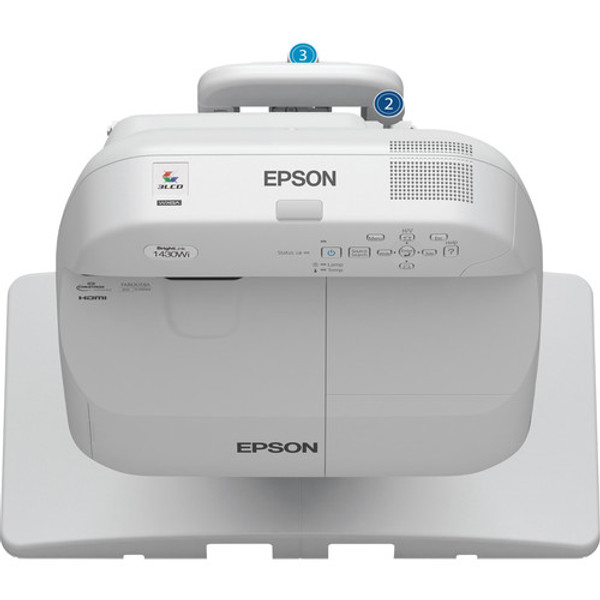

Name: Epson BrightLink Pro BL-1430WI Interactive WXGA 3LCD Projector with Speaker (V11H665520 )
Brand: Epson
SKU: BL-1430WI
Price: 1697.99 USD
Availability: InStock

Epson V11H665520 Overview

The Epson BrightLink Pro 1430Wi Interactive WXGA 3LCD Projector delivers 3300 lumens of white, color, and interactive brightness with a low noise level of only 28 dB when using the Eco mode. To ensure sharp detail with deep blacks and brilliant whites, the BrightLink Pro 1430Wi provides an impressive 10,000:1 contrast ratio. The projector also features high definition WXGA 1280 x 800 native resolution, a 3LCD three-chip projection system, LAN connectivity for remote management/control, and a 245W UHE lamp that features a long life up to 6000 hours in Eco mode. It also supports wireless iOS/Android mobile device connectivity, and wireless LAN hook-up thanks to the included wireless module. Epson's free iProjection App for iOS or Android is also required for wireless smartphone/tablet connection.

The projector features a short throw ratio of just 0.27 to 0.37:1 (digital zoom only). This means you'll be able to project a full 100" diagonal image with the projector just about a foot away from the screen. Short throw projectors also provide relief from the blinding light and annoying shadows that are common with regular projectors. For connectivity, the BrightLink Pro 1430Wi features dual HDMI inputs, one of which supports MHL mobile device connectivity. There are VGA, composite, and S-Video inputs as well. Besides the 16W mono speaker, the projector has three audio inputs, a microphone input, and an audio output jack for sending the audio signal through an external speaker system.

The BrightLink Pro 1430Wi is highlighted by a myriad of interactive projection features. It comes with two interactive pens, which allow two users to annotate simultaneously anywhere on the surface of the projected image. The interactive pens allow you to turn almost any smooth, lightly colored surface into an interactive drawing and note taking solution. You can also use this model for PC-less presentations. A USB port facilitates projection of your photos, videos, and data files from a USB storage device. USB connectivity lets you project directly from compatible document cameras as well. Other notable projector features include convenient collaboration for BYOD classrooms, and compatibility with top interactive software.

Key Features

Brightness of 3300 Lumens
WXGA (1280 x 800) Native Resolution
Ultra-Short 0.27 to 0.37:1 Throw Ratio
Dual HDMI Inputs with MHL Compatibility
Dual Interactive Pens for Annotation
Touch Capable
Three-Chip 3LCD Projection Technology
Works with Free Epson iProjection App
Supports EasyMP Wireless Interactivity
Wi-Fi Wireless Adapter Included

Main Features

3LCD Technology

A beamsplitting prism sends red, blue, and green light through three monochrome LCDs to render a video image. The three-chip 3LCD design features no moving parts in the imaging system, although there is still a cooling fan, and it is also free of the "rainbow effect" artifact sometimes perceived on color wheel-based projection systems.

3300-Lumen Lamp

A single lamp is estimated to last up to 6000 hours in Eco mode. It provides 3300 lumens of color, white, and interactive brightness. Plus, since this model supports equal color and white brightness, you can be sure both colors and gray scales are rendered in equal brightness.

WXGA 1280 x 800 Native Resolution

This projector features a WXGA 1280 x 800 native resolution and a 16:10 native aspect ratio. This is considered a widescreen format, and comes very close to the 16:9 standard of HDTV. This format is ideal if you plan to show HD video, but can still be used for presentations. The projector supports 16:9 and 4:3 aspect ratios as well.

USB Connectivity

This projector features two USB ports. The Type-A USB port supports PC-less presenting from a USB storage device, compatible digital camera, or mobile device with USB connectivity. It also lets you pass through data from connected USB devices—like a document camera to the computer. The Type-B USB port lets you connect the projector to a Windows or OS X computer to display audio and video (requires driver software installation; high-frame rate video may not be supported).

Moderator Function & BYOD Classroom Collaboration

Multi-PC projection and the Moderator function allow up to 50 Windows/Mac/iOS/Android devices to connect over a network. You can display up to four different device screens (from any of the 50 devices) simultaneously and control which device screens to display. This feature makes it easy for teachers to encourage and control classroom collaboration. It's also a great way to compare students work side by side.

Easy Interactive Tools 3.0

The included Easy Interactive Tools 3.0 annotation software from Epson allows users to control projector settings over the network, record and save video from Epson document cameras, and save/reopen/edit annotation files. It allows access to archived curriculum as well. You can also program the interactive pen button to provide instant access to the most-used tools.

SMART Notebook Software for BrightLink

This collaborative learning software (full version) helps teachers create high-impact lessons—anytime, anywhere. It offers a multitude of digital resources as well as customizable content. Each BrightLink projector that comes with this optional software includes a four-seat user license, which is available for Windows and Mac.

Wireless Interactivity

When using the included Epson EasyMP software with a networked BrightLink projector, teachers are no longer tied down by restrictive and confining cables. Educators can wirelessly display and interact with content as they move about the classroom with their laptop, experiencing true interactive freedom.

Promethean ActivInspire

ActivInspire software enables teachers to engage their students in interactive activities that are sure to grab their attention. Each BrightLink projector with this optional software includes a full version and a five-seat user license, which is available for Windows and Mac operating systems.

Advanced Network Connectivity & Management Capabilities

Present A/V content over the LAN or annotate network content using BrightLink's instant annotation tools. With Epson's EasyMP Monitor software, IT administrators can configure and monitor the status of their Epson networked projectors, including the remote viewing of power status, lamp hours, and temperature/filter conditions.

Epson iProjection App

Display, annotate, and control content from your iOS or Android mobile device with the free Epson iProjection App. Teachers can walk around the class and still share engaging content. The app is easy to use and navigate with intuitive menu options that make it simple to bring iOS and Android content to the big screen.

Dual HDMI Inputs & Support for MHL Connectivity

You can use the dual HDMI inputs to get instant access to movies, games, and more. HDMI supports digital connectivity with a variety of high definition A/V devices including certain laptops, media players, Blu-ray players, gaming consoles, set-top boxes, etc. One of the HDMI inputs also supports MHL connectivity, which lets you display content from MHL-enabled smartphones, tablets, and Roku devices. You can also use the projector remote to control your connected MHL-enabled mobile devices and you can charge your MHL-enabled mobile devices when they're plugged into the projector's MHL input.

Auto Calibration

Auto calibration helps you get the projector up and running as fast as possible by calibrating the display and image settings, based on your projection environment and setup.

Quick Corner Adjustment

Quick Corner is an innovative feature that allows you to move any of the four corners of an image independently. This will let you adjust each corner just the right amount to ensure a perfectly rectangular picture.

Instant Off

Quick, convenient control with Instant Off means no cool-down time is required—you just shut down the projector whenever you're finished with your presentation or viewing experience.

Copy Menu Settings

Copy menu settings for multiple projector installations and save on installation time. You can copy settings via a USB flash drive, USB cable, or LAN.

Optimized for Wall Mounting

Thanks to its short throw design, it is possible to render a 100" diagonal image with the projector mounted just 12.2" away from the screen. By mounting at such a close distance, the risk of shadow interference is greatly reduced.

Additional Eco-Friendly Features

Eco mode operates the projector at a lower brightness setting

Light Optimizer mode adjusts the lamp brightness, based on the projected image

The Auto mode sensor automatically adjusts the lamp brightness, based on the room environment

Lamp dimming happens after a certain period of inactivity, thereby extending the lamp life

Sleep mode (A/V Mute) lets you control your presentation right at your fingertips

Direct Power on/off allows you to power the projector on and off with the flip of a wall switch

Epson V11H665520 Specs

Image Display

Display System	-Chip LCD
Native Chip Resolution	1280 x 800 (WXGA)
Supported Resolutions	VGA - 640 x 580 SVGA - 800 x 600 SXGA - 1152 x 864 XGA - 1024 x 768 SXGA2 - 1280 x 960 SXGA3 - 1280 x 1024 WXGA 60-1 - 1280 x 768 WXGA+ - 1360 x 768 WXGA+ - 1440 x 900 WSXGA+ - 1440 x 900 WXGA++ - 1600 x 900
Maximum Brightness	3300 Lumens 3300 Lumens
Aspect Ratio	Native: 16:10 Supported: 16:9 Supported: 4:3

Lens

Lens	f/1.8 (f = 3.71 mm)
Throw Ratio	0.27 to 0.37:1
Projection Size	60 - 100" / 152.40 - 254.00 cm

Features

Keystone Correction	Manual-Vertical: ± 3° Manual-Horizontal: ± 3°
Ceiling Mountable	Yes
Rear Screen Projection	Yes
Closed Captioning	Yes

General

Lamp Power	245 W
Expected Lamp Life	Medium Brightness: 4000 Hours Low Brightness: 6000 Hours
Fan Noise	Medium Brightness: 35 dB Low Brightness: 28 dB
Security	Cable Lock Slot Password Protection Security Bar
Power Consumption	Medium Brightness: 376 W Standby Mode (Lamp Off): 4.3 W Standby Mode (Lamp Off): 0.33 W
Dimensions (W x H x D)	14.5 x 7.5 x 14.8" / 368.3 x 190.5 x 375.9 mm without feet
Weight lb	12.30 lb

Packaging Info

Package Weight	23.5 lb
Box Dimensions (LxWxH)	21.5 x 18.4 x 10.6"
