Display System 1-Chip 0.67″ DLP
Native Chip Resolution 1920 x 1200 (WUXGA)
Maximum Brightness 8500 Lumens 6800 Lumens 4250 Lumens 3400 Lumens
Uniformity 90%
Aspect Ratio 16:10
Contrast Ratio 10,000:1
Keystone Correction Vertical: 40 Horizontal: 15
Multi-Input Support (PIP/PBP) Picture-in-Picture (PIP)
Ceiling Mountable Yes
Rear Screen Projection Yes
Built-In Speaker None

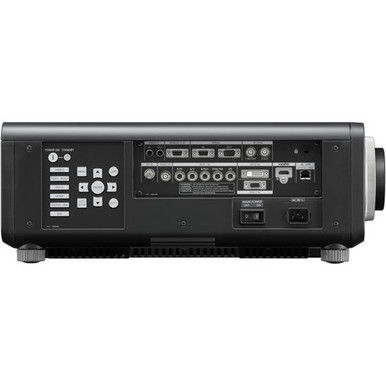

Inputs/Outputs 1 x M3 Remote Input 1 x M3 Control Output 1 x Ethernet (RJ45) LAN 1 x 5BNC Video Input 1 x SDI (BNC) Video Input 1 x RS-232 (DE-9/DB-9) Control Output 1 x DE-9/DB-9 Control 1 x RS-232 (DE-9/DB-9) Control Input 1 x Composite (BNC) Video Output 1 x Composite (BNC) Video Input/Output 1 x Composite (BNC) Video Input 1 x DVI-D Video Input 1 x VGA (DE-15/DB-15) Video Input 1 x HDMI (HDMI Type-A) Audio, Video Input
Wireless LAN / Wi-Fi None
Light Source Lamp (2 x UHM)
Lamp Power 420 W
Expected Lamp Life Low Brightness: 4000 Hours Medium Brightness: 3000 Hours
Fan Noise Medium Brightness: 40 dB Low Brightness: 35 dB
Security Cable Lock Slot
Supported Languages English French German Italian Japanese Korean Russian Spanish Traditional Chinese
AC Input Power 120 to 240 VAC, 50 / 60 Hz
Heat Dissipation 3516 BTU 3400 BTU
Power Consumption Medium Brightness: 1030 W Standby Mode (Lamp Off): 3 W Standby Mode (Lamp Off): 0.3 W
Dimensions (W x H x D) 19.6 x 7.9 x 21.9″ / 497.8 x 200.7 x 556.3 mm Without Lens
Package Weight 51.6 lb
Box Dimensions (LxWxH) 28 x 26 x 15″
10,000 1 Contrast Ratio
Panasonic DZ870ULW Overview The white Panasonic PT-DZ870ULW WUXGA 1-Chip DLP Projector is ideally suited for fixed installations and public display venues including independent cinema, live events, educational institutions, entertainment and advertising, or as the hub of cutting-edge home theater applications.
8500 ANSI lumens is enough power to overwhelm most ambient light challenges, while the 10,000:1 contrast achieved by the Dynamic Iris delivers WUXGA (1920 x 1200) imagery that leaps off the screen. And don’t worry if your source material was compressed. Detail Clarity Processor 3 restores any subtle details that may have been lost during the compression process.
Panasonic DZ870ULW Overview The projector ensures minimal image degradation and a quick response that eliminates afterimages. While compact, the sturdily-built, 53 pound unit has what takes to last. It’s for mission-critical environments such as 24-hour a day command and control centers thanks to the dual 420W lamp system, which employs a Lamp Relay mode to cycle each lamp on and off during 24/7 scenarios.
Panasonic DZ870ULW Overview Other features include a built-in clock to schedule projector functions, PIP, and DICOM simulation mode. Digital Imaging and Communications in Medicine, or DICOM, allows educators to display subtle nuances and grayscale subtleties in X-rays, radiography or MRIs.
Panasonic DZ870ULW Overview Brightness of 8500 Lumens WUXGA 1920 x 1200 Resolution
10,000:1 Contrast Ratio Dual Lamp Design DICOM Simulation Mode, Ratio
Panasonic DZ870ULW Overview Direct Power Off 1 x HDMI
A Wide Selection of Lenses Available
Full-HD Ready WUXGA Resolution The projector features native WUXGA resolution for Full-HD viewing. This brings you lifelike projection of intricate, highly detailed images
Active 3D Projection Capability The projector is compatible with both passive and active 3D projection systems. It combines with either a separate, external 100/120/144 Hz drive with IR emitter and active shutter glasses, or an active filter and passive glasses, for viewing 3D images Dual Lamp System
Panasonic’s Dual Lamp System eliminates interruptions due to lamp failure (in Dual Lamp operation mode). The Lamp Relay Mode also operates the lamps alternately to enable 24/7 projection. Operation is possible in temperatures up to 113 F/45 C. A dust-resistant optical block is also employed
Active 3D Projection Capability The Dynamic Iris achieves a high contrast ratio of 10,000:1 Detail Clarity Processor 3
Active 3D Projection Capability Exclusive to Panasonic, this image-processing circuit analyzes the video signal frequency range for each scene by extracting data on the distribution of high, mid, and low-frequency components, and brings out fine details accordingly. The resulting images have a more natural, three dimensional appearance with crisp, clear detail
Vivid Color Control This technology optimizes the use of the color wheel segments. It increases the brightness of each RGB color by minimizing the unallocated portions between the colors
Dynamic RGB Booster Panasonic’s RGB Booster achieves high image quality with levels of color reproduction and brightness that make each color stand out. It combines Panasonic’s proprietary Vivid Color Control technology with a Lamp Modulation Drive System for a 1-chip DLP projector that produces bright colors
Dynamic RGB Booster Optimal color reproduction can be achieved by selecting this mode, compliant with ITU-R Recommendation BT.709, when images from an HDTV source are projected Waveform Monitor Function
When the output level of the source device fluctuates due to the performance of the device or its cable connections, the original black and white levels of the image content cannot be reproduced correctly. With the projector you can view the waveforms on the screen and adjust the settings either automatically or manually as you prefer
System Daylight View 2 System Daylight View 2 enhances perceived brightness and contrast. It includes a built-in ambient light sensor that automatically detects room brightness and adjusts operation accordingly
System Daylight View 2 Choose from a wide lineup of lenses for your system, including short-throw, long-throw zoom and fixed-throw lenses for rear projection use (not included) DICOM Simulation Mode
System Daylight View 2 Digital Imaging and Communications in Medicine (DICOM) simulation mode allows medical educators to display high-resolution images with detail and clarity. This helps train technologists and others to recognize and understand the subtle grayscale differences visible on digital radiography, computed tomography and magnetic resonance Flexible Design
A lens-centered design, a wide range of optional lenses, powered H/V-lens shift, and flexible vertical 360-degree installation enable flexibility for use in various locations Advanced Technologies
System Daylight View 2 3D color management system Full 10-bit image processing
System Daylight View 2 Progressive cinema scan (3:2 pull-down)
System Daylight View 2 Dynamic sharpness control
System Daylight View 2 Digital noise reduction IP conversion AI scene control 2:2 pull-down mode sRGB compatibility
System Daylight View 2 Multi Projector Monitoring and Control Software
System Daylight View 2 Panasonic’s freeware Multi Projector Monitoring and Control Software allows the user to control and monitor multiple projectors at the same time over a wired LAN. When a problem occurs, an alarm message is sent to the monitoring/controlling PC
The cooling fan continues to operate even when the main power switch is turned off after projection is finished. This also allows the power to be turned off by directly switching off the room’s main breaker for systems, such as ceiling mounted systems, where the main power switch cannot be reached
Multi-Screen Support System Seamlessly Connects Multiple Screens
Direct Power Off Edge Blending The edges of adjacent screens can be blended and their luminance controlled
Direct Power Off Color Matching This function corrects for slight variations in the color reproduction range of individual projectors. The PC software assures easy, accurate control
Multi-Screen Processor The projector can project large, multi-screen images without any additional equipment. Up to 100 (10 x 10) units can be edge-blended at a time Scheduling Function
A scheduling function enables timed operation via a built-in clock to program the projectors to turn on or off at specific hours during the day PJLink Compatibility
Direct Power Off The LAN terminals support PJLink class 1 connection. Control with the same specifications is also possible when used in a multi-projector system with projectors of another brand PiP
Direct Power Off Picture in Picture lets you flexibly control the layout of two windows for a wide variety of presentations Eco-friendly
Environment-friendly, low standby power consumption of 0.3W when set to Eco Web Browser Control
Direct Power Off The projector can be easily operated remotely over a LAN network, because it is all done using the computer’s familiar Web browser. Furthermore, the projector sends an e-mail message to notify the operator when an error has occurred, or a lamp needs to be replaced DIGITAL LINK, is compatible with the Art-Net protocol for lighting management. Art-Net compatibility lets you connect the projector to the lighting console, and operate functions such as shutter on/off, input change, and power on/off, together with the light control
Direct Power Off Equipped with a DIGITAL LINK terminal, the projector allows transmission of HDMI, uncompressed HD digital video, audio, and control signals (Ethernet, RS-232C) for up to 328′ through a single CAT5e (STP) cable or higher. This simplifies cabling and system upgrades, making it ideal for ceiling-mounted and other permanent installations Art-Net Compatible
Optional ET-YFB100G Digital Interface Box Used together with the ET-YFB100G Digital Interface Box, or other compatible equipment, the installation of this projector is easier than ever, without any need for external receivers. The input signal can also be easily switched from control panel or remote control of the projector to enable attractive presentations or lessons using multimedia content Filter-Less Optical Engine
An optical cooling system featuring a heat pipe block suppresses temperature rises inside the projector and allows stable operation up to an ambient temperature of 113 F (45 C). The use of this heat-pipe cooling system also achieves quiet operation, enabling viewers to concentrate on the presentation or on quiet movie scenes Dust Resistant Optical Block
Optional ET-YFB100G Digital Interface Box The optical block is sealed to resist the effects of dust and other particles in the air, which makes it possible to remove the air filters for optics. It also contributes to the low TCO
This function automatically corrects the brightness fluctuations that occur over time in the individual projectors of a multi-screen system. Up to eight projectors can be controlled by connecting to each other via a hub, and this can be increased to a maximum of 2048 projectors by using the Multi Projector Monitoring and Control Software Flexible Installation
Multiple Terminals with HD-SDI Compatibility The projector has an array of terminals, including 3D sync, DVI-D and HDMI terminals. The projector also features an SDI (SD-, HD-, and 3G-SDI) input terminals
Multiple Terminals with HD-SDI Compatibility Portrait projection is possible by mounting the optional ET-LAD120P or ET-LAD120PW lamp units, updating the projector’s firmware, and installing the projector with its terminal side surface facing downward Ecology-Conscious Design No halogenated flame retardants are used in the cabinet
Multiple Terminals with HD-SDI Compatibility Auto power save activates standby mode when no signal is input Remote Control
Multiple Terminals with HD-SDI Compatibility Power Supply 3 V DC (2 x AA type battery)
Multiple Terminals with HD-SDI Compatibility Operation Range 98′ (30 m) when operated from directly in front of the signal receptor
Multiple Terminals with HD-SDI Compatibility Dimensions 1.9 x 5.7 x 1.1″ (48 x 145 x 27 mm)
Multiple Terminals with HD-SDI Compatibility Weight 3.6 oz (102 g) Additional Features
Multiple Terminals with HD-SDI Compatibility Anti-theft features with chain opening
Multiple Terminals with HD-SDI Compatibility Control device setup function
Multiple Terminals with HD-SDI Compatibility ID assignment for up to 64 units Built-in test pattern
Optical Axis Shift Vertical: +50% (powered), horizontal: 10% (powered) RoHS Directive compliant Panasonic DZ870ULW Specs Display System 1-Chip 0.67″ DLP
Multiple Terminals with HD-SDI Compatibility Native Chip Resolution 1920 x 1200 (WUXGA) Maximum Brightness 8500 Lumens 6800 Lumens 4250 Lumens 3400 Lumens Uniformity 90%
Multiple Terminals with HD-SDI Compatibility Aspect Ratio 16:10
Multiple Terminals with HD-SDI Compatibility Contrast Ratio 10,000:1 Features Keystone Correction
Multiple Terminals with HD-SDI Compatibility Vertical 40
Multiple Terminals with HD-SDI Compatibility Horizontal 15
Multiple Terminals with HD-SDI Compatibility Multi-Input Support (PIP/PBP) Picture-in-Picture (PIP) Ceiling Mountable Yes Rear Screen Projection Yes Built-In Speaker None Inputs/Outputs 1 x M3 Remote Input 1 x M3 Control Output
1 x Ethernet (RJ45) LAN
Multiple Terminals with HD-SDI Compatibility 1 x 5BNC Video Input, x Composite (BNC) Video Output, x Composite (BNC) Video Input/Output, x Composite (BNC) Video Input, x DVI-D Video Input, x VGA (DE-15/DB-15) Video Input
1 x SDI (BNC) Video Input 1 x RS-232 (DE-9/DB-9) Control Output 1 x DE-9/DB-9 Control 1 x RS-232 (DE-9/DB-9) Control Input
1 x HDMI (HDMI Type-A) Audio, Video Input
Multiple Terminals with HD-SDI Compatibility Wireless LAN / Wi-Fi None General Light Source Lamp (2 x UHM) Lamp Power 420 W Expected Lamp Life
Multiple Terminals with HD-SDI Compatibility Low Brightness 4000 Hours
Multiple Terminals with HD-SDI Compatibility Medium Brightness 3000 Hours
Fan Noise Medium Brightness 40 dB
Fan Noise Low Brightness 35 dB Security Cable Lock Slot Supported Languages English French German Italian Japanese Korean Russian Spanish Traditional Chinese
Fan Noise AC Input Power 120 to 240 VAC, 50 / 60 Hz Heat Dissipation 3516 BTU 3400 BTU
Power Consumption Medium Brightness 1030 W
Standby Mode (Lamp Off) 3 W, 0.3 W
Power Consumption Dimensions (W x H x D) 19.6 x 7.9 x 21.9″ / 497.8 x 200.7 x 556.3 mm Without Lens Packaging Info Package Weight 51.6 lb
Power Consumption Box Dimensions (LxWxH) 28 x 26 x 15″
SKU PT-DZ870ULW
Brand Panasonic
MPN PT-DZ870ULW
GTIN 00885170123328, 885170123328
UPC 885170123328
