Panasonic EMW5 Overview

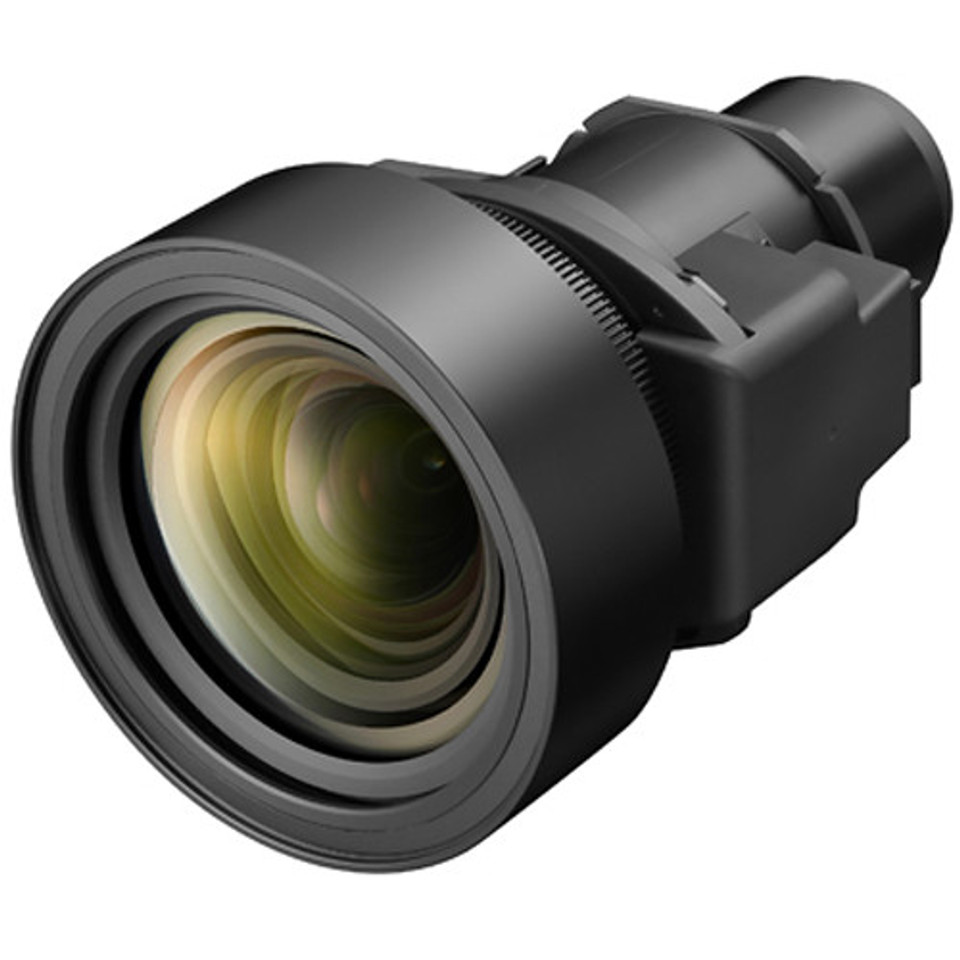

Designed for use with PT-MZ16K, PT-MZ13K, and PT-MZ10K LCD laser projectors, the ET-EMW500 21.08-30mm Zoom Lens from Panasonic enables you to vary the projection distance by adjusting the focal length. The lens offers a focal range of 21.08-30mm and an aperture range of f/1.8-2.35, providing a throw ratio of 0.95-1.36:1 in 16:10 or 16:9 mode and 1.14-1.63:1 in 4:3 mode.
Key Features
- For PT-MZ16K/MZ13K/MZ10K Projectors
- Focal Length: 21.08-30mm
- Aperture: f/1.8-2.35
- Throw Ratio: 0.95-1.36:1 (16:10 or 16:9)
- Throw Ratio: 1.14-1.63:1 (4:3)
Panasonic EMW5 Specs
General
| Compatibility | Panasonic PT-MZ16KL Panasonic PT-MZ13KL Panasonic PT-MZ10KL |
| Lens Type | Zoom |
Performance
| Throw Ratio | 0.95 to 1.36:1 (16:10) 0.95 to 1.36:1 (16:9) 1.14 to 1.63:1 (4:3) |
| Aperture | f/1.8 to 2.35 |
| Focal Length | f = 21.08 to 30mm |
| Aspect Ratio | 16:10 16:9 4:3 |
Physical
| Exterior Dimensions | H: 6.9 x W: 7.0 x L: 11.2" / H: 175.0 x W: 179.0 x L: 285.0 mm |
| Weight | 11.35 lb / 5.15 kg |
1 Year Parts & Labor Manufacture Warranty
