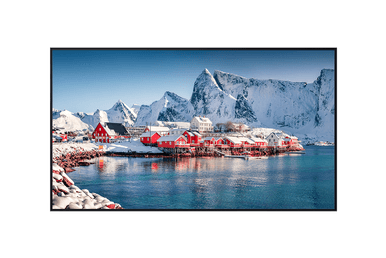

The Panasonic Connect TH-86SQE2W 4K Professional Display is designed for 24-hour continuous operation and crystal-clear viewing clarity. The display provides a brightness of 500cd/m² with an anti-glare panel, and minimum haze treatment of 25%, reducing the reflection of ambient light and vastly improving visibility in all environments. For ultimate flexibility and a clean look without set-top-boxes or cables, the TH-86SQE2W is also equipped with a slot for the Intel® SDM specification supporting applications, such as digital signage and broadcasts, using a built-in PC, terminal board, or wireless presentation system.

KEY FEATURES

• High image quality and high legibility suitable for various scenes
• Superb Reliability & Easy Installation
• Various external linkage suitable for conference room and signage applications

specification

DISPLAY PANEL
Screen Size (Diagonal) 86-inch class (2174.2 mm / 85.60 inch)
Panel type / Backlight IPS / Edge-LED
Aspect ratio 16:9
Effective Display Area (W x H) 1895.0 x 1065.9 mm (74.60″ x 41.96″)
Resolution (H ｘ V) 3840 x 2160
Brightness (Typ) 500 cd/m2
Contrast Ratio (Typ) 1100:1
Dynamic Contrast Ratio 50000:1
Max. Display Colors Approx. 1.07 Billion
Response Time (Typ) 8.0 ms (G to G)
Viewing Angle (Horizontal / Vertical) 178 ° / 178 ° (CR>10)
Panel Life Time1
(Typ) Approx. 50000 hours
Panel Surface Treatment Anti-glare type (Haze 28%)

CONNECTION TERMINAL
HDMITM IN HDMITM Type A Connector x 4 (HDCP2.2)
DisplayPort IN DisplayPort x 1 (HDCP2.2)
DIGITAL OUT HDMITM Type A Connector x 1 (HDCP2.2)
SERIAL IN Stereo mini jack (Φ3.5 mm) x 1, RS-232C Compatible
IR IN Stereo mini jack (Φ3.5 mm) x 1
AUDIO OUT Stereo mini jack (Φ3.5 mm) x 1
SPDIF x 1
LAN RJ45 x 1 compatible with PJLinkTM　10BASE-T/100BASE-TX/1000BASE-T
USB connector TYPE A x 1 : DC5 V / MAX 0.9 A, (USB 3.0 is supported)
USB connector TYPE A x 1 : DC5 V / MAX 0.5 A, (USB 2.0 is supported)
USB connector TYPE A x 1 : DC5 V / MAX 0.5 A, (USB 2.0 is supported) (Internal)
USB connector TYPE C x 1 : DC5 V / MAX 3.0 A, (USB 3.0 is supported, DP Alt Mode)
microSD microSD / SDHC / SDXC / MAX 1TB
Wifi / Bluetooth® Dongle　IEEE 802.11 a/b/g/n/ac Dual band　Bluetooth® 5.1 with BLE, HID / A2DP
SLOT Intel® SDM specification
Corresponding size SDM-S / SDM-L, Supply power 66W

AUDIO
Built in Speaker 24 W [(6 W x 2) + (6 W x 2)]

ELECTRICAL
Power Requirements AC110-240 V　50 Hz / 60 Hz
Power Consumption 390 W
On Mode Average Power Consumption1 282 W
Power Off Condition 0 W
Stand-by Condition 0.5 W
Apparent power 408 VA

MECHANICAL
Dimension (W x H x D) Not including remote controller sensor 1929 x 1100 x 81 mm (75.91″ x 43.28″ x 3.16″)
Dimension (W x H x D) Including remote controller sensor 1929 x 1116 x 81 mm (75.91″ x 43.94″ x 3.16″)
Weight 62.9 kg /138.7 lbs
Carton Dimensions (W x H x D) 2163 x 1405 x 380 mm (85.16″ x 55.32″ x 14.96″)
Gross Weight 85 kg / 187.4 lbs
Cabinet Material Metal
Bezel Color Black
Bezel Width T/R/L/B 15.3 mm (0.6″)
Pitch for Wall-Hanging VESA Compliant 600 x 400 mm (23.7″ x 15.8″) (Installed by: M8 screws / Screw hole depth: 12 mm (0.48″))

INSTALLATION
Orientation Landscape / Portrait (clockwise rotation)
Tilting Angle Landscape / Portrait installation 20 degrees forward/backward

ENVIRONMENTAL
Operating Environment Temperature : 0 °C to 40 °C (32 °F to 104 °F)1 : 0 °C to 35 °C (32 °F to 95 °F)2
Humidity : 20% to 80% (No condensation)
