Description
- Bright 5,500 lumens projection for large installations
- Four corner geometric correction for easy installation of basic stacking solutions or on uneven walls
- Project a super-bright 100” image from 5’ 7” away
- Vertical/horizontal keystone and lens shift for flexible installation
- Full control over LAN and RS-232 using Crestron, IP Link, Extron PJ-Link and Telnet
- Built-in HDBaseT ideal for long cable runs in the install environment
Bright projection with installation and network control flexibility

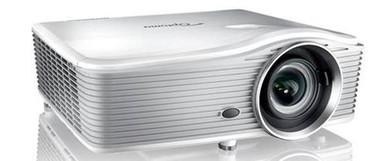

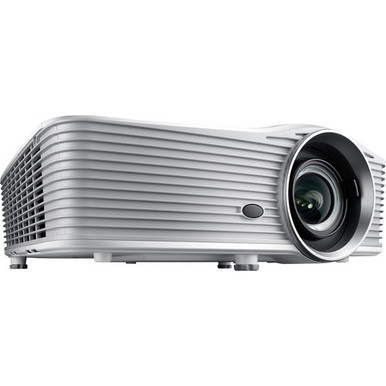

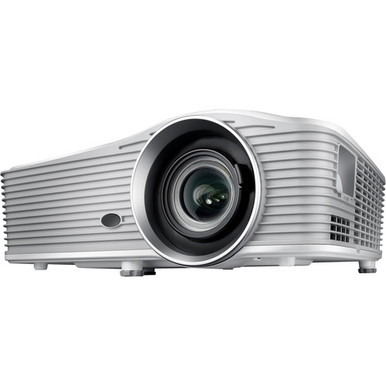

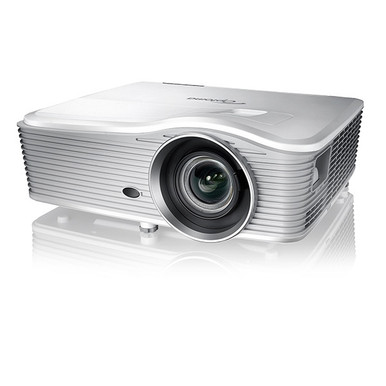

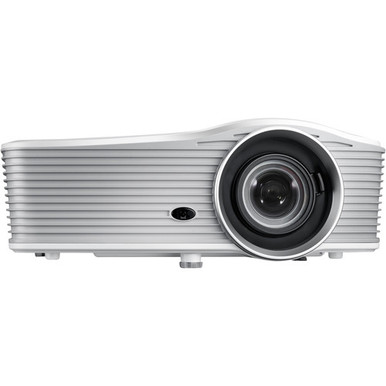

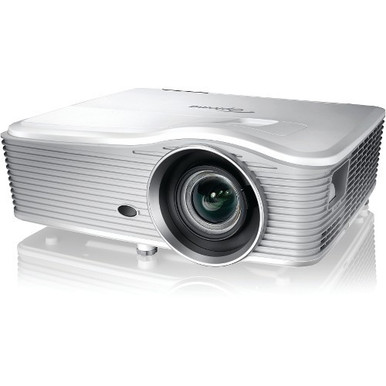

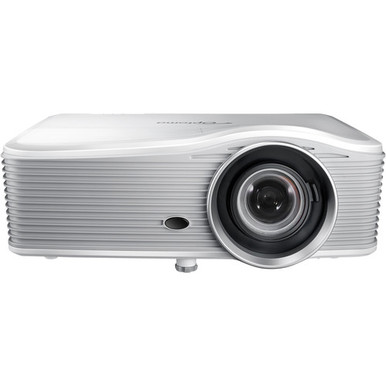

The 5,500 lumens WUXGA Optoma ProSceneWU515TST short throw projector is engineered for the demanding needs of professional installations and corporate environments. DLP technology ensures accurate colors, excellent contrast and vivid images for an
outstanding visual experience.
Advanced installation adjustments, including four corner corrections, keystone, horizontal and vertical lens shift enable quick setup and easy usability from any angle and on uneven. The 0.79:1 throw ratio enables large image projections in space-constrained
environments.
Robust inputs include HDMI with MHL, DisplayPort and HDBaseT for connectivity to a wide range of devices with long cable distances without loss of image fidelity. Eco+ lamp power management mode enhances energy efficiency.
| Contrast Ratio | 10,000:1 | |||||||
|---|---|---|---|---|---|---|---|---|
| Wireless Networking | No | |||||||
| Speakers | 1 x 1W Mono Speaker | |||||||
| Economode | 5000 Hours | |||||||
| Audible Noise | 32 dB | |||||||
| Lamp Life | 3 000 hrs | |||||||
| Short Throw | Yes | |||||||
| Native Resolution | 1920 x 1200 | |||||||
| Display Technology | DLP | |||||||
| Aspect Ratio | 16:10 (WUXGA) | |||||||
| Image Size Diagonal | 29.38” – 305.6” | |||||||
| Inputs | Composite (RCA), S-Video, VGA In (Dsub-15pin), VGA In (Dsub-15pin), Network (RJ-45), USB, RS232 (DB-9pin), 12-Volt Trigger, HDMI 1.4a, DisplayPort, HDBaseT (RJ-45), HDMI (MHL), Audio In (Mini Jack), Audio In (Mini Jack),Audio In (RCA) | |||||||
| Lens Shift | Horizontal & Vertical | |||||||
| Outputs | Audio Out (Mini Jack),VGA Out (Dsub-15pin) | |||||||
| Data / Video Signals | 720p, 1080i, 1080p/60, 1080p/24, 576i, 576p, 480p, 480i | |||||||
| Digital Keystone | Horizontal & Vertical | |||||||
| Throw Distance | 0.79:1 | |||||||
| Unit Weight | 14 lbs | |||||||
| Lens | F=11.66mm, manual focus | |||||||
| Projector Methods | Front, Rear, Ceiling Mount, Table Top | |||||||
| Lumens (ANSI) | 5500 ANSI Lumens | |||||||
| Dimensions (WxDxH) | 16.7” x 13.5” x 6.3” | |||||||
