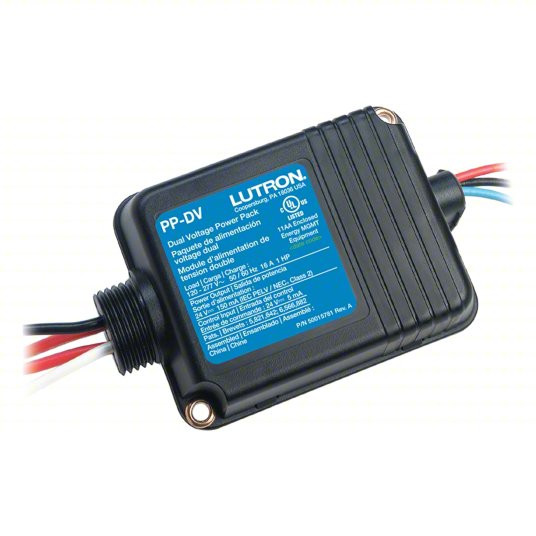

LUTRON Power Pack: LOS C/LOS W, Fluorescent/Halogen, Incandescent/LED, Hard Wired, 120 to 277V AC

Technical Spec

Power switch packs provide both the 24 V power supply to operate Lutron sensors as well as the 20 A line voltage relay to control the load in one compact housing. The unit can be placed outside or inside the junction box with a simple twist-on nut. The auxiliary relay model can be used with line voltage power packs to switch additional loads.

Features

• High-impact UL94 5 VA flammability-rated plastic case construction.
• Relay: Class B (130°C) insulating material; silver alloy contacts.
• 120 V, 277 V, or 347 V transformer: 60 Hz;
• 230 V transformer: 50 Hz.
• 24 V nominal output; 100 mA nominal, full wave rectified and filtered.
• 7” wire leads, 18 AWG input; 7” leads, 16 AWG contacts.
• Relay contact rating:
  –20 A: 120/230/277 V ballast
  –15 A: 347 V ballast
  –15 A: 120 V incandescent
• Complies with requirements for use in a compartment handling conditioned air (plenum).
• Supports up to 3 devices, including occupant sensors and PP-SH units.
• Operating environment: 32°F to 104°F (0°C to 40°C); less than 90% relative humidity, non-condensing.
• For indoor use only.
