Inputs/Outputs 1x RJ45 Gigabit Ethernet 4x RJ45 Gigabit Ethernet PoE+ (30 W, 802.3at)
Stackable No
Switching Bandwidth 10 Gb/s
PoE Power Budget 83 W
Supported Protocols Auto-MDIX/MDI
Queuing Weighted Round Robin (WRR)
Jumbo Frames Support 9216 Bytes
MAC Address Table Size 2K
Latency 2.4 µs
Forwarding Rate 1.44 Mpps
Packet Buffer 128 kB
PoE per Port 30 W
Power Draw 88.89 W (Max) 2.89 W (Standby)
Input Power 54 VDC at 1.66 A
Power Supply Type External
Operating Temperature 32 to 104°F / 0 to 40°C
Operating Humidity 90%
Storage Temperature -4 to 158°F / -20 to 70°C
Storage Humidity 95%
Noise Level 0.0 dB
Certifications CE, FCC, RCM, CCC, VCCI, KC
Cooling System Passive
Mean Time Between Failures (MTBF) 6.19 Million Hours
Material of Construction Metal
Indicator Lights Yes
Rack Mountable No
Dimensions 6.2 x 4 x 1.1″ / 158 x 101 x 29 mm
Weight 0.9 lb / 0.41 kg
Package Weight 2.455 lb
Box Dimensions (LxWxH) 10.2 x 6.7 x 3.3″

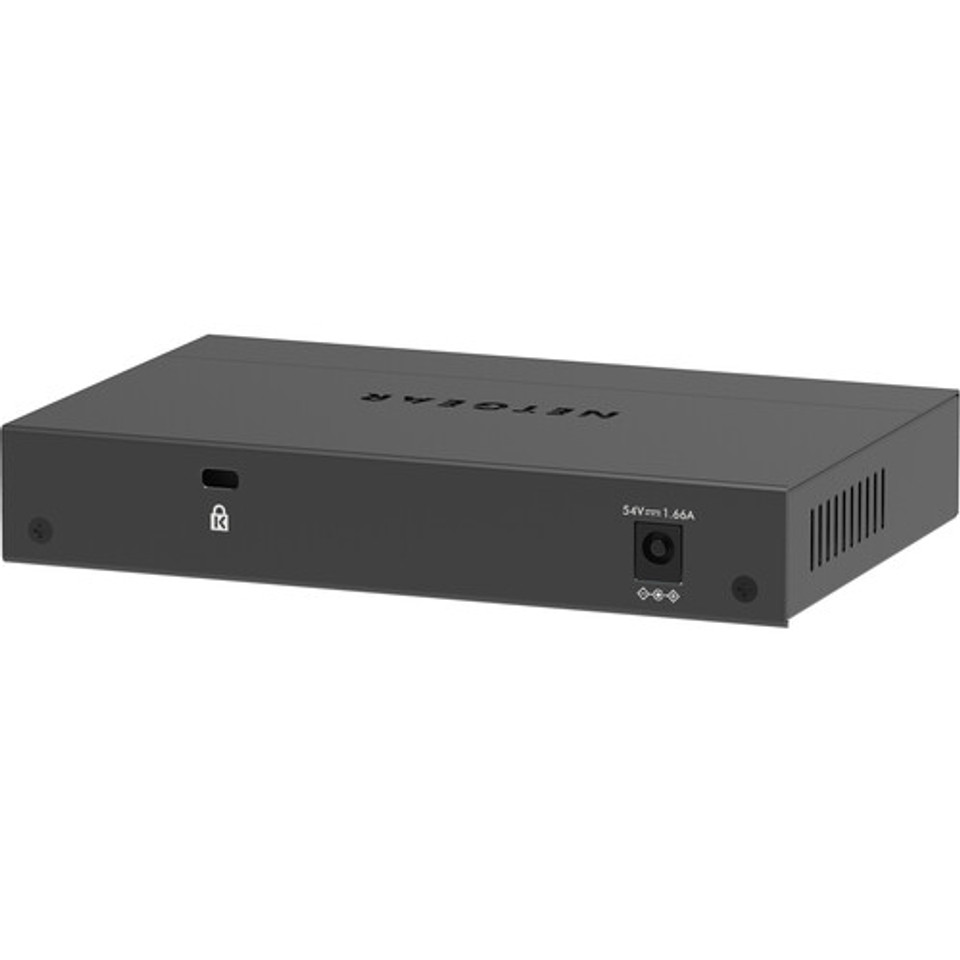

Netgear GS305PP-300NAS Overview Quickly and easily grow your network to support IP security cameras, access points, VoIP phones, and other PoE-compatible devices with the GS305PP 5-Port Gigabit PoE+ Compliant Unmanaged Network Switch from NETGEAR . Four out of the five Gigabit-speed Ethernet ports support up to 30W of PoE+ each with a total budget of 83W.
Netgear GS305PP-300NAS Overview Simply connect this switch to your network to get started. No complex setup or configuration is required. With a 10 Gb/s switching capacity, 1.448 Mpps forwarding rate, a 128KB memory buffer, and 9216 byte jumbo frames, the GS305PP delivers fast and reliable data transfers. The fanless design allows the switch to operate silently in the background of your office.
Netgear GS305PP-300NAS Overview PoE Power Auto-Balance & Allocation, Budget 83 W Stackable No Protocols Supported Protocols Auto-MDIX/MDI Queuing
Netgear GS305PP-300NAS Overview The GS305PP automatically balances the PoE power level on each port, depending on the device needs. Energy Efficient
Netgear GS305PP-300NAS Overview This switch is designed to optimize power usage and for low operating costs. Versatile Mount
Netgear GS305PP-300NAS Overview This device supports desktop placement or wall mounting using the included kit. Silent Operation
Netgear GS305PP-300NAS Overview The fanless design means zero added noise wherever its located, making it ideal for noise-sensitive environments. Netgear GS305PP-300NASSpecs Inputs/Outputs 1x RJ45 Gigabit Ethernet
4x RJ45 Gigabit Ethernet PoE+ (30 W, 802.3at) Stackable No Switching Bandwidth 10 Gb/s
Netgear GS305PP-300NAS Overview Weighted Round Robin (WRR) Jumbo Frames Support 9216 Bytes MAC Address Table Size 2K Performance Latency 2.4 µs Forwarding Rate 1.44 Mpps Switching Bandwidth 10 Gb/s Packet Buffer 128 kB Electrical PoE per Port 30 W
PoE Power Budget 83 W Power Draw 88.89 W (Max) 2.89 W (Standby)
PoE Power Budget 83 W Input Power 54 VDC at 1.66 A
Power Supply Type External Environmental Operating Temperature 32 to 104°F / 0 to 40°C
Power Supply Type External Environmental Operating Humidity 90% Storage Temperature -4 to 158°F / -20 to 70°C Storage Humidity 95%
Power Supply Type External Environmental Noise Level 0.0 dB General Certifications CE, FCC, RCM, CCC, VCCI, KC Cooling System Passive
Power Supply Type External Environmental Mean Time Between Failures (MTBF) 6.19 Million Hours Material of Construction Metal Indicator Lights Yes Rack Mountable No Dimensions 6.2 x 4 x 1.1″ / 158 x 101 x 29 mm Weight 0.9 lb / 0.41 kg Packaging Info Package Weight 2.455 lb
Power Supply Type External Environmental Box Dimensions (LxWxH) 10.2 x 6.7 x 3.3″
