Key Features
The camera can output up to 1080p video via HDMI, 3G-SDI, USB-B, and IP ports for flexible connectivity with your preexisting configuration.
Both lenses feature 1/2.8 2MP CMOS sensors, 20x optical zoom, and 12x digital zoom.
A 3.5mm audio line input can add a microphone to the camera s interface.
Various forms of control make remote adjustment intuitive and efficient.
Power can be delivered via the DC input port or PoE via the Ethernet port.
Lumens VC-TR40P Overview

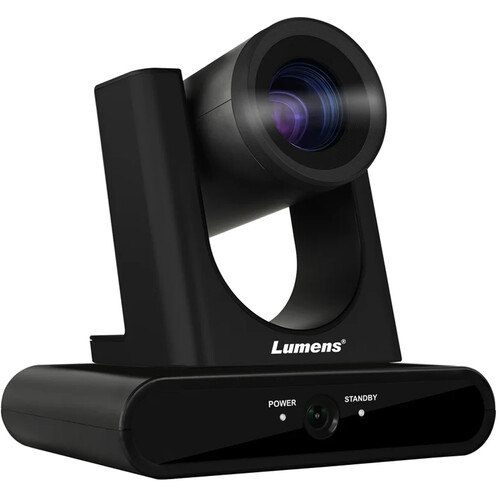

The black VC-TR40PB Dual-Lens AI Auto-Tracking Full HD Camera from Lumens boasts both PTZ and panoramic camera functionality in a single camera for conference space or lecture hall applications. AI-tracking and framing modes with facial recognition technology make automatic adjustments to better bridge the gap between in-person and remote participants. Simultaneously view the entire view with the 720p panoramic lens with 111° horizontal FOV and the individual presenter with the 1080p PTZ lens with 58.7° horizontal FOV.
The camera can output up to 1080p video via HDMI, 3G-SDI, USB-B, and IP ports for flexible connectivity with your preexisting configuration. Both lenses feature 1/2.8″ 2MP CMOS sensors, 20x optical zoom, and 12x digital zoom. A 3.5mm audio line input can add a microphone to the camera’s interface. Various forms of control make remote adjustment intuitive and efficient. Power can be delivered via the DC input port or PoE via the Ethernet port.
AI-Powered Tracking Modes
Stage Tracking Mode: the camera pans left and right to follow a presenter within a defined area
Everywhere Tracking Mode: the camera continuously tracks the presenter’s movement side-to-side and forwards and backwards
Partition Tracking Mode: create a pre-defined partition area that the camera can switch to when the presenter enters inside
Gesture Tracking Mode: raising your hands causes the camera to automatically track you, manually change the tracked subject by selecting the individual via IP interface
Framing Modes
Auto-Framing Mode: the camera will automatically adjust to capture all participants
Partition-Framing Mode: the camera will adjust to a preset position when the presenter walks in to frame and default to auto-framing when they exit
Flexible Mounting and Control
Position upright or suspend from the ceiling thanks to its inverted capabilities which reorient the image and flip the controls
Control over the camera’s movements and modes can be achieved via the serial RS-232 connections
IP via Ethernet port follows VISCA, Pelco-D, and ONVIF protocols
Included remote control
