Name: HuddleCamHD HC20X-SIMPLTRACK3 SimplTrack3 Auto-Tracking PTZ Camera with 20x Optical Zoom
SKU: HC20X-SIMPLTRACK3
Price: $1,899.99 USD
Availability: InStock

HuddleCamHD HC20X-SIMPLTRACK3 Overview

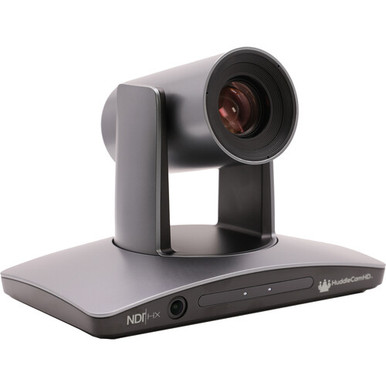

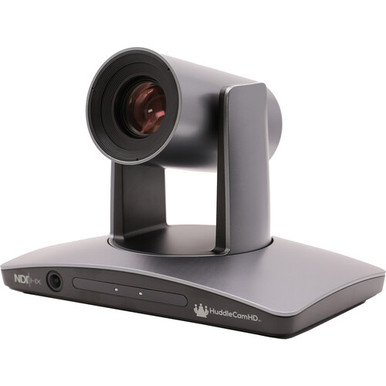

The SimplTrack3 Auto-Tracking PTZ Camera from HuddleCamHD is a dual-sensor PTZ camera with a 20x optical zoom capable of capturing crisp images with resolutions up to 1080p60. Its auto-tracking prowess allows you to achieve motion tracking for subjects up to 55′ away. The camera boasts a 59.5° field of view and 270° rotation, with remote system management that allows accurate control via its software on a network.

The SimplTrack3 offers versatile recording capabilities that allow for simultaneous capture of images from its main lens and a wide-angle video feed from a second, integrated reference lens. Flexible connection options include HDMI, SDI, USB, and IP (including NDI) outputs, as well as Ethernet connectivity with support for PoE (Power over Ethernet).

Effortless Motion Tracking

The SimplTrack3 makes producing high-quality conferences or lectures easier than ever with no required camera operator or expertise. Smooth, automatic motion tracking up to 55′ away with focus up to 20x in 1080p at 60 fps with up to 270° rotation and 59.5° field of view. Connect the SimplTrack3 to any computer with the included USB 3.0 cable. The SimplTrack3 now supports PoE, allowing you to use one simple Ethernet cable to power your dual-sensor camera.

Auto-Tracking and Auto-Framing

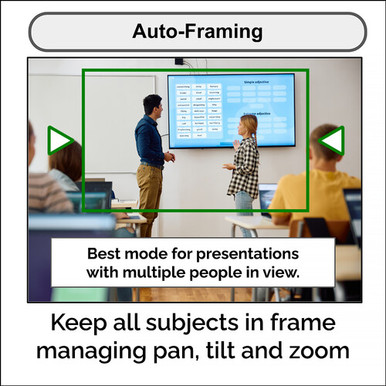

The SimplTrack3’s advanced auto-tracking and auto-framing features can easily toggle between tracking a lecturer and framing groups of people in the scene, making it an ideal solution for conference settings or classroom interactions. The SimplTrack3’s Smart Auto-Tracking technology intelligently locks onto the subject, ignoring other moving objects and adjusting to changes. Easily toggle Auto-Tracking or Auto-Framing ON/OFF. Toggle between manual PTZ controls and automated PTZ movements with a simple command. These commands can be sent to the included software or to an optional joystick controller.

3-Zone Management

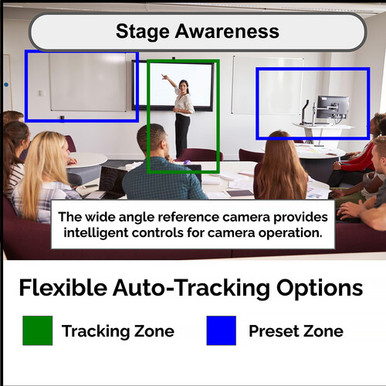

The Tracking Zone encompasses the entire area where an auto-tracking subject might move across your frame. It’s designed to ensure smooth tracking of the presenter or lecturer, covering a wide range and offering flexibility in movement.

The Blocking Zone is strategically set in areas that could cause unwanted tracking, such as near doorways, whiteboards, or TV screens. This zone is crucial for preventing the camera from auto-tracking irrelevant movements or individuals passing by, ensuring the focus remains on the main subject. The SimplTrack3 contains eight blocking zones.

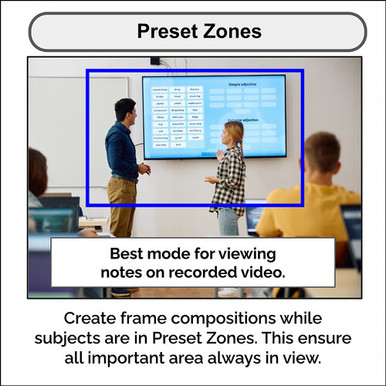

The Preset Zone represents an innovative feature where an automated preset is triggered when the camera enters a selected area. This could include switching to a separate camera, activating a stage light, or any other preset tailored to enhance the presentation or lecture experience. The SimplTrack3 contains eight preset zones.

Customizability

With SimplTrack3, you can automate camera controls and quickly adapt to any unique workflow. Customized tracking sensitivity options allow for the complete customization of the zoom level, pan/tilt speeds, and automatic operations to match the educator’s presentation style. Manual Mode can be enabled, allowing you to operate the SimplTrack3 with the included IR remote, an optional PTZ camera joystick controller, or camera control apps.

Set It and Forget It

The SimplTrack3 caters to various user preferences in its auto-tracking functionality, allowing for a straightforward and simple setup with a single button. For users desiring more control, the SimplTrack3 also offers the capability for more complex setups, enabling detailed adjustment and fine-tuning of the tracking process.

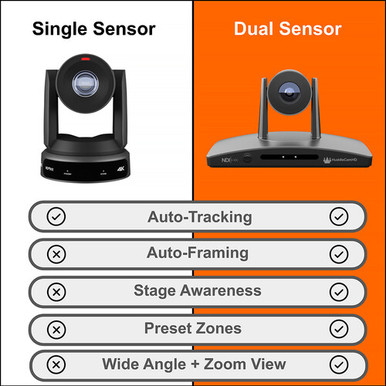

Dual-Sensor System

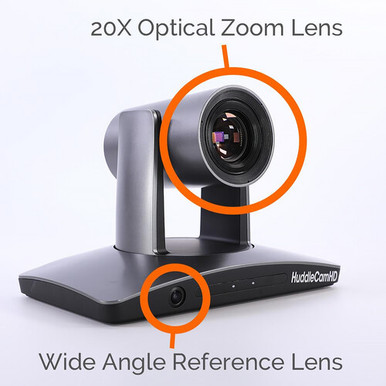

The dual-sensor system offers superior flexibility and performance in diverse environments, from classrooms to auditoriums. Designed with two sensors, the camera can simultaneously monitor the entire room while tracking a single subject, providing viewers with a comprehensive view of the scene. Enjoy the flexibility of a 20x optical zoom lens that brings clarity to every shot, even from afar, ideal for capturing classroom or lecture hall environments. SimplTrack3 offers multiple video outputs: SDI, HDMI, USB, IP (including NDI), and an additional output from the wide-angle reference camera.

Designed for Scalability

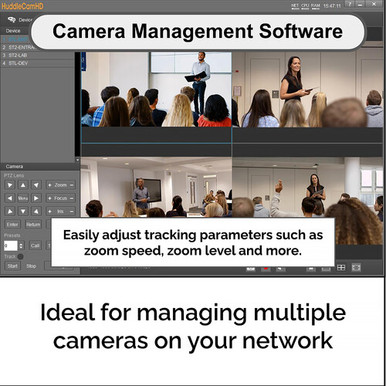

The SimplTrack3 comes with HuddleCamHD’s dedicated management software, enabling large-scale deployments to configure and remotely control a network of cameras on the same LAN. It offers a broad range of output options, allowing seamless integration with your current system. The SimplTrack3 is designed for versatile recording options, offering the ability to simultaneously record with its main lens, reference lens, or both. Its advanced dual-sensor system enables simultaneous capture of a wide-angle video feed from the reference lens and a detailed close-up tracking shot from the main lens. This dual-sensor functionality provides extensive coverage and adaptability, making it ideal for various recording scenarios.

HuddleCamHD HC20X-SIMPLTRACK3 Specs

Image Sensor	Size-Unspecified CMOS
Optical Zoom Ratio	20x
External Recording Modes	SDI/BNC / HDMI / RJ45 / USB 1920 x 1080p up to 60.00 fps
Broadcast Output	NTSC

Imaging

Image Sensor	Size-Unspecified CMOS
Horizontal Resolution (TV Lines)	1080 TV Lines
Focus Control	Autofocus Manual Focus

Lens

Optical Zoom Ratio	20x
Field of View	59.5°

Video Capture

External Recording Modes	SDI/BNC / HDMI / RJ45 / USB 1920 x 1080p up to 60.00 fps
Embedded Audio	HDMI/LAN (RJ45)/NDI/SDI/USB
Broadcast Output	NTSC

Interface

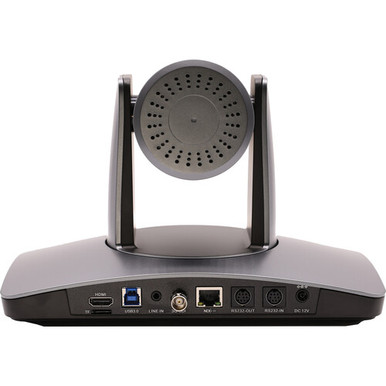

Video I/O

1x HDMI (Unspecified Signal) Output
1x BNC (3G-SDI) Output
1x USB-A 3.0 / 3.1/3.2 Gen 1 Output
1x RJ45 LAN Input/Output

Power

Power I/O

1x RJ45 Input
1x Barrel Input

Environmental

Environmental Resistance

Packaging Info

Package Weight	6.53 lb
Box Dimensions (LxWxH)	11.9 x 11.4 x 9.9″
