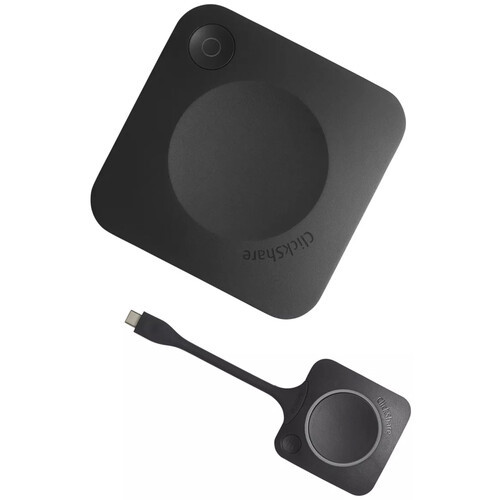

Barco R9861611USB1 ClickShare C-10 Wireless Presentation Gateway

Make conducting team meetings in your office’s conference room more intuitive and incorporate both in-person and virtual participants, using the second-generation version of the Barco ClickShare C-10 base unit and button. This conference system features full bring-your-own-device compatibility for Windows or Mac operating systems and extends to laptops, tablets, and phones using it’s upgraded USB 3.0 technology. Screen sharing and control can be achieved via the button or software application.

Advanced Presentation Features

• Local view of room display
• Full screen
• Single window display
• Annotation
• Blackboarding
• Touchback support

Key Features

• Bring-Your-Own-Device Conference System
• Upgraded USB 3.0 Technology
• Wirelessly Collaborate in Meeting Rooms
• Share Screen in Windows or macOS
• Control via Button or App
• Tablets, Laptops, Mobile Devices
• Enhanced Security, Cloud Management
• 100′ Signal Reach

Specifications

General
Compatibility Not Specified by Manufacturer
Operating System
Windows 10 or Higher
macOS 11 or Higher
Android v9 or Higher (ClickShare App)
iOS 12 or Higher (ClickShare App)
Protocols AirPlay, Google Cast, Miracast
Connections 32 Maximum (Simultaneous)
Noise
25 dBA @ 32 to 86°F / 0 to 30°C
30 dBA @ 86 to 104°F / 30 to 40°C
Network Protocols
WPA2-PSK in Stand Alone Mode
WPA2-PSK or IEEE 802.1X Using ClickShare Button in Network Integration Mode

Inputs / Outputs
USB I/O
1 x USB-A 3.0 / 3.1/3.2 Gen 1 Female Input/Output
1 x USB-C 3.0 / 3.1/3.2 Gen 1 Integrated Male Input/Output
Video I/O
1x HDMI 1.4b Output
1x RJ45 Input/Output
Video Output UHD 4K at 30 Hz via HDMI or USB-C DisplayPort 1.2
Audio Output HDMI

Wireless
Wireless 2.4 GHz Radio/RF*Built-In
Transmission 100′ / 30 m (Maximum Distance)

Power
Power Source USB, AC Input
AC Input Power 110 to 220 VAC, 50 / 60 Hz
Power Consumption
5 W
10 W
24 W (Maximum)

Environmental
Certifications CE, FCC
Operating Temperature 32 to 104°F / 0 to 40°C
Operating Humidity 0 to 85% ()
Storage Temperature -4 to 140°F / -20 to 60°C
Storage Humidity 0 to 90% (Non-Condensing)

Physical
Color Black
Cable Length Not Specified by Manufacturer
Dimensions 5.3 x 5.3 x 1.3″ / 135 x 135 x 34 mm (Base Unit)
Weight 31.7 oz / 900 g

Packaging Info
Package Weight 2.72 lb
Box Dimensions (LxWxH) 11.2 x 7.6 x 3.2″
