Product Overview

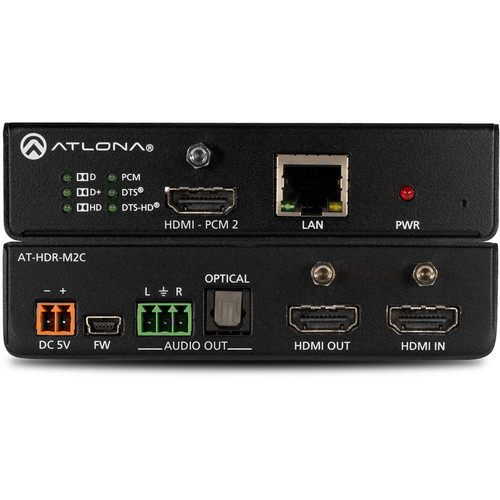

The Atlona AT-HDR-M2C is an audio converter for extracting and downmixing multi-channel PCM, Dolby, and DTS audio from HDMI sources. It features an HDMI input with pass-through, and delivers stereo downmixed audio over a separate HDMI output, as well as analog unbalanced and TOSLINK digital audio outputs.
Shipping charges and warranty coverage vary by product and order. Review the applicable terms before purchase.
Ready to ship
Rates and available methods are shown at checkout
Key Features
The Atlona AT-HDR-M2C is an audio converter for extracting and downmixing multi-channel PCM, Dolby, and DTS audio from HDMI sources. It features an HDMI input with pass-through, and delivers stereo downmixed audio over a separate HDMI output, as well as analog unbalanced and TOSLINK digital audio outputs. The HDR-M2C is compatible with high dynamic range (HDR) formats and is HDCP 2.2 compliant. It supports 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling, as well as HDMI data rates up to 18 Gbps. This audio converter includes EDID management features as well as audio volume and bass / treble controls, all available via Ethernet through the Atlona Management System (AMS), the web GUI, or a control system. The HDR-M2C can conveniently serve surround sound and two-channel audio systems from a multi-channel audio source.
The HDR-M2C is ideal for residential and commercial applications with the latest as well as emerging 4K/UHD and HDR sources and displays. It is compatible with all video resolutions, audio formats, and color space formats supported in the HDMI 2.0a specification, plus the ability to pass metadata for HDR content.
Key Features
| Device Type | Audio converter |
| Form Factor | External |
Networking
| Connectivity Technology | Wired |
| Max Range Indoors | 49 ft |
| Max Resolution | 4096 x 2160 @ 60 Hz |
| Status Indicators | Power, status |
| Features | Firmware upgradable, 4K resolution support, 12-bit Deep Color support, Dolby TrueHD support, Dolby Digital Plus support, EDID Management, built-in audio de-embedder, DTS Digital Surround 5.1 support, multi-channel audio downmixing |
| Compliant Standards | HDCP 2.2 |
Expansion / Connectivity
| Interfaces |
1 x HDMI – 19 pin HDMI Type A female 1 x management – RJ-45 female 1 x micro-USB (management) 1 x audio (output) – terminal block 1 x TOSLINK (output) – TOSLINK female 1 x HDMI (output) – 19 pin HDMI Type A female 1 x HDMI (input) – 19 pin HDMI Type A female |
Miscellaneous
| Included Accessories | Mounting brackets |
| Compliant Standards | CCC, FCC, RoHS, cULus, CEC, RCM |
Power
| Power Device | External power adapter |
| Voltage Required | AC 120/230 V (50/60 Hz) |
| Power Consumption Operational | 6.6 Watt |
Dimensions & Weight
| Width | 5 in |
| Depth | 4.3 in |
| Height | 1 in |
| Weight | 12.7 oz |
Manufacturer Warranty
| Service & Support | Limited warranty – 10 years |
Environmental Parameters
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 20 – 90% (non-condensing) |
Packaging Info
| Package Weight | 2.2 lb |
| Box Dimensions (LxWxH) | 11.1 x 7.2 x 2.9″ |
