Input Connectors HDMI: 4 x HDMI 2.0b
Output Connectors HDMI: 4 x HDMI 2.0b
Video Resolution UHD/HD/SD 4096 x 2160: 60/50/30/25/24 3840 x 2160: 60/50/30/25/24 1080p: 60/59.94/50/30/29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 576p 576i 480p 480i VESA 2560 x 2048, 2560 x 1600, 2048 x 1536 1920 x 1200 1680 x 1050, 1600 x 1200, 1600 x 900 1440 x 900, 1400 x 1050 1366 x 768, 1360 x 768 1280 x 1024, 1280 x 800, 1280 x 768 1152 x 768 1024 x 768 800 x 600
Color Space YUV, RGB
Chroma Subsampling 4:4:4, 4:2:2, 4:2:0
Color Depth 8- / 10- / 12-Bit
HDR HDR10 and Dolby Vision at 60 Hz
HDMI Input / Output PCM 2-Channel LPCM 5.1, LPCM 7.1 Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos DTS-HD Master Audio, DTS:X
Audio Connectors Audio Out: 4 x 4-Pin Phoenix
Sample Rate 32, 44.1, 48, 88.2, 96, 176.4, 192 kHz
Maximum Bit Rate 24-Bit
Connectors LAN: 1 x RJ45 RS-232: 1 x 5-Pin Phoenix USB: 1 x USB Mini-B
HDMI In/Out at 4K: 16.4' / 5 m In/Out at 1080p: 32.8' / 10 m
Bandwidth 18 Gb/s
HDCP 2.2
Certifications CE, FCC, UL, LVD Level VI-Compliant
Operating Temperature 32 to 122°F / 0 to 50°C
Storage Temperature -40 to 158°F / -40 to 70°C
Humidity (Non-Condensing) 20 to 90%
Consumption Operating: 34.3 W Idle: 11.1 W
Input 110 to 240 VAC, 50/60 Hz
Output 24 VDC, 2.7 A
Dimensions Unit Only: 17.2 x 10.0 x 1.7" / 438 x 254 x 44 mm With Feet and Rack Ears: 18.9 x 10.2 x 2.2" / 481 x 260 x 55.5 mm Rack Unit: 1 RU
Weight 6.1 lb / 2.77 kg
Package Weight 9.055 lb
Box Dimensions (LxWxH) 22.5 x 15.3 x 4.1"
The switcher integrates with Ethernet, RS-232, or IR-based control systems and includes front-panel control buttons and an IR remote. A GUI-based integrated Web server enables easy system configuration, and provides HDCP/EDID reporting and device status. The Web GUI uses an easy, intuitive drop-down menu for fast setup and troubleshooting in the field.
The AT-HDR-H2H-44MA features a 1 RU, rack-mountable form and includes rackmount brackets, and an external, international power supply.

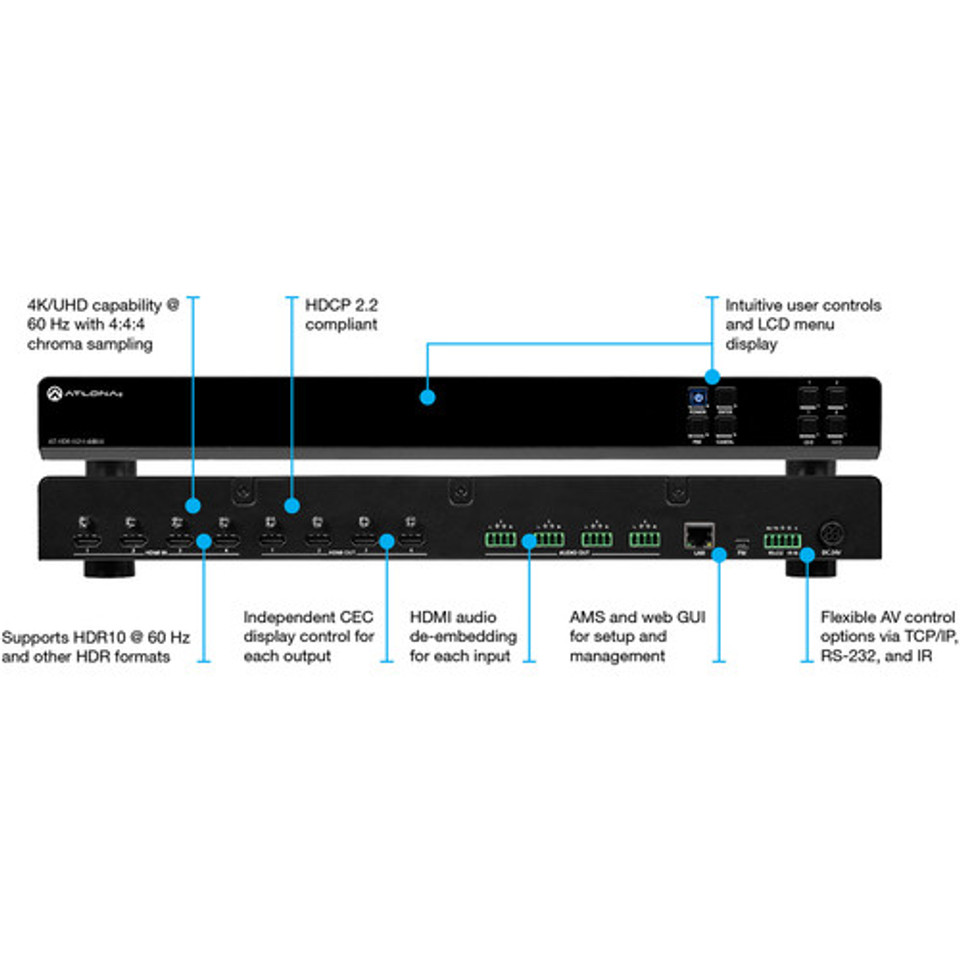

Atlona AT-HDR-H2H Overview 4 x 4 HDMI Matrix
Reduces redundant source equipment and integration costs; easily deployed in residential and commercial settings
Atlona AT-HDR-H2H Overview DCI 4K and UHD 4K 60 Hz Capability
Atlona AT-HDR-H2H Overview Compatible with 4K/UHD and HDR-capable sources and displays
Atlona AT-HDR-H2H Overview Adheres to HDCP 2.2 content protection specification
HDR Format Support Compatible with 4K HDR10 and Dolby Vision at 60 Hz
Fully supports video resolutions, audio formats, and color space formats in the HDMI 2.0b specification
Integrated Web Server with GUI Provides system configuration, matrix switching, RS-232 settings, EDID and HDCP management, and audio setup
Integrated Web Server with GUI Enables quick setup and trouble-shooting in the field using a PC or mobile device
Integrated Web Server with GUI Ethernet, RS-232, and IR Control
Integrated Web Server with GUI Front-Panel Button Controls and LCD Menu Display
Integrated Web Server with GUI Control, configure, and monitor from the switcher's front panel
Integrated Web Server with GUI HDMI Audio De-Embedding* for each Channel
Integrated Web Server with GUI Extracts HDMI 2-channel PCM audio to an unbalanced analog audio output paired with a corresponding HDMI input
Provides an additional integration option for whole-house and commercial audio systems
Multi-Channel Audio Compliant Supports PCM, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS Digital Surround, DTS-HD Master Audio, and DTS:X
Enables a multi-channel audio stream to be used with a residential or professional audio system Field-Updatable Firmware
Rear-panel USB port for easy updating of switcher EDID Management
Multi-Channel Audio Compliant Manages EDID communications through a display's EDID or an internally stored EDID
Ensures desired audio formats and video resolutions are provided to your AV system HDCP Management
Multi-Channel Audio Compliant Enables non-protected material from PCs to pass to non-compliant displays, streaming devices, and teleconference systems; protected content is not transmitted
Easily installs in rack-mounted systems with the included 19" rackmount brackets
Input Connectors HDMI 4 x HDMI 2.0b
Output Connectors HDMI 4 x HDMI 2.0b, Input / Output PCM 2-Channel LPCM 5.1, LPCM 7.1
Output Connectors Video Resolution UHD/HD/SD 4096 x 2160: 60/50/30/25/24 3840 x 2160: 60/50/30/25/24
Output Connectors 1080p 60/59.94/50/30/29.97/25/24/23.98
Output Connectors 1080i 60/59.94/50
Output Connectors 720p 60/59.94/50 576p 576i 480p 480i VESA 2560 x 2048, 2560 x 1600, 2048 x 1536 1920 x 1200 1680 x 1050, 1600 x 1200, 1600 x 900 1440 x 900, 1400 x 1050 1366 x 768, 1360 x 768 1280 x 1024, 1280 x 800, 1280 x 768 1152 x 768 1024 x 768 800 x 600
Output Connectors Color Space YUV, RGB, Depth 8- / 10- / 12-Bit HDR
Output Connectors Chroma Subsampling 4:4:4, 4:2:2, 4:2:0
Output Connectors HDR10 and Dolby Vision at 60 Hz Audio
Output Connectors Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos
DTS-HD Master Audio, DTS X
Audio Connectors Audio Out 4 x 4-Pin Phoenix Sample Rate 32, 44.1, 48, 88.2, 96, 176.4, 192 kHz Maximum Bit Rate 24-Bit Communication Interface Connectors
Audio Connectors LAN 1 x RJ45 RS-232: 1 x 5-Pin Phoenix
Audio Connectors USB 1 x USB Mini-B Max Cable Distances HDMI
In/Out at 4K 16.4' / 5 m
In/Out at 1080p 32.8' / 10 m Signal Bandwidth 18 Gb/s HDCP 2.2 Environmental Certifications
Audio Connectors CE, FCC, UL, LVD Level VI-Compliant
Audio Connectors Operating Temperature 32 to 122°F / 0 to 50°C Storage Temperature -40 to 158°F / -40 to 70°C Humidity (Non-Condensing) 20 to 90% Power Consumption
Audio Connectors Operating 34.3 W
Audio Connectors Idle 11.1 W Input 110 to 240 VAC, 50/60 Hz Output 24 VDC, 2.7 A Physical Dimensions
Audio Connectors Unit Only 17.2 x 10.0 x 1.7" / 438 x 254 x 44 mm With Feet and Rack Ears: 18.9 x 10.2 x 2.2" / 481 x 260 x 55.5 mm
Audio Connectors Rack Unit 1 RU Weight 6.1 lb / 2.77 kg Packaging Info Package Weight 9.055 lb
Audio Connectors Box Dimensions (LxWxH) 22.5 x 15.3 x 4.1"
SKU AT-HDR-H2H-44MA
Brand Atlona
