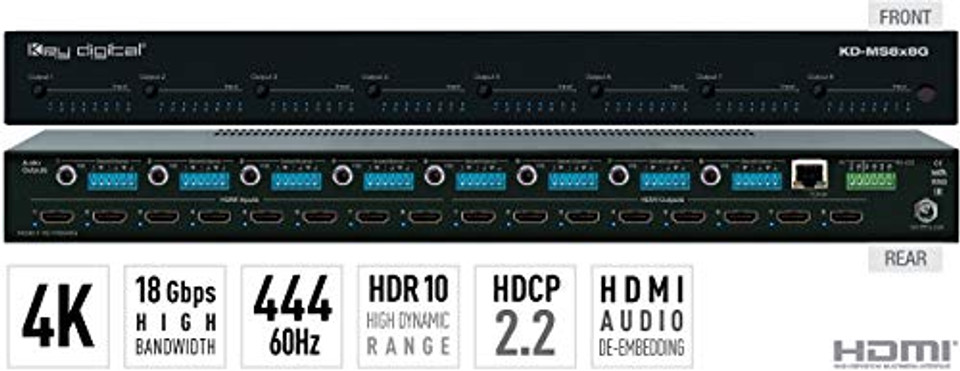

Key Digital MS8X8G 8×8 4K 18G HDMI Matrix Switcher with Independent Audio Switching, Balanced/Unbalanced Audio, Audio De-embedding of Analog L/R/PCM

Key Digital’s KD-MS4x4G and KD-MS8x8G are 4K matrix switchers with support of 18Gbps signal bandwidth and HDCP 2.2 for routing and distributing 4/8 HDMI source signals to 4/8 displays. KDMS4x4G and KD-MS8x8G feature 4/8 analog and digital audio outputs which may be independently controlled to follow the HDMI output selection or separately switched to accommodate a wide variety of usage applications in professional AV systems integration. KD-MS4x4G/KD-MS8x8G supports all SD, HD, VESA and Ultra HD/4K video standards up to and including UHD/4K 18G and 1080p. All UHD/ 4K EDID handshake files include HDR header information

Features:

• HDMI Matrix Switching: 8 HDMI sources to 8 HDMI outputs
• Ultra HD/4K Support: 4096×2160 or 3840×2160 24/25/30/60hz at 4:4:4 (signals up to 18Gbps bandwidth)
• HDCP Licensing: Fully licensed and compatible with HDCP 2.2
• HDR10 (High Dynamic Range): More life-like images through a greater range of luminance levels

• Resolution Support: Supports all SD, HD, and VESA (VGA, SVGA, XGA, WXGA, SXGA, UXGA) up to 4096x2160p
• Deep Color Support: Up to UHD/4K 60Hz 4:2:0/12 bits, 60Hz 4:2:2/12 bits
• Independent Audio and Video Matrix: Output HDMI and Audio ports may switch together or independently
• Full Buffer System™: Manages TMDS re-clocking / signal re- generation, HDCP authentication to source & display, and EDID Control handshake
• EDID: Internal library with 15 internal EDID configurations per input, in addition to native EDID data for any Output/ Display
• TMDS re-clocking: Long HDMI connectivity support with Key Digital® HDMI cables
• Lossless Compressed Digital Audio: Dolby® TrueHD, Dolby® Digital Plus, DTS-HD Master Audio™, and Dolby® Atmos

• Control: Front panel buttons/LEDs, Serial IR, Optical IR, RS-232 Control, and TCP/IP Control
• Control System Support: Key Digital® app ready. Key Digital Management Software™ Pro (KDMS™ Pro) ready, Compass Control® Pro ready. Fully controllable by all IR, RS-232, and TCP/ IP supported control systems via open API.
• Key Digital® App & KDMS® Pro Ready: Scan & detect population for pre-built GUI and TCP/IP control via Key Digital® iOS App and Key Digital Management Software™ Pro (KDMS™ Pro) PC Software

SPECIFICATIONS

Technical:

• Input (Each): 1 HDMI Connector, Type A, 19 Pin Female

• Output (Each): 1 HDMI Connector, Type A, 19 Pin Female
• Output (Each): Balanced/unbalanced line level audio on 6-pin terminal block. Drives 2VRMS line audio input with a sampling rate of 192KHz
• Output (each): RCA female for digital audio following SPDIF format (IEC 60958). Supports sampling rate up to 192KHz
• Video Bandwidth: TMDS bandwidth 18 Gbps
• DDC Signal (Data): Input DDC Signal – 5 Volts p-p (TTL)
• HDMI Video/Audio Signal: Input Video Signal – 1.2 Volts p-p
• DDC Communication: EDID and HDCP Bi-directional buffering to Display and Source
• K-Factor: 0.22% @ optimal EQ » Video Isolation (Crosstalk): -45dB @ 5MHz
• Analog Audio Max Output Level: 4dBu on 150kΩ, DC coupling
• Audio Bandwidth: 20Hz to 20kHz @ 0dBu
• TND + Noise: 0.33% @0dBu @ 1kHz » PCM Max Input Level: 1Vpp on 75Ω, AC coupling
• PCM Max Output Level: 1Vpp on 75Ω, DC coupling
• Wired IR: modulated IR signal input, 0-5V TTL or -10 to +10V
• Power: 12V/3.3A (40W) AC Power Supply with Grounded, 2.1mm ID DC Power Jack with Screw In Type

General:

• Regulation: CE, RoHS, WEEE
• Rack Mount: 1U, 1 Rack Width (rack ears included)
• Enclosure: Black Metal
• KD-MS4x4G Dimensions: L = 17.32” W = 5.78” H = 1.72”
• KD-MS8x8G Dimensions: L = 17.32” W = 7.27” H = 1.72”
• Shipping Carton Dimensions: L = 23.4” W = 8.54” H = 2.36”
• Product Weight: 6 lb
• Shipping Weight: 9
• Accessories: IR Remote, UL Certified Power Supply

ACCESSORIES

• Power Supply: (qty 1) 12V/3A, 36W, desktop type, model KDSP12V3A
• Rack Ears
• KD-RMCSKA / KD-RMSWCSK Remote Control
• 6-Pin Terminal Blocks KD-MS4x4G – (qty 5) / KD-MS8x8G – (qty 9)
