BSS Soundweb London BLU-100 1RU Rack Mount 12x8 Signal Processor with

BBS
Condition:
New
Retail: $3,500.00
$2,438.32
— You save $1,061.68
Shipping:
Free Shipping
(No reviews yet) Write a Review
SKU:
BLU-100
UPC:
691991004223
MPN:
BLU-100
Availability:
In stock, ship same-day or until 48 Hrs
Minimum Purchase:
1 unit
  • BSS Soundweb London BLU-100 1RU Rack Mount 12x8 Signal Processor with
  • BSS Soundweb London BLU-100 1RU Rack Mount 12x8 Signal Processor with

Description

The Soundweb London BLU-100 offers a fixed configuration of 12 inputs and 8 outputs, configurable signal processing and a high bandwidth, fault tolerant digital audio bus.

The BLU-100 has open architecture which is fully configurable through HiQnet London Architect. A rich palette of processing and logic objects and a "drag and drop" method of configuration provide a simple and familiar design environment.

This processor features a low latency, fault tolerant digital audio bus of 48 channels which uses standard Category 5e cabling giving a distance of 100m between compatible devices. Fiber media converters can be used to increase the distance between devices to over 40km.

The BLU-100 is compatible with the entire Soundweb London family and its 48 channel digital audio bus represents channels 1-48 of the larger 256 channel digital audio bus when integrated with the BLU-800, BLU-320, BLU-160, BLU-120 and BLU-BOB devices.

Analog Inputs provide software configurable gain in 6dB steps up to +48dB per channel and software selectable Phantom Power per channel.

Phantom Power, Signal Present and Clip information per channel is easily accessible, without the requirement for a PC, from clear front panel LED indication. A bi-directional locate function allows devices to be identified both from and within HiQnet London Architect.

12 Control Inputs and 6 Logic Outputs allow the BLU-100 to be integrated with GPIO compatible devices. The Soundweb London Interface Kit, comprehensive documentation which details how Soundweb London systems can be integrated with third party control systems, is included within the installation of HiQnet London Architect.

The BLU-100 and the other members of the Soundweb London family provide the building blocks of the perfectly tailored system solution.

  • Features:

    • 12 Analog Inputs (with 48v Phantom Power per Channel)
    • 8 Analog Outputs
    • Configurable Signal Processing
    • Rich Palette of Processing and Logic Objects
    • 48 Channel, Low Latency, Fault Tolerant Digital Audio Bus
    • Clear Front Panel LED Indication
    • Bi-Directional Locate Functionality
    • 12 Control Inputs and 6 Logic Outputs for GPIO Integration
    • Soundweb London Interface Kit for Third Party Control System Integration (Documentation)
    • HiQnet Device
    • Configuration, Control and Monitoring from HiQnet London Architect

  • Specifications:

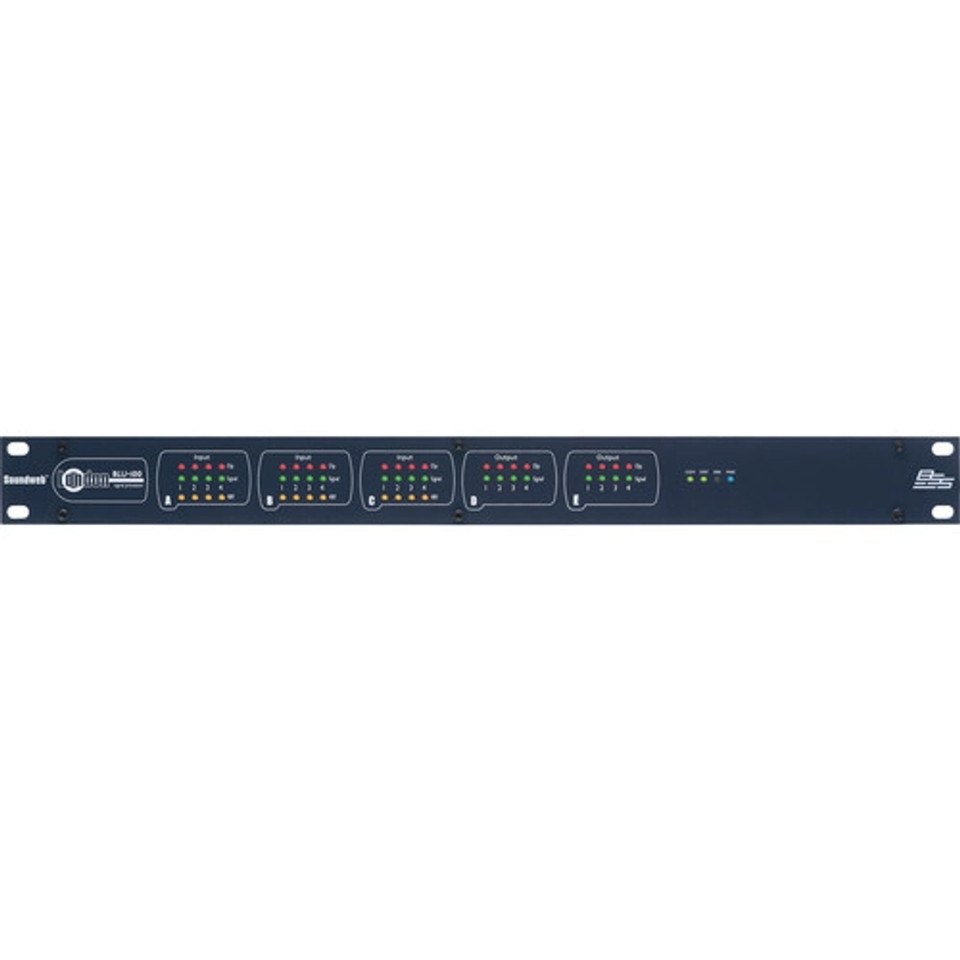

    • Front Panel Led Indicators
    • Per Input: Signal Present, CLIP, 48V (Input only)
    • Other: COM, STAT, ERR, PWR

      Analog Inputs

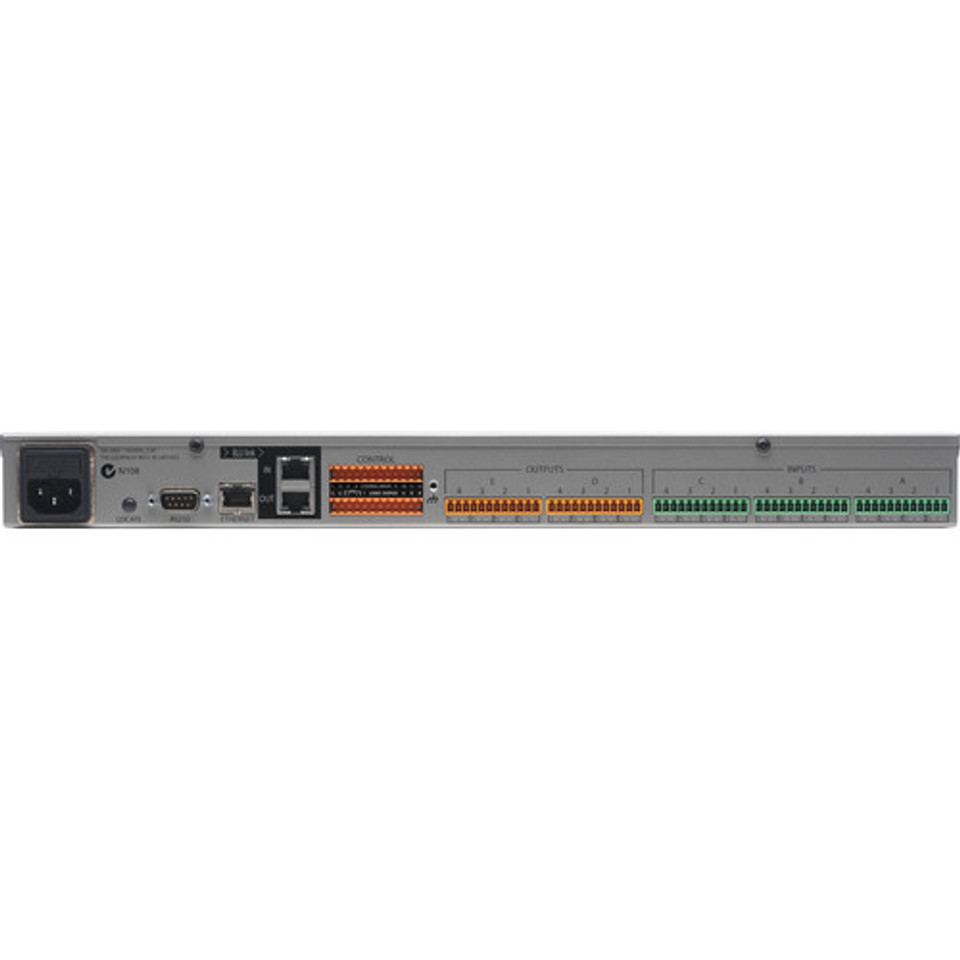

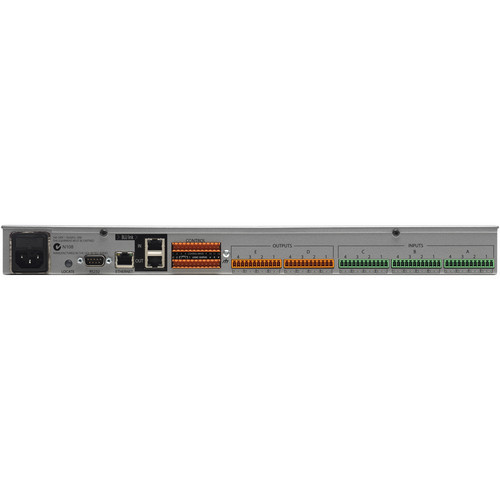

    • 12 electronically balanced on Phoenix Combicon removable screw connectors
    • Mic/Line Inputs: Nominal gain 0dB, electronically switchable up to +48dB,in +6dB steps
    • Input Impedance: 3.5kΩ
    • Maximum Input Level: +20dBu with 0dB input gain,+8dBu with 12dB gain
    • CMRR: >75dB at 1KHz
    • Input Noise (E.I.N.): <-128dBu typical with 150Ω source
    • Phantom Power: 48V nominal, selectable per input
    • A/D Latency: 37/Fs [0.77ms@48k]

      Analog Outputs
    • 8 electronically balanced on Phoenix/Combicon removable screw connectors
    • Maximum Output Level: +19dBu
    • Frequency Response: 20Hz-20KHz (+0.5dB/-1dB)
    • THD: <0.01% 20Hz to 20KHz, +10dBu output
    • Dynamic Range: 108dB typical, 22Hz-22KHz unweighted
    • Crosstalk: <-75dB
    • Output Impedance: 40Ω balanced and 20Ω unbalanced
    • D/A Latency: 29/Fs [0.60ms@48k]

      Control Ports
    • 12 inputs and 6 outputs
    • Control Input Voltage: 0 to 4.5v
    • Control Input Impedance:4.7kΩ to +5V (2-wire mode), >1MΩ (3-wire mode)
    • Logic Output Voltage: 0 or +5V unloaded
    • Logic Output Impedance: 440Ω
    • Logic Output Current: 10mA source, 60mA sink

      Watchdog Output
    • Phoenix/Combicon connector for failsafe control
    • Opto Output Current: 14mA maximum
    • Withstanding Voltage: 80V maximum (Off)
    • Series Impedance: 220Ω (isolated)

      Control Network
    • Connectors: RJ45 Ethernet connector
    • Maximum Cable Length: 100m/300ft on Category 5 cable between device and Ethernet switch

      BLU link
    • Connectors: 2 x RJ45 Ethernet connectors
    • Maximum Cable Length: 100m/300ft on Category 5e cable between devices
    • Max. Number of Nodes: 60
    • Latency: 11/Fs [0.23ms@48k]
    • Pass Through Latency: 4/Fs [0.08ms@48k]

      Power and Dimensions
    • Mains Voltage: 100-240V AC, 50/60Hz
    • Power Consumption: <55VA
    • BTU Rating: <188 BTU/hr
    • Operating Temp. Range: 32° to 113°F (0° to 45°C)
    • Dims: (H(U)xWxD): 1.75 (1U) x 19 x 9.0" (45 x 483 x 229mm)
    • Weight: 6.4Lbs (2.9kg)
View AllClose

Warranty Information

1 Year Parts & Labor Manufacture Warranty
