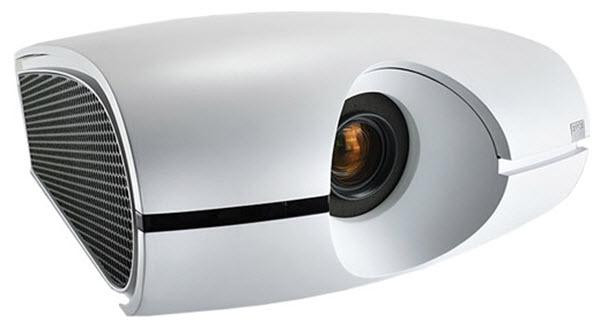

Barco PHWU-81B 7500-Lumen WUXGA DLP Projector

Free Shipping
(No reviews yet) Write a Review
In stock, ship same-day or until 48 Hrs


Barco PHWU-81B Overview

Bring versatility into the office with the Barco PHWU-81B 7500-Lumen WUXGA DLP Projector. It uses separately-sold interchangeable lenses to offer a variety of throw ratios, image sizes, and zoom ranges. The projector's HDMI, DVI-D, 5-BNC, S-video, and VGA inputs will allow you to show images from a number of different sources. It is controllable via Ethernet, RS-232, or the included IR remote.

Product specifications

Projector type WUXGA single­chip DLP projector
Technology 0.67" DMD
Color wheel 4S standard (RGBW)
Resolution 1,920 x 1,200 WUXGA
Brightness 7,500 ANSI lumens / 5,450 ANSI lumens (eco­mode)(compliant with ISO 21118)
Contrast ratio 2,800:1
Aspect ratio 16:10
ScenergiX Yes
Lens type H lens
Lenses 1.7­2.3:1; 0.8­1.0:1; 1.3­1.8:1; 2.2­2.7:1; 2.8­4.5:1; 4.5­8.7:1
Optical lens shift Vertical: ­0% to +134% / horizontal: ­19% to +19%
Color correction Yes
Lamps 2 x 350W AC lamp
Lamp lifetime Up to 2,000 hours (full power) / Up to 4,000 hours (eco mode)
Sealed DLP™ core Yes
Optical dowser Yes
Advance Picture in Picture Split
Orientation table ­ ceiling
Integrated web server Yes
Keystone correction Yes
Inputs 5 BNC (RGBHV, component), S­VIDEO, D­SUB 15­pin, HDMI, DVI­D (HDCP), SDI
Input resolutions up to WUXGA (1,920 x 1,200) 60Hz
Software tools Projector Toolset
Control IR, RS232, RJ45
Network connection 10/100 base­T, RJ­45 connection
Power requirements 100­240V / 50­60Hz
Max. power consumption 910W / 690W(eco mode) / 0.3W (standby)
Noise level (typical at 25°C/77°F) 44 dBA (bright mode)/ 39 dBA (eco mode)
Operational ambient temperature 5­40°C / 41°­104°F
Operational humidity 30­90%
Dimensions (WxLxH) 510 x 660 x 263 mm
Weight 21kg
Shipping dimensions (WxLxH) 650 x 840 x 415 mm
Shipping Weight from Factory 26.5 kg
Certifications CB test certificate, US emc, US safety, CE emc and safety, CCC emc and safety

View AllClose

Warranty Information

Warranty 3 years standard warranty (conditions can differ from region to region. Contact your local sales or service rep for more details)
