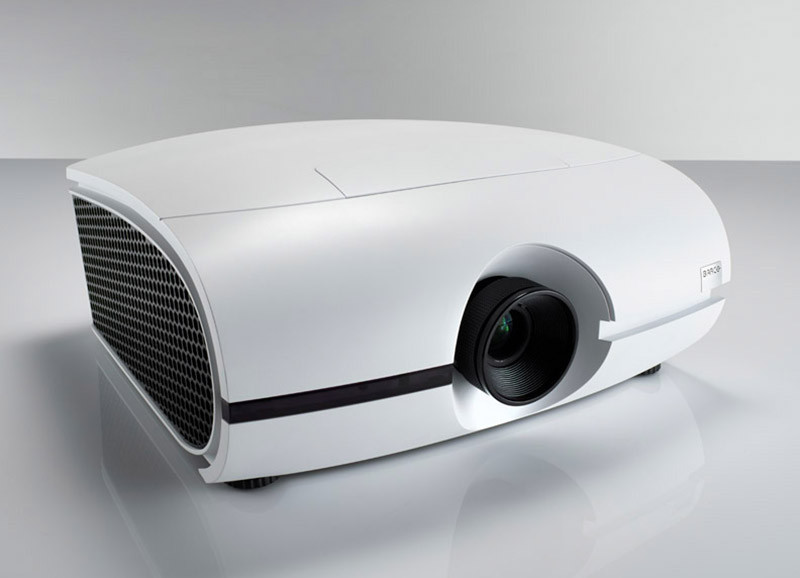

Barco PFWU-51B 4650-Lumen WUXGA DLP Projector

Barco PFWU-51B Overview

Bring versatility into the office with the Barco PFWU-51B 4650-Lumen WUXGA DLP Projector. The included lens has a 1.54 to 1.93:1 throw ratio, and separately-sold interchangeable lenses offer a variety of throw ratios, image sizes, and zoom ranges. Its HDMI, DVI-D, DisplayPort, component, S-video, and two VGA inputs will allow you to show images from a number of different sources.

The projector has a VGA output to enable daisy-chaining of multiple projectors to show the same image in multiple locations, along with an analog audio output to get the sound where it needs to go. It is controllable via Ethernet, RS-232, or the included IR remote.

Product specifications

Projector type WUXGA single­chip DLP projector
Technology 0.67″ DMD
Color wheel 5­segment (RGBWY)
Resolution 1,920 x 1,200 WUXGA
Brightness 4,650 ANSI lumens*
3,450 ANSI lumens (eco­mode)*
*Measurement, measuring conditions, and method of notation all comply with ISO
21118 international standards.
Contrast ratio 1,800:1
Brightness uniformity 85%
Aspect ratio 16:10
Lens type F lens
Lenses 1.54­1.93:1, 1.25X; 1.93­2.89:1, 1.5X; 0.77:1 FIX
Optical lens shift Vertical: ­30% to +110%/ horizontal: ­10% to +10%
Lamps 1 x 370W P­VIP
Lamp lifetime Up to 1,500 hours (full power) / Up to 3,500 hours (eco mode)
Transport with lamp Yes
Orientation table ­ ceiling
Integrated web server Yes
3D Yes
Keystone correction app. 40° vertical
Inputs HDMI; DVI­D; DisplayPort; 2 x VGA in; VGA out; RGBHV; YUV; S­video; video ; RJ­45
1;3D Sync out; Audio out
Input resolutions up to WUXGA (1,920 x 1,200) 60Hz
Software tools Projector Toolset
Control IR, RS232, RJ45
Network connection 10/100 base­T, RJ­45 connection
Power requirements AC input 100 ~ 240 app. 10% voltage (auto ranging)
Max. power consumption 480W @ 100V/460W @ 240V / 365W @ 100VAC/355W @ 240VAC (eco mode)
/ less than 0.5W (standby)
Noise level (typical at 25°C/77°F) 42 dBA (bright mode) / 37 dBA (eco mode)
Operational ambient temperature 5­35°C / 41°­95°F
Operational humidity 10­85%
Dimensions (WxLxH) 460 x 446 x 209 mm
Weight 12 kg (26.5 lb)
Shipping dimensions (WxLxH) 594 x 568 x 355mm
Shipping Weight from Factory 16.8 kg
Certifications CB test certificate, US emc, US safety, CE emc and safety, CCC emc and safety
