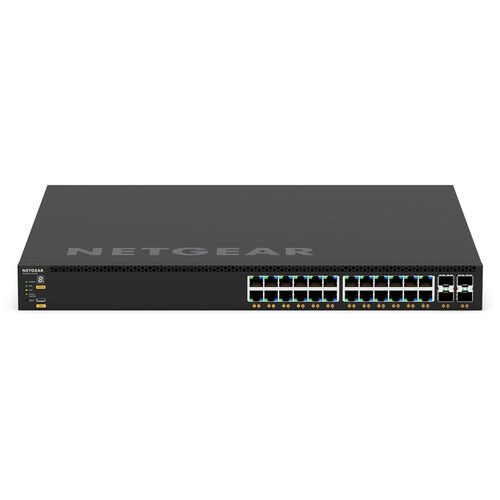

Netgear GSM4328-100NES 24-Port Gigabit PoE+ Compliant Managed AV IP Switch

Introducing the NETGEAR AV and IT M4350 Switches, engineered and certified for audio/video over IP with dedicated service and support. The M4350 brings all the simplicity from the M4250 AV Line packed in more Enterprise-class hardware with redundant power supplies and larger fabrics with 25G and 100G uplinks. The revolutionary NETGEAR AV user interface and Engage™ Controller contain pre-configured profiles for all major audio, video, and lighting protocols.

NETGEAR listens to and supports the Pro AV community

• IGMP Plus™ means AV-over-IP multicasting will work out of the box and not flood your network
• Auto-LAG and Auto-Trunk automatically configure the uplinks between multiple switches
• The Engage™ Controller manages all M4250, M4300, and M4350 switches for your AV installations
• NETGEAR ProAVDesign team tohelp with system design andimplementation toensure theproject will work
• AVB, Dante, Q-SYS, AES67, NVX, AMX, Q-SYS, NDI 4, NDI 5, ZeeVee, Aurora Multimedia, Kramer, Atlona, LibAV, Visionary, SDVoE, and many others!
• SMPTE ST 2110 supported on select models, always with the same simplicity from the AV UI

Enterprise-class hardware

• From 1G to 2.5G, to 10G, to 25G, to 100G always within 40cm (15.7in) depth
• Controlled thermal and acoustics (intelligent fans configurable in Quiet Mode to minimize noise, or Cool Mode to minimize heat)

Other IT use cases

• Edge to core stackable platform, from 1 Gigabit to 100 Gigabit for midsize organizations
• Non-stop forwarding (NSF) provides advanced High Availability (HA) with hitless failover across the stack

Industry standard management

• Industry standard command line interface (CLI), main NETGEAR IT web interface (GUI)
• SNMP, sFlow and RSPAN – the entire feature set is available without license

Industry leading warranty

• NETGEAR M4350 series is covered under NETGEAR ProSAFE Limited Lifetime Hardware Warranty
• 90 days of Technical Support via phone and email, Lifetime Technical Support through online chat and Lifetime Next Business Day hardware replacement

Main Features

• 24 Gigabit PoE+ ports with 4 10GBASE-X SFP+ uplinks.
• 880W internal power supply providing 648W of PoE budget.
• 1 slot for modular power supply (1+1 redundancy and/or EPS share).
• Any APS350W, APS600Wv2, APS920W, or APS2000W can be used.
• The PoE budget can reach 720W, when the redundant PoE budget remains 648W.
• Virtual Chassis stacking provides non-stop forwarding (NSF) and hitless failover.
• Layer 3 feature set includes static, policy-based, and dynamic routing.
• NETGEAR IGMP Plus™, AV User Interface, and Engage Controller speed up AV installations.
• NETGEAR ProSAFE® Limited Lifetime Hardware Warranty.
• Lifetime Next Business Day Hardware Replacement.

Specifications

Key Specs
Inputs/Outputs
24x RJ45 Gigabit Ethernet PoE+ (30 W, 802.3at)
4x SFP+ 10 GbE WAN
1x RJ45 Gigabit Ethernet LAN
1x USB-C
2x USB-A
Stackable No
Switching Bandwidth 128 Gb/s
PoE Power Budget 648 W
Stackable No

Protocols
Layer Services Supported Layer 2, Layer 3
Supported Protocols
Auto-MDIX/MDI
DHCP Server
DoS
IGMP Snooping
IPv4
IPv6
Link Aggregation
Queuing Strict Priority, Weighted Round Robin (WRR)
Jumbo Frames Support 12,000 Bytes
MAC Address Table Size 16K
Multicast Groups 512

Security
Security Features DoS Attack Prevention

Performance
Latency 0.9 to 2.4 µs
Forwarding Rate 95.23 Mpps
Switching Bandwidth 128 Gb/s
Packet Buffer 16 Mb

Computer
CPU Quad-Core: Up to 1.8 GHz Cortex A57
Memory 2 GB DDR4

Electrical
PoE per Port 30 W
PoE Power Budget 648 W
Input Power 100 to 240 VAC, 50 / 60 Hz
Power Supply Type Internal

Environmental
Operating Temperature 32 to 113°F / 0 to 45°C
Operating Humidity 90%
Storage Temperature 24 to 158°F / -4 to 70°C
Noise Level 32.0 dB

General
Certifications No
Cooling System Fan
Indicator Lights Yes
Rack Mountable Yes 1 RU
Dimensions 17.3 x 15.7 x 1.7″ / 440 x 400 x 43.2 mm
Weight 14.13 lb / 6.41 kg
