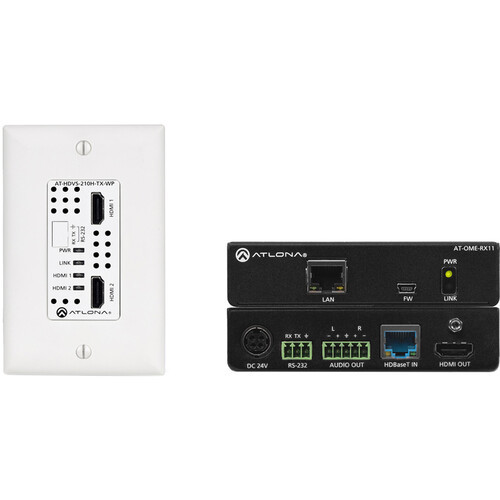

Atlona AT-HDVS-210H-TX-WP-KIT 4K HDMI over HDBaseT 2x1 Switch Wall Plate Extender Kit

Atlona AT-HDVS-210H Overview

The 4K HDMI over HDBaseT 2x1 Switch Wall Plate Extender Kit from Altona is a complete integration solution with 4K video extension, automatic switching for the two HDMI inputs, and automatic display control. It includes Altona's 4K UHD 2x1 HDBaseT Wall Plate Switcher with Dual HDMI Inputs and a 4K/UHD HDMI over HDBaseT Receiver with Ethernet, Control, and PoE. The Wall Plate Switcher features a compact, low-profile enclosure and the receiver remotely powers the transmitter. This kit extends A/V and control up to 330'.

Atlona 4K UHD 2x1 HDBaseT Wall Plate Switcher with Dual HDMI Inputs

The Atlona AT-HDVS-210H-TX-WP is a 2x1 switcher and HDBaseT transmitter with two HDMI inputs. It features a US one-gang, Decora-style wallplate form factor, and includes interchangeable black and white wallplates and faceplates. Video signals up to 4K/UHD with 4:2:0 chroma subsampling, plus embedded audio and control can be transmitted. The HDVS-210H-TX-WP is HDCP 2.2 compliant. It is designed for use with select HDVS Series receivers and scalers, as well as the AT-UHD-EX-100CE-RX-PSE receiver, and Atlona switchers and matrix switchers with HDBaseT inputs. This transmitter can serve as an integral component of a fully automated AV system, with the convenience of automatic input selection and display control.

• 2x1 HDBaseTTM switcher with HDMI inputs
• HDBaseT transmitter for AV, power, and control
• 4K/UHD capability with 4:2:0 chroma subsampling
• Remotely powered via PoE
• Automatic input selection and automatic display control
• TCP/IP and RS-232 control

All-in-one switcher, controller, and extender
The HDVS-210H-TX-WP combines the benefits of auto-switching, integrated display control, and HDBaseT signal transmission. It also enables input selection, volume, and display on/off control from external RS-232 or TCP/IP commands. The HDVS-210H-TX-WP incorporates many popular integration convenience features while delivering excellent value for classrooms, huddle rooms, and meeting spaces.
Automatic display control
The HDVS-210H-TX-WP provides control to a display through RS-232 or CEC, without the need for a separate control system. This simplifies system design and integration while reducing costs. With automatic display control, the HDVS-210H-TX-WP can trigger a display to power on automatically whenever a laptop or other device is connected. At the end of the presentation, when the presenter disconnects the laptop, the HDVS-210H-TX-WP forces the display to power off. Ease of presenter interaction with the system, and the savings incurred by automatic display shutdown provide a significant return on investment. The HDVS-210H-TX-WP display control capability can also be triggered by an external control system.
Reliable auto-switching
The HDVS-210H-TX-WP automatically selects an input source based on detection of the 5 volt hot plug detect (HPD) signal, as well as active video. This ensures reliable auto-switching operation for all video sources, including DVRs, DisplayPort / Mini DisplayPort adapters, and other devices that always maintain the HPD line at the 5 volt "high" state but may not be delivering active video.
Atlona 4K/UHD HDMI over HDBaseT Receiver with Ethernet, Control, & PoE (328')

The power sourcing 4K/UHD HDMI over HDBaseT Receiver from Atlona supports AV signals up to 328’over category cable with Ethernet pass-through, RS-232, CEC, and Power over Ethernet. It is compatible with signals up to 4K/UHD @ 60 Hz with 4:2:0 color sub-sampling, plus embedded multi-channel audio and remote 48V power for the transmitter. The receiver is ideal for use with the AT-HDVS-200-TX transmitter (sold separately) for passing 4K signals to a display. It is HDCP 2.2 compliant and supports EDID communication. The receiver features a quarter-rack width metal enclosure for installation with rear panel I/O ports for uncluttered wire management. This PSE (Power Sourcing Equipment) device is powered via the included desktop power supply, and provides PoE to the AT-HDVS-200-TX or other PoE-compatible transmitters.

4K/UHD Capability
• Compatible with Ultra High Definition sources and displays
• Full support of 4K/UHD streaming services and playback devices
HDCP 2.2 Compliant
• Adheres to latest specification for High-bandwidth Digital Content Protection
• Allows protected content stream to pass between devices
PSE - Power Sourcing Equipment
• Uses external power supply (included) to power remote PoE-compatible HDVS series transmitters over HDBaseT
• Eliminates the need for the receiver to be powered remotely or by a power-injection device
AV, Ethernet, Power, and Control over HDBaseT
• Receives 4K/UHD video, audio, 100BaseT Ethernet, power, and control through a single cable
• Eliminates multiple cable runs between source, control system, router, and display
Extended Distance HDMI Extension
• Receives HDMI signals up to 328' @ 1080p with Cat5e/6 or 4K/UHD using Cat6a/7 cable
• Uses easy-to-integrate category cable for low-cost, reliable system installation
Extends RS-232, CEC, and Ethernet Control Signals
• Control signals travel over HDBaseT link to device for maximum control system flexibility
• Simplifies integration of source, control system, and display.
Rear Panel I/O Connectors
• Placement of ports on rear panel simplifies wire management
• Saves installation time and eliminates clutter
Multi-Channel Audio Compliant
• Supports PCM, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS Digital Surround, DTS-HD Master Audio, DTS:X
• Allows any multi-channel audio stream to be used within a professional audio system
Field Updatable Firmware
• Front panel USB port provides an easy means for kit upgrades
• Ensures long term system return on investment
Front Panel Power and Link Status LEDs
• LED indicators provide power and HDBaseT link status information
• Provides easy setup and troubleshooting
Low-Profile 1" High Quarter-Rack Enclosure Width
• Easy installation into confined spaces behind displays and above projectors
• Keeps devices out of sight when placed in public spaces

Atlona AT-HDVS-210HSpecs

General

Device Type	Video/audio/serial extender
Form Factor	In-wall mountable
Color	Black, white

Networking

Connectivity Technology	Wired
Data Link Protocol	RS-232, HDMI, HDBaseT
Max Resolution	4096 x 2160 @ 60 Hz
Max Transfer Distance	328 ft
Features	HDCP compliant, HDBaseT technology
Compliant Standards	HDCP 2.2

Expansion / Connectivity

Interfaces

2 x HDMI (input) - 19 pin HDMI Type A 1 x HDBaseT 1 x RS-232 - terminal block

Miscellaneous

Included Accessories	Faceplate
Compliant Standards	FCC

Dimensions & Weight

Weight

6.35 oz

Manufacturer Warranty

Service & Support

Limited warranty - parts and labor - 10 years

Environmental Parameters

Min Operating Temperature	32 °F
Max Operating Temperature	122 °F
Humidity Range Operating	20 - 90% (non-condensing)

Packaging Info

Package Weight	0.9 lb
Box Dimensions (LxWxH)	8.7 x 7.3 x 2.9"

Atlona AT-HDVS-210HSpecs

Video Resolution	4096 x 2160 @ 24/25/30/50/60 Hz 3840 x 2160 @ 24/25/30/50/60 Hz 2048 x 1080p 1080p @ 23.98/24/25/29.97/30/50/59.94/60 Hz 1080i @ 50/59.94/60Hz 720p @ 50/59.94/60 Hz 576p, 576i, 480p, 480i
VESA	2560 x 2048 / 1600 2048 x 1536 1920 x 1200 1680 x 1050 1600 x 1200 / 900 1440 x 900 1400 x 1050 1366 x 768 1360 x 768 1280 x 1024 / 800 / 768 1152 x 768 1024 x 768 800 x 600 640 x 480
Color Space	YCbCr, RGB
Chroma Subsampling	4:4:4, 4:2:2, 4:2:0
Color Depth	8-bit, 10-bit, 12-bit
Analog Audio Input	Formats: PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
Sample Rate	32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz
Bit Rate	Up to 24-bit
Distance	Cat5e/6 @ 4K: Up to 230' (70 m) Cat6a/7 @ 4K: Up to 328' (100 m) Cat5e/6 @ 1080p: Up to 328' (100 m) HDMI In/Out @ 4K: Up to 15' (5 m) HDMI In/Out @ 1080p: Up to 30' (10 m)
Signal	Bandwidth: 10.2 Gbps CEC: Pass-through HDCP: Supports up to 2.2
Certification	Unit: CE, FCC Power Supply: CE, FCC, RoHS, cULus, RCM, CCC
Temperature	Operating: 32 to 122°F (0 to 50°C) Storage: -4 to 140°F (-20 to 60°C) Humidity: 20 to 90%, Non-condensing
Power	Consumption: 15.2 W (When paired with TX) Supply Input: 100~240 VAC, 50/60 Hz Supply Output: 48 VDC /0.83 A
Dimensions	Without Rack Ears: 0.9 x 4.3 x 5.0" (25 x 109 x 127 mm) With Rack Ears:1.1 x 4.7 x 5.0" (27 x 119 x 127 mm)
Weight	0.9 lb (0.4 kg)

Packaging Info

Package Weight	2.285 lb
Box Dimensions (LxWxH)	11.15 x 7.4 x 3"
