Brightsign XD1035 Standard I/O Player

BrightSign XD1035 has been redesigned to deliver state-of-the-art digital signage experiences with enhanced 4K video and motion graphics performance. Hardware-accelerated 4K video rotation streamlines the presentation creation process by automatically rotating your content, eliminating development in portrait orientation.

The new architecture also delivers optimized motion graphics performance with fast load times, smooth animations, and responsive interactions of HTML, CSS, and JavaScript content at frame rates of 60 frames per second.

The efficient new hardware design offers Power over Ethernet (PoE+), a thinner design, and simplified Wi-Fi and SSD installation. BrightSign XD1035 is designed to exceed enterprise digital signage needs for applications that focus on 4K video in portrait mode and high-performance motion graphics now and in the future.

Brightsign XD1035 Features

• Power supply via Ethernet (PoE+)
• Slimmer profile
• Simplified Wi-Fi and SSD installation
• Real-time clock with 14 days of continuous operation
• Patented aluminum housing for heat dissipation
• Hardware-accelerated 4K rotation
• 4K60p video
• 4K images and graphics
• Power supply via Ethernet (PoE+)
• Slimmer profile
• Simplified Wi-Fi and SSD installation
• Real-time clock with 14 days of continuous operation
• Patented aluminum housing for heat dissipation
• Purpose-built for digital signage
• Provides extremely high reliability, safety and uptime
• Unlocks features for full signage potential
• Provides guaranteed updates for longevity
• Includes cloud connectivity for real-time access

Specifications

VIDEO & HTML ENGINE

• Native 4K@60p video
• Hardware accelerated 4K rotation
• 4K image and motion graphic support: Enhanced
• Dual video decoding
• HDR10 and HLG
• HTML5 performance level Enterprise+
• Single 1080p60 video decoding
• Dual 1080p60 video decoding
• Dual 4K60p video decoding: TBD

MEDIA FORMATS

• Video Codecs supported for 4K content: H.265/H.264
• Video Containers for 4K H.265 content: .ts, .mov, .mp4, .mkv
• Video Codecs for Full HD: H.265, H.264 (MPEG-4, Part 10), MPEG-2
• Video Containers for Full HD content: .ts, .mpg, .vob, .mov, .mp4, .m2ts
• Images: BMP, JPEG, PNG: 4K
• Audio: MP2, MP3, AAC, and WAV (AC3 is passed through)
• HTML5: Chromium-based, Open GL/ES: Enterprise+

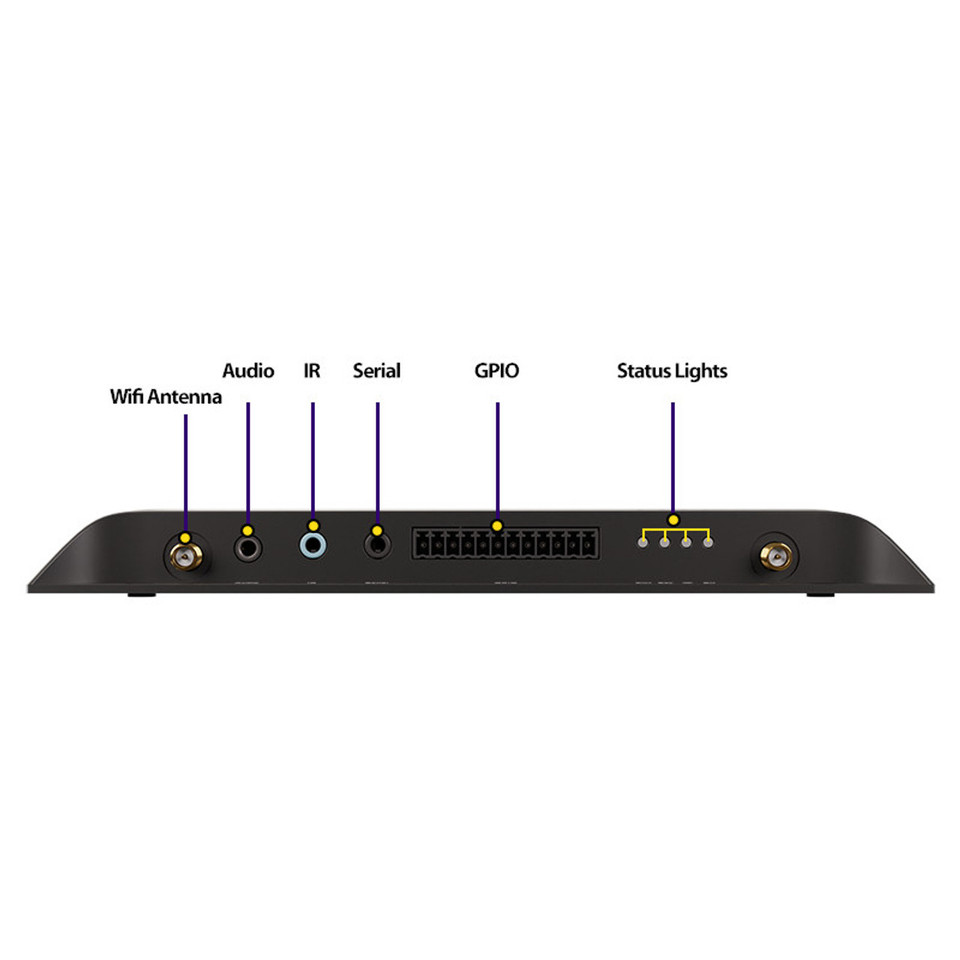

HARDWARE INTERFACES

• Locking Power Connector
• External micro SD Slot (SDHC and SDXC); SDHC storage via SDXC storage up to 2TB
• M.2 SSD PCIe Interface: Improved accessibility
• USB High Speed Host Port (also supports content updates) - X2: Type A&C
• 12-pin Phoenix GPIO port with 8 bi-directional GPIOs
• 3.5mm RS-232 Serial Port
• 3.5mm IR In/Out
• 3.5mm Audio Out (analog & digital)
• HDMITM Out (2.0a)
• Gigabit Ethernet
• Power over Ethernet (PoE+)
• M.2 (E) Keyed Wi-Fi/Bluetooth Connector: Improved accessibility
• Status LEDs
• Reset and Service Buttons
• Real Time Clock: 14-day life

ACCESSORIES

• USB Button Pads
• Dual Antenna Wireless/Bluetooth Module: WD-105
• MicroSD Class 10 Cards (various capacities)

MISCELLANEOUS

• Dimensions (WxHxD): 8.07x0.756x7.32” (205x19.2x185.9 mm)
• Weight: TBD
• Power 12V / 3A (30 Watts)
• Multi-Country Power & Regulatory Approvals
• Built-in Wall Mounting Brackets
• Warranty, parts and labor
