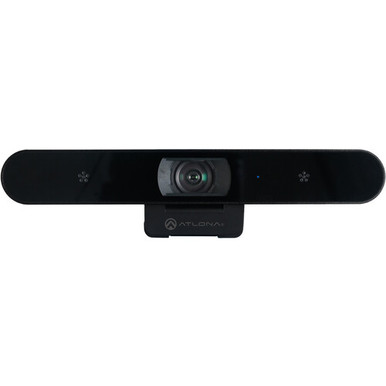

Name: Atlona AT-CAP-FC110 Captivate 4K ePTZ Auto-Framing Camera
SKU: AT-CAP-FC110
Price: $529.99 USD
Availability: InStock

Atlona Captivate 4K Overview

Add an enterprise-grade ePTZ camera to your video conferencing room with this Captivate 4K ePTZ Auto-Framing Camera from Atlona. Ideal for presentations, distance learning, or other applications in small- to medium-sized meeting spaces and huddle rooms, the camera integrates perfectly with select Atlona Omega conference room kits. It features a USB Type-C interface for video and audio transmission and can also interface directly with a PC.

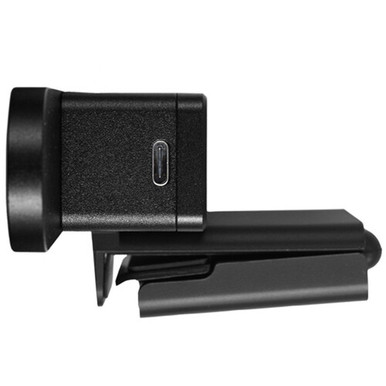

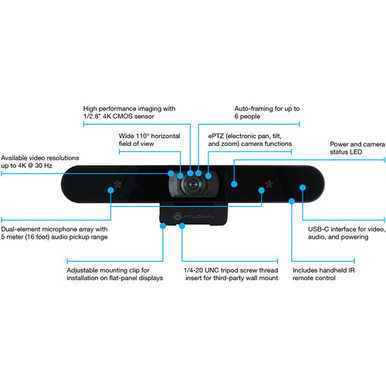

Pan, tilt, and zoom with auto-frame functionality allows users to reframe the camera with accurate detection of up to six participants and with a wide 110° wide horizontal field of view. Boasting video resolutions up to UHD 4K30, it integrates a two-microphone array with an audio pickup range of up to 16′. An adjustable clip facilitates mounting onto a flat-panel display and the camera may also be mounted on any standard 1/4″-20 threaded tripod screw.

Other Key Features

Designed for video conferencing and other applications with AV systems supporting USB interfacing and extension
Universal Windows and Mac compatibility with standard UVC 1.1 plug-and-play operation
Works with popular soft codec and UC clients, such as Microsoft Teams, Zoom, BlueJeans, Webex, GoogleMeet, GoToMeeting, and Amazon Chime
USB camera control available from compatible apps such as Zoom Rooms
Fast, responsive ePTZ (electronic pan, tilt, and zoom) camera functions
Two-microphone array with 16′ audio pickup range
High performance imaging, fine detail, and color rendering with 1/2.8” 4K CMOS sensor
Fast and accurate auto focus and auto white balance mode
Auto exposure mode with backlight compensation for low-lighting conditions
Picture controls available for brightness, color, saturation, contrast, and sharpness

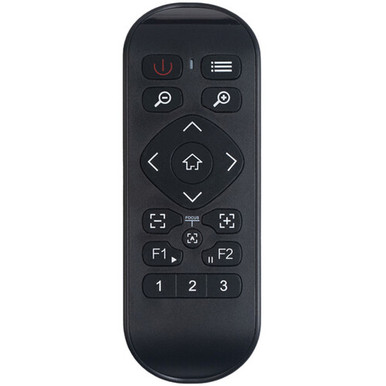

IR remote control included
Three camera presets available and accessible from IR remote
On-screen display for setting up and adjusting camera settings
Supports wall installation below a display with third-party mounting hardware
Image flip and mirroring supported

Atlona Captivate 4KSpecs

Key Specs

Resolution and Frame Rate	UHD 4K at up to 30 fps
Image Sensor	1/2.8″-Type CMOS
Sensor Resolution	8.42 MP
System Connection	USB-A 3.0 / 3.1/3.2 Gen 1

Sensor

Resolution and Frame Rate	UHD 4K at up to 30 fps
Number of Lenses	1
Image Sensor	1/2.8″-Type CMOS
Sensor Resolution	8.42 MP
Aperture	f/2.2
Field of View	Diagonal: 120° Horizontal: 109.7° Vertical: 87°
Zoom	4x (Digital)

General

System Connection	USB-A 3.0 / 3.1/3.2 Gen 1
Focus Type	Fixed
Bluetooth	No
Power Source	Bus Powered
Low-Light Correction	Yes
OS Compatibility	macOS / Windows
OS Compatibility	macOS Windows
Supported Formats/Protocols	H.264, H.265, MJPEG, YUY2

Microphone

Microphone

Physical

Privacy Shutter	No
Security	No
Attachment Method	Clip, 1/4″-20 Tripod
Built-In Light	No
Certifications	CE, FCC
Operating Conditions	32 to 104°F / 0 to 40°C at 10 to 90% Humidity
Storage Conditions	-4 to 140°F / -20 to 60°C

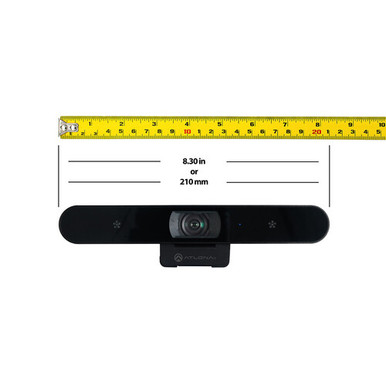

Dimensions (W x H x D)	8.3 x 2.9 x 1.9″ / 210.0 x 74.0 x 48.0 mm
Weight	10.6 oz / 300 g

Packaging Info

Package Weight	1.215 lb
Box Dimensions (LxWxH)	12.5 x 5.2 x 3.2″
