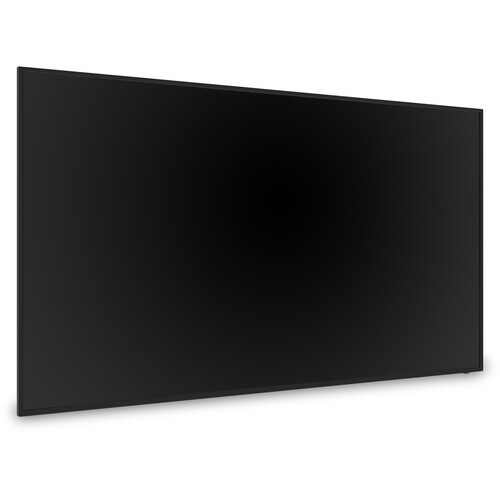

ViewSonic CDE7512 75″ 4K Wireless Presentation Display

ViewSonic CDE12 Overview

The ViewSonic CDE7512 75″ 4K Wireless Presentation Display transforms meeting rooms into a dynamic communications hub. Featuring a 3840 x 2160 resolution, this display also boasts 330 nits of brightness, 178° viewing angles, dual 10W speakers, and wireless screen sharing. Built-in ViewBoard Cast screen sharing and myViewBoard Display software, along with the optional ViewSonic vCastSender app, enable both on-site and online users to participate in conferences and simultaneously share content.

Equipped with a 1.5 GHz quad-core embedded SoC processor, 2GB RAM, and 16GB of internal storage, the CDE7512 can play multimedia from internal storage or a USB flash drive 16 hours a day, seven days a week. Remote configuration and content management system support make the ViewSonic CDE7512 suitable for a wide array of diverse signage applications.

4K UHD Resolution

With four-times the resolution of Full HD, this 4K UHD 3840 x 2160 display delivers a detailed viewing experience with immersive images that are vibrant, clear, and as large as life.

Powerful Embedded SoC Platform

The ViewSonic Embedded Signage Platform (VESP) features a Linux-based Kernel OS and provides an all-in-one solution that simplifies installation and maintenance. With VESP, there is no need for any external devices to communicate with the server or play digital media. Enjoy simplified development, reinforced capability with multiple web formats, and secured protection.

ViewBoard Cast Sharing Software

ViewBoard Cast enables content to be streamed from mobile devices onto the display via wireless or cable networks. Multiple users can simultaneously annotate content including documents, cloud files, multimedia, and more on their devices in real time, and then stream and share that content onto the ViewSonic large format display. One-to-one, one-to-many, and 4-in-1 multi-screen options are also available.

Remote Content Sharing from Anywhere

The myViewBoard Display app is cloud-based and client-free and allows you to share your screen from anywhere in the world from virtually any device, without having to worry about group policies or installing additional software.

All-in-One Solution

Perfect for conference rooms, huddle spaces, and other collaborative environments, this all-in-one display delivers performance businesses need to get up and running with their wireless presentations.

Streamlined Device Management

The myViewBoard Manager app is an easy-to-use, web-based client that allows you to securely set up, manage, and maintain all of your display devices from a centralized dashboard. Cloud-based access allows IT managers to remotely access, monitor, and manage devices from anywhere.

AV Control System Certified

The AV control system is at the heart of all integrated AV systems and impacts the overall effectiveness of the entire system. Proper programming is essential for completing profitable projects, gaining user confidence and client satisfaction, and promoting relationships. These wireless presentation displays are Extron certified, AMX certified, and Crestron compatible.

Reliable 16/7 Operation

Featuring a long lifespan, this professional-grade commercial display is designed for reliable use 16 hours a day, 7 days a week. Optimized for a wide range of commercial applications and environments, this display delivers peace of mind with its robust and durable design.

Integrated Content Management System

Take advantage of a cloud-based 30-day trial service subscription of ViewSonic’s content management software, powered by Revel Digital platform. This allows you to instantly transfer multimedia from any HTML5 browser-based device to the display no matter where you are. This service works with the optional ViewSonic Signage Manager CMS for local content push with a perpetual license.

ViewSonic CDE12 Specs

Display Size	75″
Native Resolution	3840 x 2160
Maximum Brightness	330 nits / cd/m2
Inputs	2x HDMI 2.0 1x RCA (Analog Audio)
Outputs	1x TOSLINK Optical (Digital Audio) 1x 1/8″ / 3.5 mm (Analog Audio)
Wireless	Wi-Fi *Via Included Adapter
USB I/O	1x USB-A 2.0
Ethernet I/O	1x RJ45 (Unspecified Ethernet)
Other I/O	1x DE-9/DB-9 Serial (RS-232C) Input
Built-In Speakers	Yes, 2x 10 W
Media Card Reader	No

Display

Display Size	75″
Panel Type	LCD
Aspect Ratio	16:9
Display Orientation	Landscape
Native Resolution	3840 x 2160
Maximum Brightness	330 nits / cd/m2
Lighting System	Direct LED
HDR Support	No
Contrast Ratio	1200:1
Dynamic Contrast Ratio	5000:1
Response Time	8 ms (GtG)
Refresh Rate	60 Hz
Color Support	1.07 Billion Colors (8-Bit+FRC)
Viewing Angle (H x V)	178 x 178°
Pixels Per Inch (ppi)	59 ppi
Finish	Anti-Glare / Matte

Surface

Hardness Rating	3H
Haze Level	1%

Video

TV Tuner

No

Connectivity

Inputs	2x HDMI 2.0 1x RCA (Analog Audio)
Outputs	1x TOSLINK Optical (Digital Audio) 1x 1/8″ / 3.5 mm (Analog Audio)
Wireless	Wi-Fi *Via Included Adapter
NFC	No
USB I/O	1x USB-A 2.0
Ethernet I/O	1x RJ45 (Unspecified Ethernet)
Other I/O	1x DE-9/DB-9 Serial (RS-232C) Input
Ambient Light Sensor	No

Speaker

Built-In Speakers

Yes, 2x 10 W

Hardware

Smart TV	Android 9.0
Processor	MediaTek 9602
CPU	Quad-Core: Up to 1.5 GHz Cortex A53
Storage	16 GB eMMC
RAM	2 GB DDR4
Mobile App Compatible	No
Media Card Reader	No
Built-In Mic	No

Electrical

Power Consumption	Maximum: 300.0 W Typical: 240.0 W Standby: < 0.5 W
Input Power	100 to 240 VAC, 50 / 60 Hz
Power Adapter Type	Internal

General

Operating Conditions	32 to 104°F / 0 to 40°C at 20 to 80% Humidity
Certifications	cULus, FCC, ENERGY STAR, RoHS
Mounting-Hole Pattern	600 x 400 mm
Lighting Lifespan	30000 Hours
Lock Slot	No
Duty Cycle	16 Hours / 7 Days
Dimensions	66.3 x 38 x 2.8″ / 1683.8 x 965.3 x 71.3 mm
