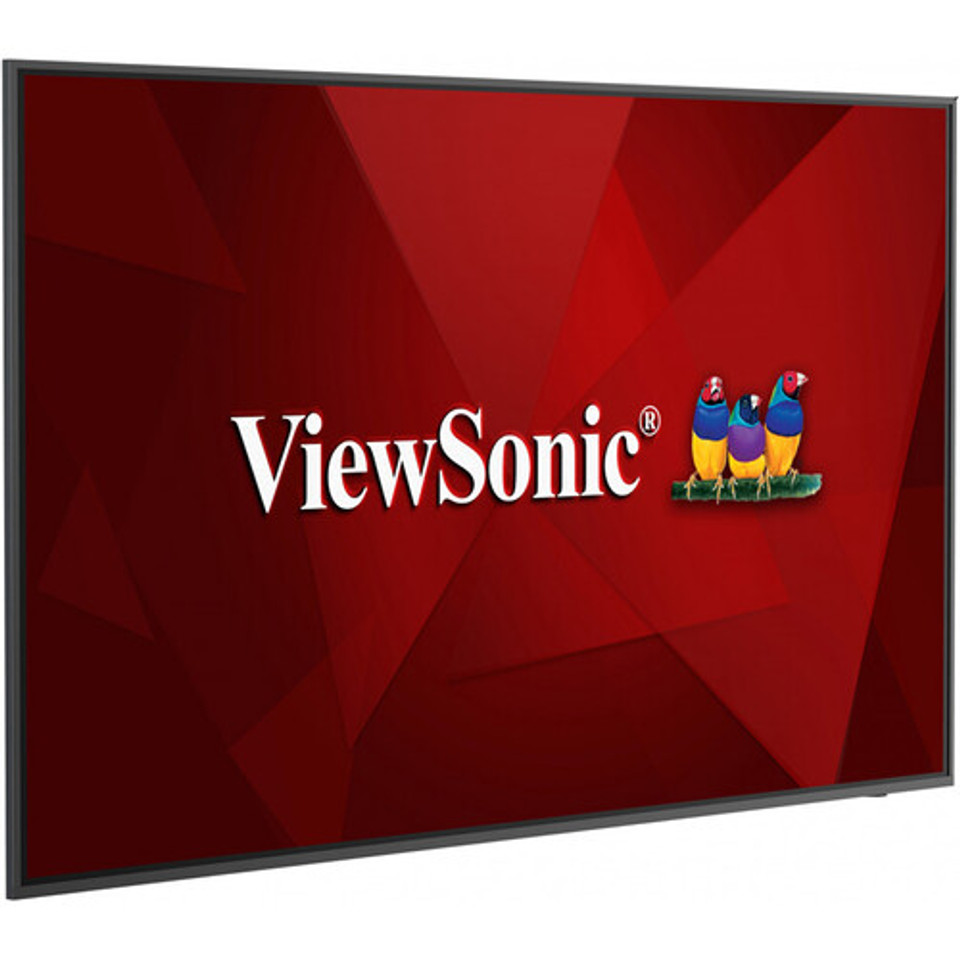

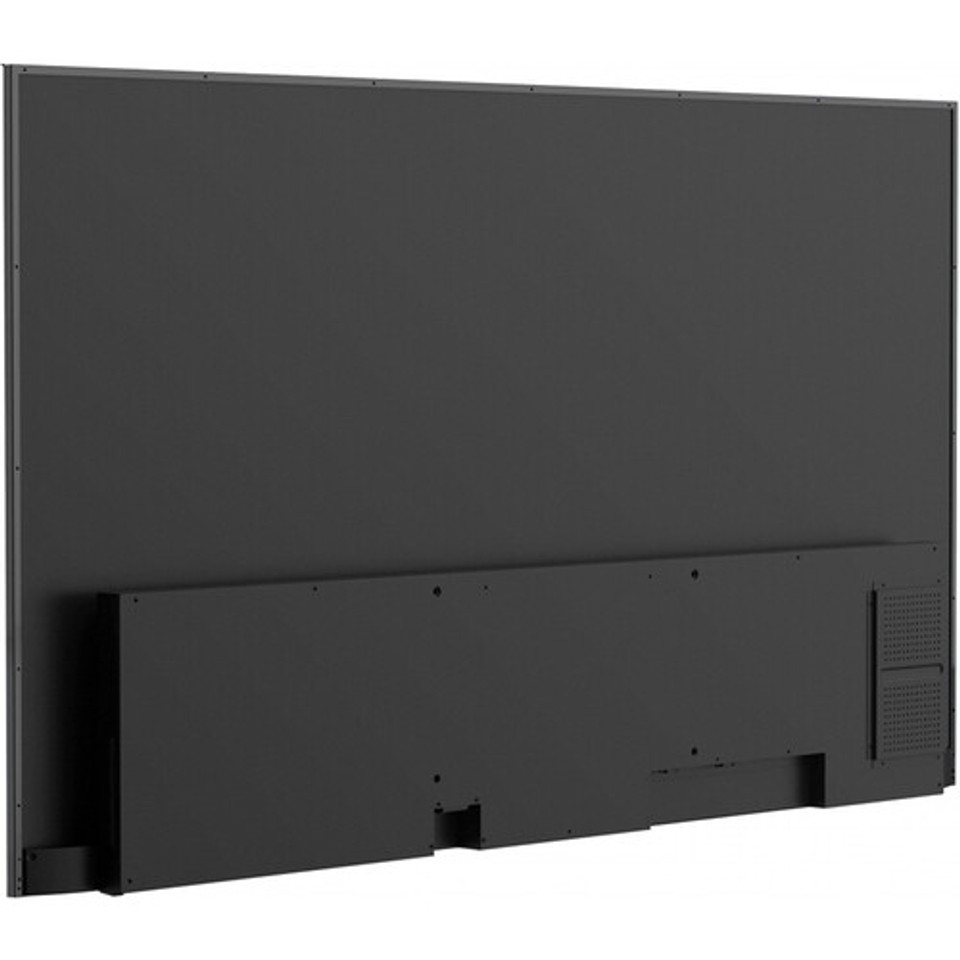

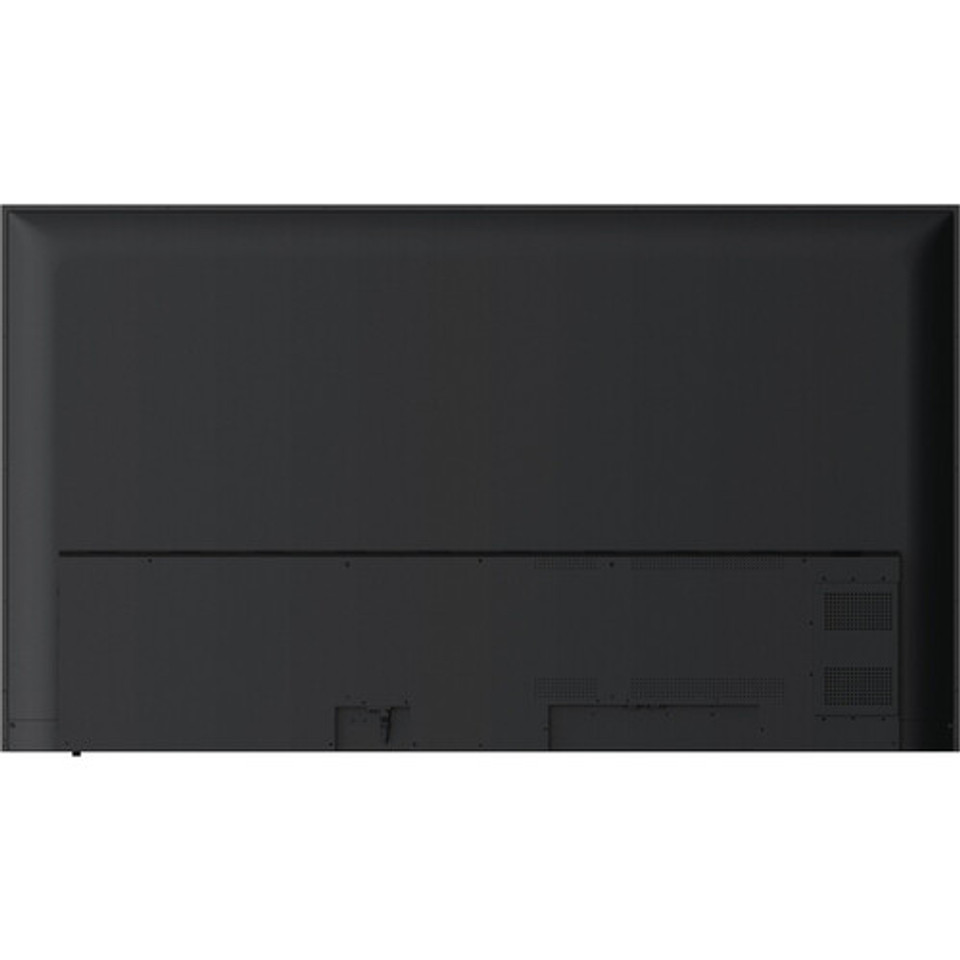

ViewSonic CDE7530 Series 75" UHD 4K Commercial Monitor

ViewSonic CDE30 Overview

The ViewSonic CDE30 Series 75″ 4K Commercial Monitor is engineered with corporate and higher-education campuses in mind. Offering 24/7 continuous playback, portrait and landscape orientation, USB and HDMI inputs, and a quad-core SoC media player, the CDE7530 is designed for ease of use. Remote management via the intuitive myViewBoard Manager simplifies changing content, broadcasting, and software updates. Complete with daisy-chain capability and compatibility with Crestron, Extron, and AMX, the CDE7530 can be easily deployed in multiple or single-display applications.

High Brightness and UHD 4K

Combining UHD 4K resolution, 450 nits brightness, 24/7 playback, and landscape or portrait orientation, the CDE7530 is suitable for just about any indoor presentation or signage application.

Quad-Core System on Chip

The CDE30’s built-in Quad-Core SoC with embedded Android 11 and capable memory can execute several tasks at once while providing smooth content playback without requiring an external media player. This all-in-one digital signage solution reduces costs and your carbon footprint, while delivering top-notch performance without needing a PC or any additional cables.

Add Wi-Fi with ViewSonic VB-WIFI-001

The CDE7530 can be hardwired to the network via the RJ45 LAN connection. To go fully wireless, add the ViewSonic VB-WIFI-001 Wi-Fi module (sold separately).

Wireless Content Sharing

The CDE30 Series comes complete with cable-free sharing solutions. ViewSonic’s myViewBoard Display delivers instant browser-based castings for screen mirroring with no cable or download necessary, making it perfect for quick presentations and guest users. For more advanced features, ViewBoard Cast offers split, extended, and grouped screen capabilities from any device. It also supports AirPlay and Chromecast so users can effortlessly share their screens.

USB-C Connectivity

When connecting an external laptop or tablet, the USB-C connectivity of the CDE30 Series enables ease of operation and upgraded efficiency. This all-in-one solution brings together single-cable, speedy data transfers and multimedia broadcasting while powering your connected device and providing it with fast and stable internet access.

Environmentally Friendly

The CDE30 Series has been awarded EPEAT certification in the US, which is currently the highest environmental rating achieved by any large-format displays, for meeting the required criteria on energy consumption, supply chain carbon emissions, and end-of-life management. Committed to sustainability, ViewSonic has been actively implementing advanced energy-efficient and eco-friendly practices across all of its product lines. Additionally, at the end of a product’s life, ViewSonic can provide guidance on proper disposal or recycling, including the ViewSonic Mail Back Program across the U.S. and Canada.

Compatible with Crestron, AMX, and Extron

Compatible with Creston Connected V1, AMX, and Extron systems, the CDE30 Series allows for an always-on mode with complete remote control of all lightning, audio, displays, and other AV control systems both on and off-site.

ViewSonic myViewBoard Manager

ViewSonic myViewBoard Manager is a web-based software for IT teams and administrators that centralizes message broadcasting. With just one device, you can easily synchronize information on multiple displays, aligning corporate communication on all levels. ViewSonic myViewBoard Manager offers better operational efficiency thanks to its browser-based centralized management system. IT admins can remotely track devices, apps, and input sources as well as measure and optimize tool usage with clear metrics and insights reports. The Remote Desktop feature streamlines maintenance, allowing for instant support without requiring on-site IT services.

ViewSonic CDE30 Specs

Display Size	75″
Native Resolution	3840 x 2160
Maximum Brightness	450 nits / cd/m2 (Sustained)
Inputs	3x HDMI 2.1
Outputs	1x HDMI 2.0
Wireless	Yes
USB I/O	1x USB-A 2.0 (Audio/Charging/Photo/Video/Control) 1x USB-A 3.0 / 3.1/3.2 Gen 1 (Audio/Charging/Photo/Video/Control) 1x USB-C (Unspecified Version) (Audio/Charging/Video/Control)
Ethernet I/O	1x RJ45 Gigabit Ethernet
Built-In Speakers	Yes, 2x 10 W
Media Card Reader	No

Display

Display Size	75″
Panel Type	TFT LCD
Aspect Ratio	16:9
Display Orientation	Landscape, Portrait
Native Resolution	3840 x 2160
Maximum Brightness	450 nits / cd/m2 (Sustained)
Contrast Ratio	1200:1
Dynamic Contrast Ratio	5000:1
Response Time	8 ms
Refresh Rate	60 Hz
Color Support	1.07 Billion Colors
Screen Area	65.0 x 36.5″ / 165 x 92.8 cm
Pixels Per Inch (ppi)	59 ppi
Finish	Anti-Glare / Matte

Surface

Hardness Rating	3H
Haze Level	25%

Video

TV Tuner

No

Connectivity

Inputs	3x HDMI 2.1
Outputs	1x HDMI 2.0
HDCP Support	Yes
Wireless	Yes
Connection Protocols	AirPlay
NFC	No
USB I/O	1x USB-A 2.0 (Audio/Charging/Photo/Video/Control) 1x USB-A 3.0 / 3.1/3.2 Gen 1 (Audio/Charging/Photo/Video/Control) 1x USB-C (Unspecified Version) (Audio/Charging/Video/Control)
Ethernet I/O	1x RJ45 Gigabit Ethernet
Number of OPS/Expansion Slots	1
Ambient Light Sensor	No
Multi-Input Support (PIP/PBP)	Picture-in-Picture (PIP), Picture-by-Picture (PBP)

Speaker

Built-In Speakers	Yes, 2x 10 W
Speaker Configuration	2-Channel

Hardware

Storage	32 GB
RAM	4 GB
OS Compatibility	Android/iOS
Media Card Reader	No
Built-In Mic	No

Supported File Formats

Supported Video File Types	3GP, 3GPP, ASF, AVI, DivX, FLV, H.265/HEVC, MKV, MOV, MP4, MPEG, MPEG4, MPG, MTS, RMVB, TP, TRP, TS, VOB, VP8, VP9, WEBM, WMV
Supported Audio File Types	AAC, AC-4, AC3, FLAC, HE-AAC, LPCM, MP3, OGG, PCM-WAV, RM, WAV, WMA, WMA Pro
Supported Photo File Types	BMP, JPEG, PNG

Electrical

Power Consumption	Typical: 235.0 W Standby: < 0.5 W
Input Power	100 to 240 VAC, 50 / 60 Hz
Power Adapter Type	Internal

General

Operating Conditions	32 to 72°F / 0 to 40°C at 10 to 90% Humidity
Storage Conditions	-4 to 140°F / -20 to 60°C at 10 to 90% Humidity
Certifications	cTUVus, FCC, ICES, ENERGY STAR 8.0, EPEAT, Mexico Energy, CE, CB, EAC, RCM, RoHS, ErP, REACH, WEEE
Mounting-Hole Pattern	800 x 600 mm
Lighting Lifespan	50000 Hours
Environmental Resistance	No
Lock Slot	No
Bezel Thickness	14.7 mm (Bottom/Right/Top/Left)
Duty Cycle	24 Hours / 7 Days
Dimensions	66.4 x 38 x 3.2″ / 168.6 x 96.4 x 8.2 cm
Weight	76.39 lb / 34.65 kg

Packaging Info

Package Weight	98.5 lb
Box Dimensions (LxWxH)	72 x 43 x 9″
