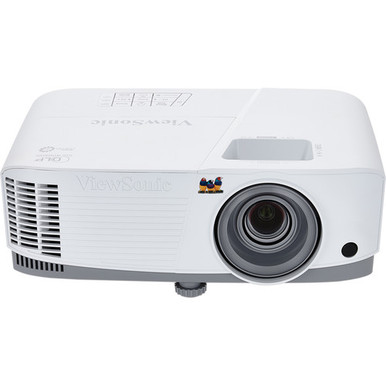

The ViewSonic PA503W offers impressive visual performance to improve presentations, ideal for use in small business meeting rooms and classrooms. Packed with 3800 ANSI Lumens of brightness and a 22,000:1 contrast ratio, this projector is guaranteed to reproduce the finest of details regardless of the amount of ambient lighting present. ViewSonic exclusive SuperColor™ technology offers a wider range of displayable color for projected images with true-to-life color accuracy. Users can choose from 5 color modes, including standard, brightest, presentation, photo, and movie mode, to select the mode that best suits their needs based on their usage scenario. In addition, the energy-saving SuperEco mode of PA503W reduces power consumption and extends the lamp life by up to 15,000 hours.

• 22,000:1 contrast ratio
• SuperColor™ technology
• 5 colour modes
• Auto power off
• Vertical keystone

SPECIFICATION

Native Resolution: 1280×800
DC type: DC3
Brightness: 3800 ANSI lumens
Contrast Ratio with SuperEco mode: 22000:1
Display Color: 1.07 Billion Colors
Light Source: Lamp
Light source life (Nor/SuperEco): 6000/15000
Lamp Watt: 200W
Lens: F=2.56-2.68, f=22-24.1 mm
Projection Offset: 100%+/-5%
Throw Ratio: 1.55~1.70
Image size: 30″ – 300″
Throw Distance: 1m-10.98m(100″ @3.34m)
Keystone: ±40° (Vertical)
Optical Zoom: 1.1x
Audible Noise (Eco): 27dB
Resolution Support: VGA(640 x 480) to FullHD(1920 x 1080)
HDTV Compatibility: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
Video Compatibility: NTSC, PAL, SECAM
Horizontal Frequency: 15K~102KHz
Vertical Scan Rate: 23~120Hz

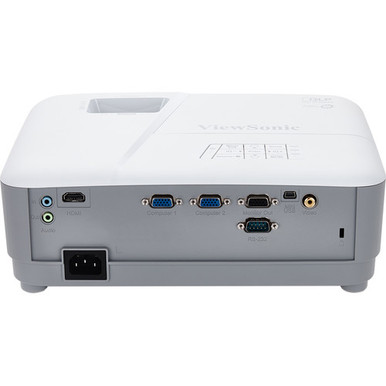

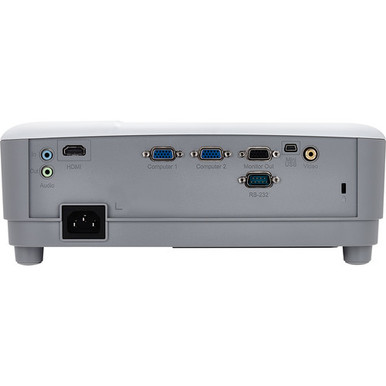

INPUT
Computer in (share with component): 2
Composite: 1
Audio-in (3.5mm): 1
HDMI: 1 (Back)

OUTPUT
Monitor out: 1
Audio out (3.5mm): 1
Speaker: 2W

CONTROL
RS232: 1
USB type mini B (Services): 1

OTHERS
Power Supply Voltage: 100-240V+/- 10%, 50/60Hz AC
Power Consumption: Normal: 260W
Standby: <0.5W
Operating Temperature: 0~40℃
Carton: Brown
Net Weight: 2.2kg

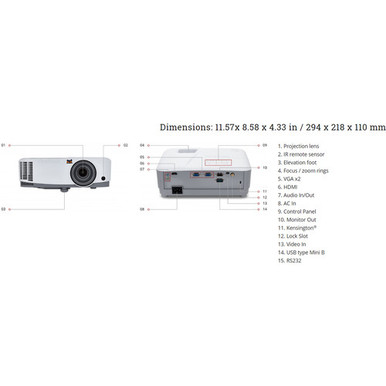

Dimensions (WxDxH) w/adjustment foot: 294x218x110mm
Language: English, French, Spanish, Thai, Korean, German, Italian, Russian, Swedish, Dutch, Polish, Czech, T-Chinese, S-Chinese, Japanese, Turkish, Portuguese, Finnish, Indonesian, India, Arabic, Vietnamese

STANDARD ACCESSORY
Power Cord: 1
VGA cable: 1
Remote Control: 1
QSG & CD: QSG: 1 / CD: NA
OPTIONAL ACCESSORY
Air Filter: RSPL
