Projection System High-aperture Epson 3-chip 3LCD Native Resolution : WXGA (1280 x 800) Color Brightness : 11,000 lumens White Brightness : 11,000 lumens, : High-aperture Epson 3-chip 3LCD
ECO mode Up to 4000 hours, 35 dB, 821 W
Normal mode Up to 2000 hours, Up to 1000 hours, 40 dB, 1120 W
Normal 380 W x 2 UHE, 32 to 122 F (0 to 50 C)
Portrait 304 W x 2 UHE
Brightness Uniformity 90% Pixel Arrangement: Cross stripe Throw Ratio Range: 1.74 2.82 (standard lens) Size – projected distance: 60″ 500″ Keystone Correction:
Vertical -30 degrees to +30 degrees, 60%
Horizontal -30 degrees to +30 degrees, 18%
Contrast Ratio Normal, Dynamic Mode: Up to 15,000:1 Color Processing: 10 bit Color Reproduction: Up to 1.07 billion colors General: Temperature:
Above 4900 feet 32 to 104 F (0 to 40 C)
Analog NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM
HDMI 480i / 576i / 480p / 576p / 720p /1080i / 1080p
DVI-D 480i / 576i / 480p / 576p / 720p / 1080i / 1080p
Wired Integrated 100Mbps
Wireless Optional 802.11b/g/n
Wireless Security WPA-PSK (TKIP/AES) / WPA2-PSK(TKIP/AES)
Computer D-sub 15 pin x 2
Video BNC x 5
Composite Video BNC x 1
Wired Network RJ-45 x 1
Wireless Network Optional
Serial Rs-232c x 1
Monitor-Out D-sub 15 pin x 1
USB Type-A For wireless only
USB Type-B For service only
Speaker None Fan Noise:
Right / Left 60 degrees
Upper / Lower -45 to +15 degrees, -40 to +15 degrees
Power Supply Voltage 100 240 V 10%, 50/60 Hz AC Power Consumption:
Communication on 2.7 W standby
Communication off 0.26 W standby
The 11,000-lumen, large-venue installation projector with widescreen performance
Native Resolution WXGA (1280 x 800)
Color Brightness : 11,000 lumens
White Brightness : 11,000 lumens Bright and Colorful
Features 11000 lumens of color brightness (color light output) and 11000 lumens of white brightness (white light output). WXGA Resolution 1280 x 800 HD widescreen resolution Edge Blending
Use multiple projectors to overlap images, and there are no bright spots where the overlap occurs providing dynamic, seamless projection. Portrait Mode
Allows you to turn the projector 90 degrees great for digital signage, fashion shows, art galleries and museums HDBaseT
Combines HDMI, ethernet and RS-232 into one cable
Includes all-digital, HDMI audio and video connection, for HD quality with just one cable
HDMI Connectivity High Color Brightness and reliable performance 3LCD, 3-chip technology*
One measurement of brightness is not enough look for both high color brightness and high white brightness.
The PowerLite Pro Z11000WNL has Color Brightness: 11,000 lumens
HDMI Connectivity White Brightness 11,000 lumens
HDMI Connectivity Widescreen, high-definition performance WXGA (1280 x 800) resolution supports native widescreen performance for presentations, videos, digital signage and more
Seven optional lenses with lens shift including short-, wide-, rear- and long-throw lenses designed with a change-out lever for easy installation (lens not included)
HDMI Connectivity Flexible installation for immersive experiences in any setting built-in Curved Edge Blending, Portrait Mode projection, and 360-degree installation
Get twice the brightness and power optional stackable frame makes it easy to install two projectors for unbelievable brightness, plus 3D support
HDMI Connectivity Versatile connectivity supports the latest connectivity options, including HDBaseT, HDMI TM and DVI
HDMI Connectivity Dual-lamp design with lamp select/relay function get both power savings and projector redundancy; includes an innovative liquid cooling system for added reliability
HDMI Connectivity Split Screen feature project two images (video or still) side-by-side from two different sources simultaneously
HDMI Connectivity Normal mode Up to 2000 hours Portrait: Normal mode: Up to 1000 hours Lamp Life: Normal: 380 W x 2 UHE, 40 dB, 1120 W
HDMI Connectivity Portrait 304 W x 2 UHE
HDMI Connectivity Brightness Uniformity 90% Pixel Arrangement: Cross stripe Throw Ratio Range: 1.74 2.82 (standard lens) Size – projected distance: 60″ 500″ Keystone Correction: Vertical: -30 degrees to +30 degrees
HDMI Connectivity Horizontal -30 degrees to +30 degrees, 18% Video: Video Processing: Analog: NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM
HDMI Connectivity Contrast Ratio Normal, Dynamic Mode: Up to 15,000:1 Color Processing: 10 bit Color Reproduction: Up to 1.07 billion colors General: Temperature: Normal: 32 to 122 F (0 to 50 C)
HDMI Connectivity Security Kensington - style lock provision, anchor (metal) bar for security lock or cable, handles attached to body for cable wrap
HDMI Connectivity Projection Lens Type: Powered zoom / focus F-number: 1.65 2.51 (standard lens), lens not included Focal Length: 36 mm 57.35 mm (standard lens) Zoom Ratio: Optical zoom 1.0 1.61 (standard lens) Lens Shift: Powered
HDMI Connectivity Vertical 60%
HDMI Connectivity HDMI 480i / 576i / 480p / 576p / 720p /1080i / 1080p
HDMI Connectivity DVI-D 480i / 576i / 480p / 576p / 720p / 1080i / 1080p
HDMI Connectivity Video Standards 3D Y/C separation, 3D noise reduction, mosquito noise reduction
HDMI Connectivity DCDi Directional Correlational DeinterlacingMotion-compensated Interlace-Progressive conversion (2:2, 3:2 film detection) Super Resolution: FineFrame Interpolation 8:8 Pull-down Processing Closed Captioning Connectivity Projector: Standard Connectivity: Wired: Integrated 100Mbps
HDMI Connectivity Wireless Optional 802.11b/g/n, Security: WPA-PSK (TKIP/AES) / WPA2-PSK(TKIP/AES), Network: Optional
Remote Control and Management Epson EasyMP Monitor Network projection Multi-projection AMX Device Discovery
HDMI Connectivity Crestron Integrated Partner and Crestron RoomView Extron IP Link and XTP PJLink

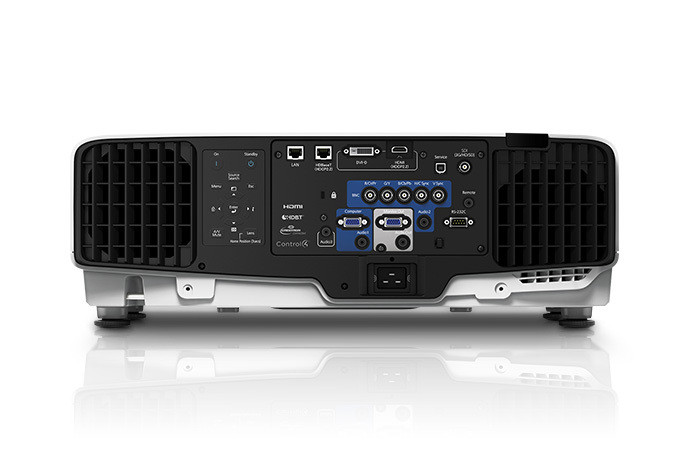

HDMI Connectivity Projector Details Interfaces: HDMI x 1 DVI-D x 1 HDBase-T x 1
HDMI Connectivity Computer D-sub 15 pin x 2
HDMI Connectivity Video BNC x 5
HDMI Connectivity Composite Video BNC x 1
HDMI Connectivity Wired Network RJ-45 x 1
HDMI Connectivity Serial Rs-232c x 1 Hardwired Remote Jack x 1
HDMI Connectivity Monitor-Out D-sub 15 pin x 1
HDMI Connectivity USB Type-A For wireless only
HDMI Connectivity USB Type-B For service only
HDMI Connectivity Speaker None Fan Noise: ECO mode: 35 dB
HDMI Connectivity Audio Output None
HDMI Connectivity Projector Dimensions Weight – with standard lens: 58 lb Excluding feet – with standard lens: 21.02″ x 29.17″ x 10.04″ (W x D x H) Including feet – with standard lens: 21.02″ x 29.17″ x 7.76″ (W x D x H) Remote Control: Features: Brightness, contrast, tint, saturation, sharpness, input signal, sync, tracking, position, zoom, focus, lens shift, shutter, ID, source search, split screen Operating Distance: 98 ft Operating Angle: Front
HDMI Connectivity Right / Left 60 degrees
HDMI Connectivity Upper / Lower -45 to +15 degrees Rear, -40 to +15 degrees Power: Power Supply Voltage: 100 240 V 10%, 50/60 Hz AC Power Consumption: ECO mode: 821 W
HDMI Connectivity Communication on 2.7 W standby
HDMI Connectivity Communication off 0.26 W standby
SKU PL-Z11000WNL
Brand Epson
MPN V11H608920
GTIN 00103439146506, 010343914650
UPC 010343914650
