Display System 1-Chip 0.65″ DLP
Native Chip Resolution 1280 x 800 (WXGA)
Supported Resolutions Minimum: XGA Maximum: WUXGA
Maximum Brightness 7200 Lumens
Uniformity 90%
Aspect Ratio 16:10
Dynamic Contrast Ratio 10,000:1
Color Wheel 4-Segment (Y, B, G, R)
Keystone Correction Vertical: 40 Horizontal: 15
Supported HDR Input Formats None
Multi-Input Support (PIP/PBP) None
Ceiling Mountable Yes
Rear Screen Projection Yes
Built-In Speaker None
Projection Tilt Option No
Inputs/Outputs 1 x HDBaseT (RJ45) Audio, Control, Data, LAN, Remote, Service, Video Input/Output 1 x 3G-SDI (BNC) Video Input 1 x HDMI (HDMI Type-A) Audio, Video Input 1 x DVI-D Video Input 1 x 5BNC Video Input 1 x VGA (DE-15/DB-15) Video Input 1 x 1/8″ / 3.5 mm Mini Remote Input 1 x 1/8″ / 3.5 mm Mini Remote Output 1 x DE-9/DB-9 Control Input 1 x DE-9/DB-9 Control Output 1 x DE-9/DB-9 Remote Input
Memory Card Slot None
Wireless LAN / Wi-Fi None
Light Source Laser Phosphor
Expected Lamp Life Medium Brightness: 20,000 Hours Low Brightness: 24,000 Hours
Fan Noise Medium Brightness: 36 dB
Security Cable Lock Slot Security Bar
Supported Languages English French German Italian Japanese Korean Portuguese Russian Spanish Traditional Chinese
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Consumption Full Brightness: 825 W Medium Brightness: 593 W Low Brightness: 508 W Standby Mode (Lamp Off): 3 W Standby Mode (Lamp Off): 0.3 W
Dimensions (W x H x D) 19.6 x 7.9 x 21.2″ / 498.0 x 200.0 x 538.0 mm Without Lens

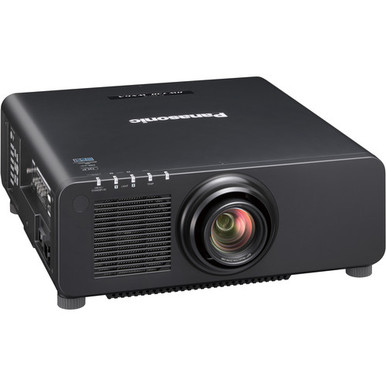

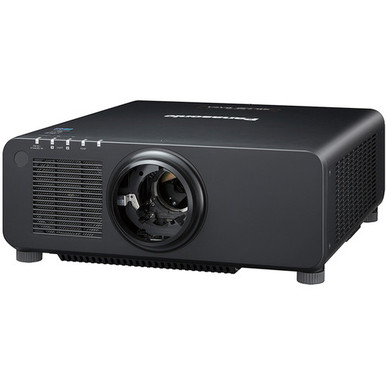

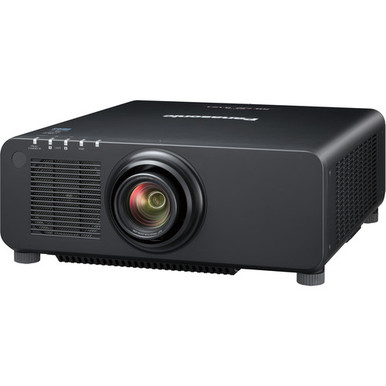

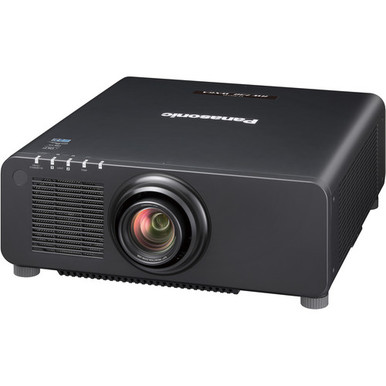

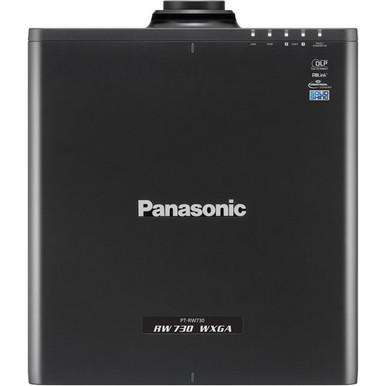

Panasonic RW730LBU Overview Brightness of 7200 Lumens WXGA (1280 x 800) Resolution
3G-SDI, DVI-D, VGA, HDMI Inputs 360 Rotation-Capable
Compatible with Popular Control Systems HDBaseT, Ethernet, RS-232 Controllable
Full-Spectrum Color with up to 7200-Lumen Brightness
Offers DLP technology delivering high-resolution detail and dual laser modules outputting up to 7200 lumens of brightness, Quartet Color Harmonizer to reduce energy loss from the light source, and a robust heat-resistant phosphor wheel. The SOLID SHINE laser system produces scintillating images with unfailing reliability.
The Quartet Color Harmonizer wheel mechanism captures a wider color space than comparable projectors, which allows white to be reproduced realistically on screen.
White Balance and Color Reproduction Laser Module Maintains Picture Quality Over Time
White Balance and Color Reproduction Thanks to the dual solid-state laser modules, there are no lamps to replace, and image color/brightness degrades very gradually in a consistent, linear fashion. As well as reducing maintenance hassle, out-of-the-box picture quality is preserved for a longer period of time.
Stable 24/7 Operation with Light Source Failover Protection
White Balance and Color Reproduction The Dual Drive Laser Optical Engine groups laser diodes into two discrete modules. A fail-safe redundancy circuit works to minimize brightness and color uniformity loss should a laser diode fail, making the projector suitable for mission-critical applications. Furthermore, brightness decreases more gradually and consistently than lamp-based projectors over a 20,000-hour maintenance-free projection period.
The PT-RW730LBU Series directly modulates laser power output to achieve high contrast with low power consumption. Digitally controlled frame-by-frame scene-linking modulation ensures highly precise output adjustment, while accurate 10,000:1 contrast is delivered even when bright and dark scenes frequently interchange., Series can be easily operated remotely over a LAN network via a computer’s web browser. Projectors can be configured to alert the operator via email if an error has occurred. Quick Start, Quick Off
Light Control for High Contrast System Daylight View for Sharp, Vivid Images in Bright Environments
Light Control for High Contrast The System Daylight View prevents images from washing out in well-lit environments, enhancing brightness perception in multi-projector mapping applications by adjusting sharpness and gamma curves and correcting colors. The result is better visual impact, even in challenging conditions.
Light Control for High Contrast The circuit optimizes the sharpness of each image based on the super high, high, medium, and low frequency components of the extracted image information. The resulting images are expressed with natural, convincing realism.
Dust-Resistant Airtight Optical Block Selectable Operational Modes Maintain Image Quality
Dust-Resistant Airtight Optical Block Contrast Sync and Shutter Sync Functions
The PT-RW730LBU Series features contrast and shutter sync functions for multi-screen and mapping applications. Contrast sync allows the projector’s digitally modulated contrast function to be synchronized over the network, for consistent picture quality across screens. Shutter sync incorporates a master/slave principle to synchronize shutter on/off timing between all networked projectors. It includes simultaneous fade-in and fade-out functions.
Multi-Screen Support System Seamlessly Connects Multiple Screens
Dust-Resistant Airtight Optical Block Optimally adjusts multiple screens with edge blending, color matching, and digital image enlargement. With edge blending, edges of adjacent screens can be blended and their luminance controlled. Color matching corrects for slight variations in the color reproduction range of individual projectors. Computer software assures easy, accurate control.
This function automatically corrects brightness and color fluctuations that occur over time in individual projectors in a multi-screen system. Control up to eight projectors connected via hub increasing to a maximum of 2,048 projectors with Multi-Monitoring & Control Software.
Multi-Unit Brightness and Color Control Geo Adjustment adapts the image for projection onto spherical, cylindrical, and other specially shaped screens. Fine-tuning is performed with the remote control, with no external equipment needed. Paired with the Multi-Screen Support System, highly creative mapping presentations are possible in a variety of event and staging applications.
Multi-Unit Brightness and Color Control Single-Cable DIGITAL LINK Control and Video Connection
Multi-Unit Brightness and Color Control Upward HDBaseT compatible DIGITAL LINK supports transmission of uncompressed Full HD video and control commands through a single Cat 5e or later STP cable for distances of up to 492′. Add an optional DIGITAL LINK Switcher or Digital Interface box to further simplify installation in large venues while reducing cost and improving reliability.
Backup Input Setting Optimizes Performance This feature allows smooth switching to a backup input signal should the primary signal be disrupted, guaranteeing reliability for mission-critical control rooms, projection mapping, staging, and in applications where image display must be maintained. Free 360 Rotation
Backup Input Setting Optimizes Performance Projection is possible in any direction vertically and horizontally. The unit can be rotated 360 degrees for installation at any angle.
Backup Input Setting Optimizes Performance Multi-Monitoring & Control Software
Backup Input Setting Optimizes Performance The software offers monitoring and control of up to 2048 devices over a LAN network from a single computer. For monitoring, status for individual devices can be listened to in groups. Control functions include power on/off, input switching, scheduling, and command inputs. Connectivity

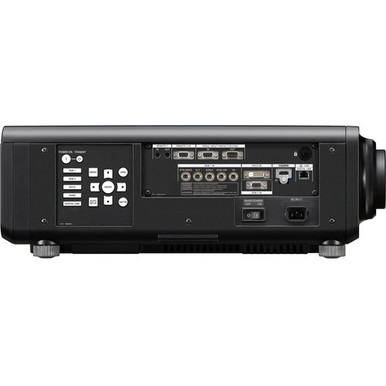

Backup Input Setting Optimizes Performance Connect any source device to the PT-RW730LBU Series via its array of terminals including SDI, DIGITAL LINK, DVI-D, and HDMI. Web Browser Control
Backup Input Setting Optimizes Performance The laser light source doesn’t require any warm-up, so images appear almost instantly (in about one second) with the PT-RW730LBU Series projectors. There is no cool-down period needed when turning the power off at the mains, so the projector can be turned on and off any time as necessary. Additional Features
Quiet Mode to reduce operational noise
Backup Input Setting Optimizes Performance DICOM Simulation mode for easy-to-view X-ray photo reproduction
Backup Input Setting Optimizes Performance Shutter effect with fade in/fade out (configurable in 0.5-second intervals from 0.5 to 4.0 seconds, or to 5-, 7-, or 10-second intervals) PJLink compatibility Picture-in-Picture function Image rotation function
Backup Input Setting Optimizes Performance Long-range 98 wireless remote control
Backup Input Setting Optimizes Performance ID assignment for up to 64 units Built-in test pattern
Backup Input Setting Optimizes Performance Selectable 10-language on-screen menu (English, German, French, Spanish, Italian, Portuguese, Russian, Japanese, Chinese, Korean) RoHS compliant Panasonic RW730LBU Specs Image Display Display System 1-Chip 0.65″ DLP
Backup Input Setting Optimizes Performance Native Chip Resolution 1280 x 800 (WXGA) Supported Resolutions
Backup Input Setting Optimizes Performance Minimum XGA
Backup Input Setting Optimizes Performance Maximum WUXGA Maximum Brightness 7200 Lumens Uniformity 90%
Backup Input Setting Optimizes Performance Aspect Ratio 16:10
Backup Input Setting Optimizes Performance Color Wheel 4-Segment (Y, B, G, R) Features Keystone Correction
Backup Input Setting Optimizes Performance Vertical 40
Backup Input Setting Optimizes Performance Horizontal 15
Supported HDR Input Formats None Multi-Input Support (PIP/PBP) None Ceiling Mountable Yes Rear Screen Projection Yes Built-In Speaker None
1 x HDBaseT (RJ45) Audio, Control, Data, LAN, Remote, Service, Video Input/Output
Input/Output Connectors Inputs/Outputs 1 x 3G-SDI (BNC) Video Input, x DVI-D Video Input, x 5BNC Video Input
1 x HDMI (HDMI Type-A) Audio, Video Input
1 x VGA (DE-15/DB-15) Video Input 1 x 1/8″ / 3.5 mm Mini Remote Input 1 x 1/8″ / 3.5 mm Mini Remote Output 1 x DE-9/DB-9 Control Input 1 x DE-9/DB-9 Control Output 1 x DE-9/DB-9 Remote Input Memory Card Slot None Hardware
Input/Output Connectors Inputs/Outputs Wireless LAN / Wi-Fi None General Light Source Laser Phosphor Expected Lamp Life
Input/Output Connectors Inputs/Outputs Medium Brightness 20,000 Hours
Input/Output Connectors Inputs/Outputs Low Brightness 24,000 Hours
Fan Noise Medium Brightness 36 dB Security Cable Lock Slot Security Bar Supported Languages English French German Italian Japanese Korean Portuguese Russian Spanish Traditional Chinese
Fan Noise AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Consumption Full Brightness 825 W
Power Consumption Medium Brightness 593 W
Power Consumption Low Brightness 508 W
Standby Mode (Lamp Off) 3 W, 0.3 W
Power Consumption Dimensions (W x H x D) 19.6 x 7.9 x 21.2″ / 498.0 x 200.0 x 538.0 mm Without Lens
SKU PT-RW730LBU
Brand Panasonic
MPN PTRW730LBU
GTIN 00885170423916, 885170423916
UPC 885170423916
