Display System 3-Chip 0.76″ LCD
Native Chip Resolution 1920 x 1200 (WUXGA)
Maximum Brightness 7000 Lumens (ISO)
Uniformity 85%
Aspect Ratio Native: 16:10
Dynamic Contrast Ratio 3,000,000:1, 3,000,000:1 Lens Focus Manual Powered Lens
Focus Manual Powered
Lens f/1.7 – 2.3 (f = 26.8 – 45.5 mm)
Lens Shift Horizontal: 35% Vertical: 67%
Optical Zoom Powered:
Throw Distance 4.46 – 78.64′ / 1.36 – 23.97 m
Throw Ratio 1.61 to 2.76:1
Projection Size 40 – 400″ / 101.6 – 1016.0 cm
Keystone Correction Horizontal: 30 Vertical: 25
Multi-Input Support (PIP/PBP) Not Specified by Manufacturer
Ceiling Mountable Yes
Projection Tilt Option Yes
Remote Yes
HDCP Support Version 2.3
Light Source Laser Phosphor
Expected Lamp Life Full Brightness: 20,000 Hours Low Brightness: 24,000 Hours
Fan Noise Full Brightness: 32 dB Low Brightness: 26 dB
Security Cable Lock Slot
AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Consumption Full Brightness: 435 W Medium Brightness: 395 W Low Brightness: 280 W
Operating Temperature 32 to 113 F / 0 to 45 C
Operating Humidity 20 to 80%
Dimensions (W x H x D) 22.1 x 8.8 x 17.3″ / 561.0 x 224.0 x 439.0 mm Including Lens
Weight 41 lb / 18.6 kg
Package Weight 53.2 lb
Box Dimensions (LxWxH) 29.8 x 13.5 x 1.5″

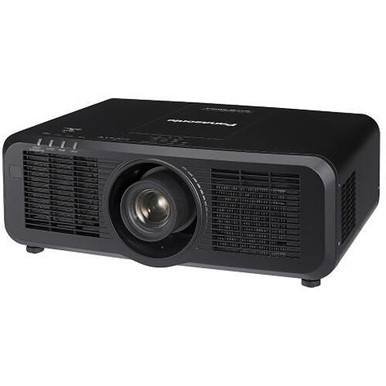

The PT-MZ780 features HDBaseT via DIGITAL LINK, VGA, and three HDMI inputs to connect to nearly any device. The projector is controllable via the included remote control, DIGITAL LINK via Ethernet, or RS-232 with various control software options. Key Features
Brightness of 7000 ISO Lumens WUXGA (1920 x 1200) Native Resolution
Brightness of 7000 ISO Lumens VGA, DIGITAL LINK HDBaseT, 3x HDMI In
Compatible with Various Control Systems Ethernet and RS-232 Controllable IR Remote Control Included
The refined optical engine balances brightness and color for immersive picture quality without dimming the lights. With dynamic optimization adjusting contrast, brightness, and color to suit the environment and content, and the Detail Clarity Processor 4 enhancing definition, images remain visible in well-lit rooms.
Well-Balanced Picture Quality The projector fades from consciousness, with an unobtrusive cabinet and a low operating noise keeps attention focused on the content. Terminals fit infrastructure with 4K-signal ready DIGITAL LINK and three HDMI ports; the HDMI ports also enable auto power-on and playback via CEC from a compatible source device, such as the optional Wireless Presentation System PressIT, which is integrated via the powered USB port.
Bring museum exhibits to life with vivid, flexible LCD laser projection. This projector features the Edge-Blending, Contrast Sync, and Shutter Sync functions and supports some functions of Geo Pro software with Free Grid and an optional ultra-short throw zoom lens. These functions make it easy to edge-blend uniform images into a seamless widescreen museum display.
Flexible Installation in Museums Maintenance extends to up to 20,000 hours, saving time, effort, and waste, while the amount of product packaging is also reduced. Additional Features
Flexible Installation in Museums Works with the Smart Projector Control app Quick start/quick off ECO Management System Multi-screen support system, with Crestron Connected, AMX DD, PJLink, and Art-Net DMX
Flexible Installation in Museums Multi Monitoring & Control Software-compatible with optional Early Warning functions 360 installation
Flexible Installation in Museums Control via separate LAN or DIGIAL LINK terminals Panasonic MZ780 Specs Image Display Display System 3-Chip 0.76″ LCD
Flexible Installation in Museums Native Chip Resolution 1920 x 1200 (WUXGA) Maximum Brightness 7000 Lumens (ISO) Uniformity 85%
Aspect Ratio Native 16:10
Lens Shift Horizontal 35%
Lens Shift Vertical 67% Optical Zoom Powered: Throw Distance
Lens Shift Throw Ratio 1.61 to 2.76:1
Projection Size 40 400″ / 101.6 – 1016.0 cm Features Keystone Correction
Projection Size Horizontal 30
Projection Size Vertical 25
Projection Size Multi-Input Support (PIP/PBP)
Projection Size Projection Tilt Option Yes Remote Yes
1 x HDBaseT (RJ45) Audio, Control, Data, Video Input
3 x HDMI (HDMI Type-A) Audio, Video Input
Input/Output Connectors Inputs/Outputs 1 x VGA (DE-15/DB-15) Video Input
1 x VGA (DE-15/DB-15) Video Output 1 x RS-232 (DE-9/DB-9) Control Input 1 x DE-9/DB-9 Control Output 1 x 1/8″ / 3.5 mm Mini Control Input 1 x DE-9/DB-9 Control Input 1 x 1/8″ / 3.5 mm Mini Audio Input 1 x HDBaseT (1/8″ / 3.5 mm Mini) Audio Output
1 x Ethernet (RJ45) LAN
1 x USB 2.0 (USB Type-A) Power Output HDCP Support Version 2.3 General Light Source Laser Phosphor Expected Lamp Life
Input/Output Connectors Inputs/Outputs Full Brightness 20,000 Hours
Input/Output Connectors Inputs/Outputs Low Brightness 24,000 Hours
Fan Noise Full Brightness 32 dB
Fan Noise Low Brightness 26 dB Security Cable Lock Slot
Fan Noise AC Input Power 100 to 240 VAC, 50 / 60 Hz
Power Consumption Full Brightness 435 W
Power Consumption Medium Brightness 395 W
Power Consumption Low Brightness 280 W
Power Consumption Operating Temperature 32 to 113 F / 0 to 45 C
Power Consumption Operating Humidity 20 to 80%
Power Consumption Dimensions (W x H x D) 22.1 x 8.8 x 17.3″ / 561.0 x 224.0 x 439.0 mm Including Lens Weight 41 lb / 18.6 kg Packaging Info Package Weight 53.2 lb
Power Consumption Box Dimensions (LxWxH) 29.8 x 13.5 x 1.5″
SKU PT-MZ780BU
