• Sharp and bright 8,500 lumens image
• WUXGA native resolution
• 4K UHD HDR (HDMI 2.0) input compatible
• Integrated edge-blending and image warping
• Interchangeable lens options with 24/7, 360° and portrait mode operation
• Robust connectivity, including HDMI, DVI-D, HDBaseT, 3G-SDI
• DuraCore: maintenance-free laser light source up to 30,000 hours (Eco)

HDR-compatible, high brightness interchangeable lens with 4K input for large venues

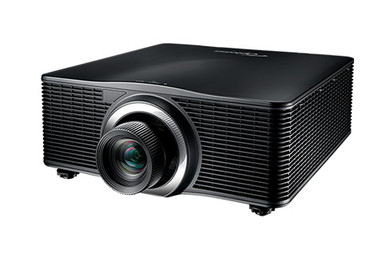

Outfit complex installations with the WUXGA, 8,500 lumens Optoma ProScene ZU860 professional installation projector engineered for large meeting rooms, auditoriums, museums, houses of worship and broadcast environments. Its DuraCore laser light source features an IP5X-certified optical engine for up to 30,000 hours (Eco) of maintenance-free light source life.

Integrated image warping, blending, four corner adjustment and lens position memory simplify complex installations. A variety of premium lens options, motorized lens-shift, zoom and focus with 360° and portrait operation ensure installation flexibility for virtually all needs.

Compatibility with 4K HDR sources enable incredible colors and image details. HDMI 2.0, HDBaseT and 3G-SDI inputs provide connectivity to digital video sources while LAN and RS232 enable control via Crestron, Extron, AMX or Telnet.

Amazing Color

Our projectors are capable of reproducing the Rec.709 color gamut, the international HDTV standard to guarantee accurate reproduction of cinematic color exactly as the director intended.

24/7 Operation

Optoma projectors are engineered to operate 24 hours a day in standard orientation and perfect for applications that require prolonged periods of use (subject to 24-hour terms and conditions – please refer to user manual).

Full Lens Shift

Optoma projectors with full lens shift provide off-axis vertical and horizontal adjustments for complete installation flexibility without image distortion or pixelation.

HDBaseT

Simplify installations by transmitting uncompressed video/audio and control commands using standard shielded CAT6 cabling up to 328 feet (100m).

WUXGA Resolution

Where details really matter, the full WUXGA (1920×1200) resolution offers 15-percent more pixels than 1080p and 60-percent more than SXGA+. This enables unscaled Full HD video and extra detail.

DLP Technology®

DLP® (Digital Light Processing) is a proprietary technology from Texas Instruments™ that offers digital projection with higher contrast, faster response time, good pixel structure and virtually no color degradation.

RS-232 Control

Take control of the projector using HEX or ASCII commands via RS-232 cable.

Eco Friendly

Optoma projectors incorporate energy saving technology and features such as 24-hour automated power scheduling to ensure that projectors power off when not in use to help conserve power and extend the life of the light source.

Dynamic Black Technology

This feature gives more depth to your image by smoothly adjusting the lamp output to create a stunning high contrast ratio. Bright scenes appear crisp and clear, while dark scenes remain detailed with deep blacks and exceptional light and shade detail.

Four Corner Adjustment

Four corner geometric correction enables quick and easy image adjustments from any of the corner points of the image. This is ideal for uneven or angled projection surfaces.

Installation Flexibility

Optoma ProScene projectors with multiple lens options provide a variety of motorized zoom, focus, vertical and horizontal lens shift adjustments to ensure you get the desired image size to help meet the seemingly limitless challenges of ProAV installations.

Specifications

Display/image
Display technology DLP™
Resolution WUXGA (1920×1200)
Brightness 9,600 lumens
ANSI brightness 8,500
Contrast ratio 2,000,000:1
Contrast ratio – dynamic 6,000:1
Contrast ratio – full on/off 2,000:1
Native aspect ratio 16:10
Aspect ratio – compatible 4:3,16:9,16:10
Keystone correction – horizontal +/-20°
Keystone correction – vertical +/-20°
Uniformity 90%
Screen size Dependent on lens

Lamp info
Light source type Laser
LASER life 30,000 hours

Optical
Throw ratio Dependent on lens
Projection distance (m) Dependent on lens
Lens options
BX-CTA16- 0.36 ~ 0.36
BX-CTA17- 0.65~0.75
BX-CTA15- 0.75 ~ 0.95
BX-CTA01- 0.95 ~ 1.22
BX-CTA06- 1.22 ~ 1.53
BX-CTA03- 1.52 ~ 2.92
BX-CTA13- 2.90 ~ 5.50
BX-CTADOME- Dome lens

Connectivity
Connections
Inputs 2 x HDMI, 1 x VGA, 1 x DVI-D, 1 x HDBaseT, 1 x 3D sync, 1 x 3G-SDI
Outputs 1 x VGA, 1 x USB-A, 1 x 3D sync
Control 1 x 12V trigger, 1 x RS232, 1 x Wired remote, 1 x RJ45

General
Noise level (min) 32dB
Noise level (max) 35dB
PC compatibility HD, UXGA, WXGA, SXGA+, SXGA, XGA, SVGA, VGA Resized, VESA, PC and Macintosh Compatible
2D compatibility PAL (625/576i/p), SECAM, NTSC (525/480i/p), HDTV (720p, 1080i/1080p)
3D compatibility Side-by-Side:1080i50 / 60, 720p50 / 60 Frame-pack: 1080p24, 720p50 / 60 Over-Under: 1080p24, 720p50 / 60
3D Full 3D
Security Security bar, Kensington Lock
IP rating IP5X
OSD / display languages 11 languages: Dutch, English, French, German, Indonesian, Italian, Japanese, Portuguese, Russian, Chinese (simplified), Spanish
24/7 operation Yes
360° operation Yes
Operating conditions 5°C~35°C/41°F~95°F, max altitude M/0ft, max humidity 85%
Remote control Wired ProAV remote
Heat dissipation 2,235BTU/hour
In the box AAA Battery, AC power cable 3M, Lens cover, VGA cable 1.8m, User manual CD, Quick start guide
Optional wireless models QuickCast Bundle, QuickCast starter kit

Networking
LAN – control Yes
LAN Yes

Power
Power supply 100 – 240V, 50 – 60Hz
Power consumption (standby) 0.5W
Power consumption (min) 300W
Power consumption (max) 625W

Weight and dimensions
Dimensions (W x D x H) mm 484 x 529 x 195
Gross weight 22.6 kg
Net weight 17.6 kg
